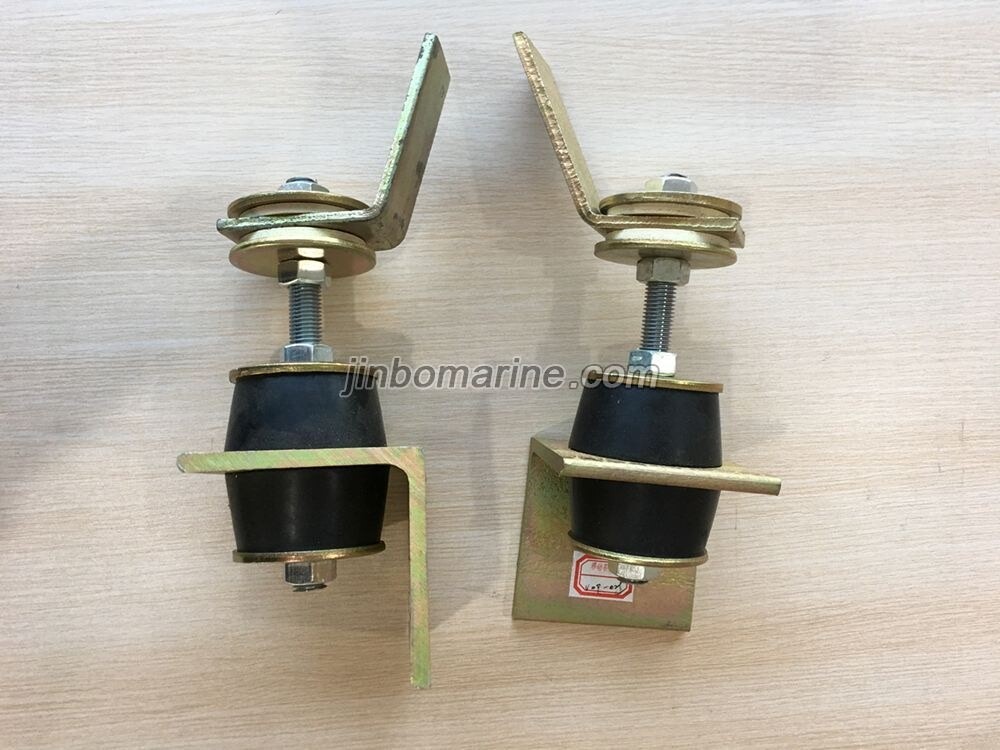

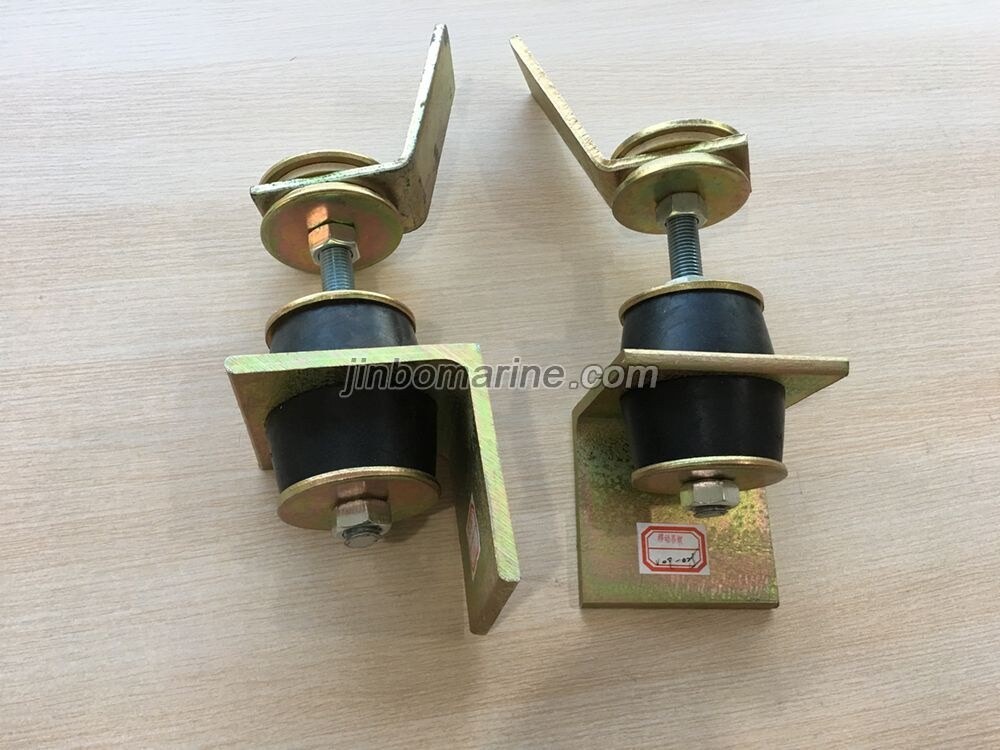

VOP-025 Fixed Suspended Hanger
- Category:Pipe Fitting
- Delivery Time:3 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China VOP-025 Fixed Suspended Hanger:
The elastic elements is made by spcial type rubber, it has fine vibration resistance and impact resistance,and it has the following advantage,high temperature resistance,low temperature resistance,oil resistance and aging resistance.
The support adopts the insulating cushion so it can receive high load and the higher temperature. Applicable Range:Suitable for vertical and horizontal exhaust pipe.

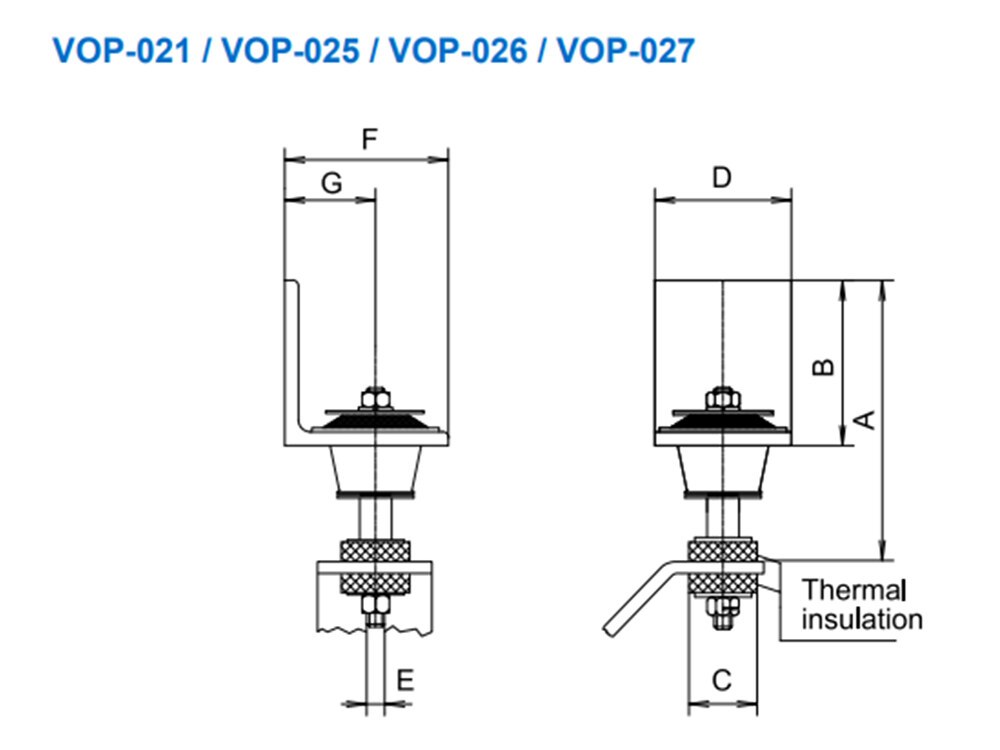

Size:
| Type | Dimension(mm) |
Maximum Load (60°sh.) |
||||||
| A | B | C | D | E | F | G | ||
| VOP-021 | 145 | 70 | 40 | 90 | M10 | 70 | 40 | 85kg |
| VOP-025 | 200 | 100 | 60 | 120 | M16 | 100 | 60 | 180kg |
| VOP-026 | 220 | 120 | 60 | 120 | M16 | 120 | 70 | 300kg |
| VOP-027 | 230 | 130 | 60 | 130 | M16 | 130 | 75 | 700kg |
