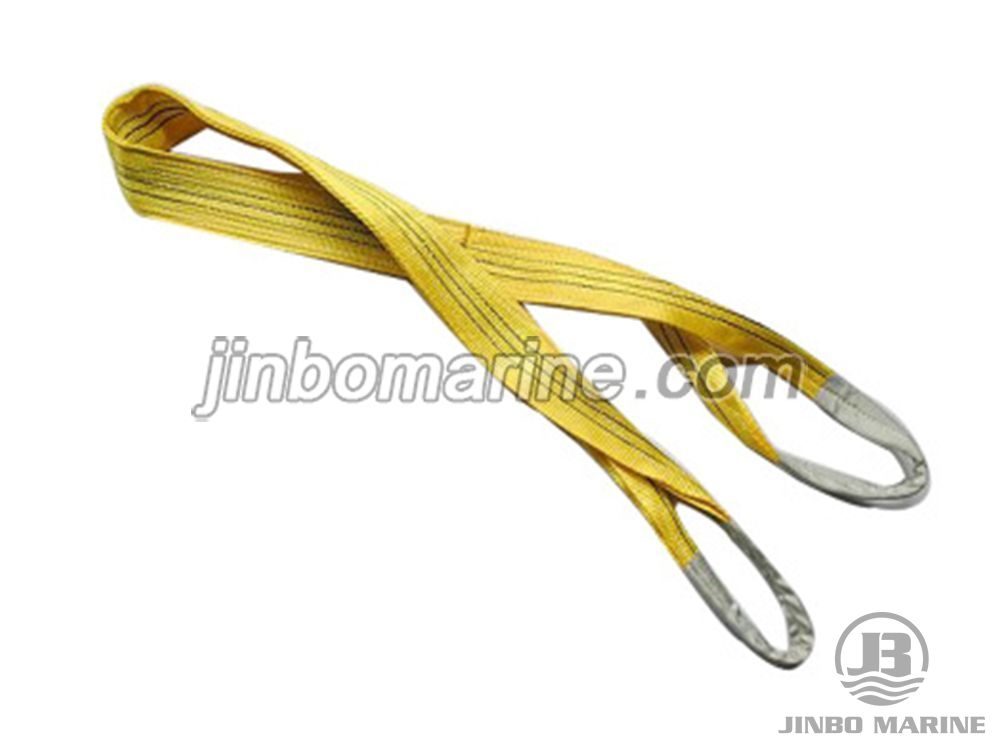

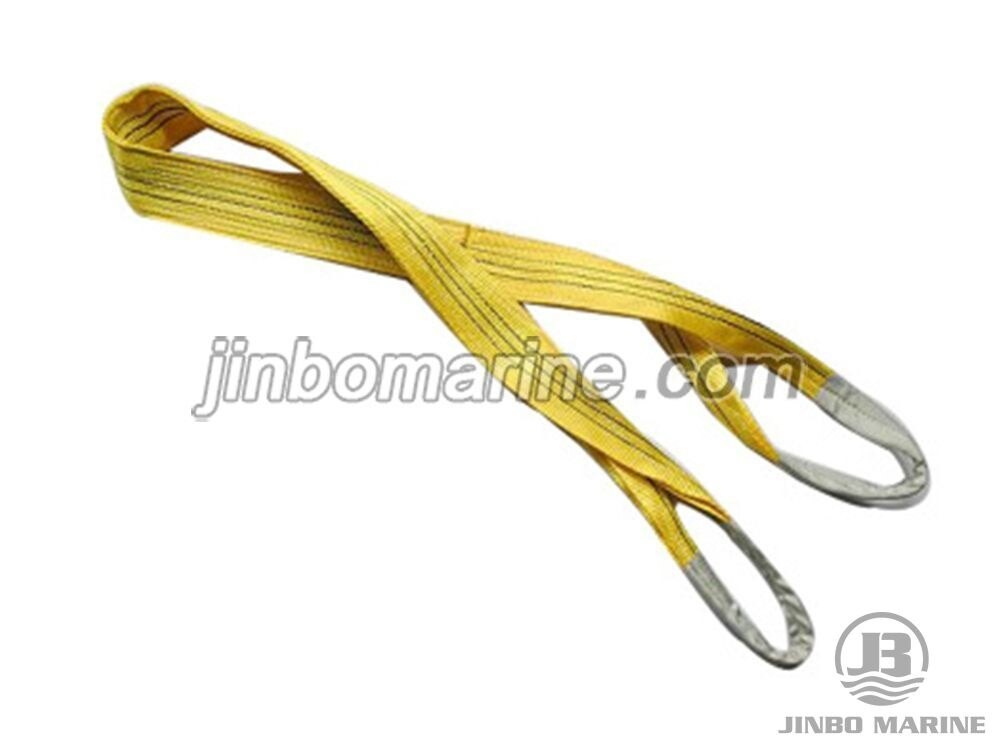

W02 Heavy Eye Type Flat Sling

  • Category:Chain Sling
  • Material:Cotton, nylon, synthetic fiber, polyester fiber
  • Standards:JB/T8521.1-2007
  • Certificate:CNAS, API, CCS, DNV.GL, KR, BV, CE, PCT.GOST, JIS, GS
  • Packing Details:Carton and composite pallet
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

Conventional hoisting belt (synthetic fiber hoisting belt), generally made of high-strength polyester filament, with high strength, wear resistance, oxidation resistance, anti-ultraviolet and other advantages, while soft texture, non-conductive, non-corrosive (no harm to the human body), is widely used in various fields. There are many kinds of hoisting belts (according to the appearance of hoisting belts) which can be divided into four categories: circular core-piercing, circular flat, binocular core-piercing, binocular flat.

Performance:

Strength: flat hoisting belt 1T-30T round hoisting belt 1T-300T
Bandwidth: 25mm-250mm
Elastic elongation: 2%-3% under rated load <10% limit working force
Load identification: In the course of use, the label on the sling can be worn out and the bearing tonnage can be identified by the color of the sling jacket.
Working temperature: -40~100 C safety factor: 5:1 6:1 7:1

Advantage:

1, light weight and easy to use.
2, do not damage the surface of suspended objects;
3. Lifting is stable and safe.
4, high strength, can judge tonnage according to color.
5, improve labor efficiency and save costs.
6, corrosion resistance, good wear resistance;
7. It is widely used in port, wharf, chemical industry, steel, machinery, installation and other lifting places.

Data sheet:

Art.No. Working Load Limit(kg) Approx Width(mm) Minimum Length
(m)
Eye Length(mm)
5、6:1 7:01
W02-02 2000 25 30 1.5 350
W02-04 4000 50 60 1.5 400
W02-06 6000 75 90 1.5 450
W02-08 8000 100 120 2 500
W02-10 10000 125 150 2 550
W02-12 12000 150 180 3 600
W02-16 16000 200 240 3 700
W02-20 20000 250 300 3 800
W02-24 24000 300 300 3 900
