Water Cooling Marine Air Compressor SHC-55A
- Category:Medium Pressure Water Cooled Marine Air Compressor
- Certificate:CCS certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

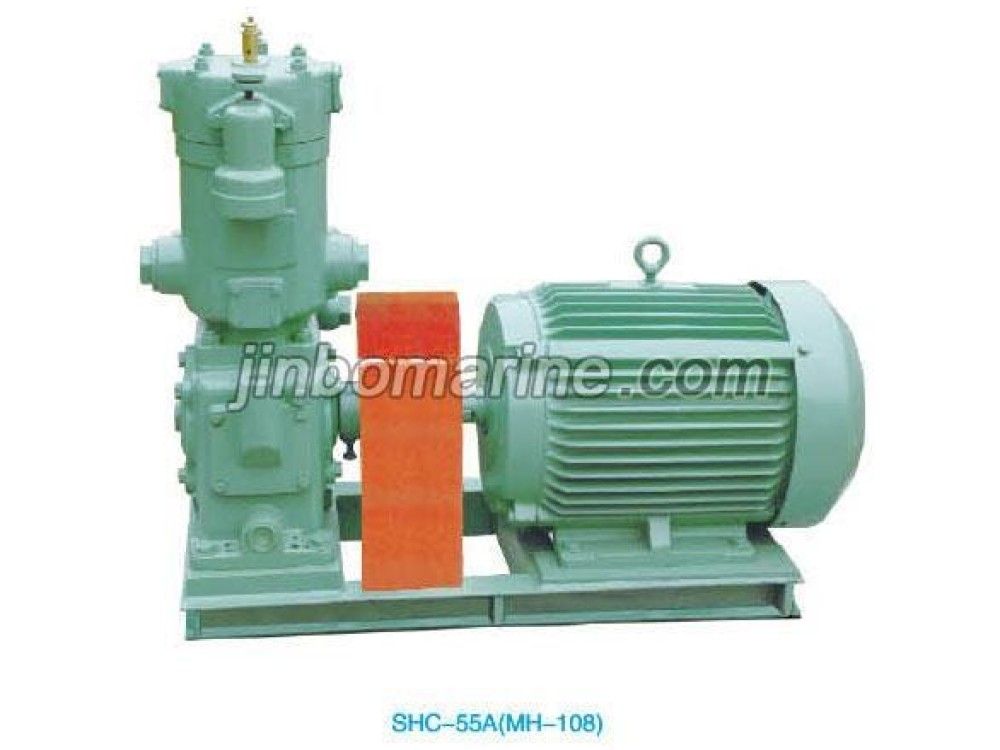

China Water Cooling Marine Air Compressor SHC-55A:
Vertical type.
Water cooling.
Second stage compression.
Piston type.
Suitable for Air bottle equal or smaller than 0.5 m3 to 1 m3.
Feature
High Efficiency,energy saving,low noise.
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size |
| m3/h | Mpa | r/min | KW | Kg | mm | ||
| SCH-55A |
Vertical type. Water cooling. Second stage compression. Piston type. |
32 | 3 | 730 | 11 | 310 | 1200x680x1050 |
| 40 (440V) | 870 | 15 | 330 | ||||
| 50 | 960 | 15 | 330 |
