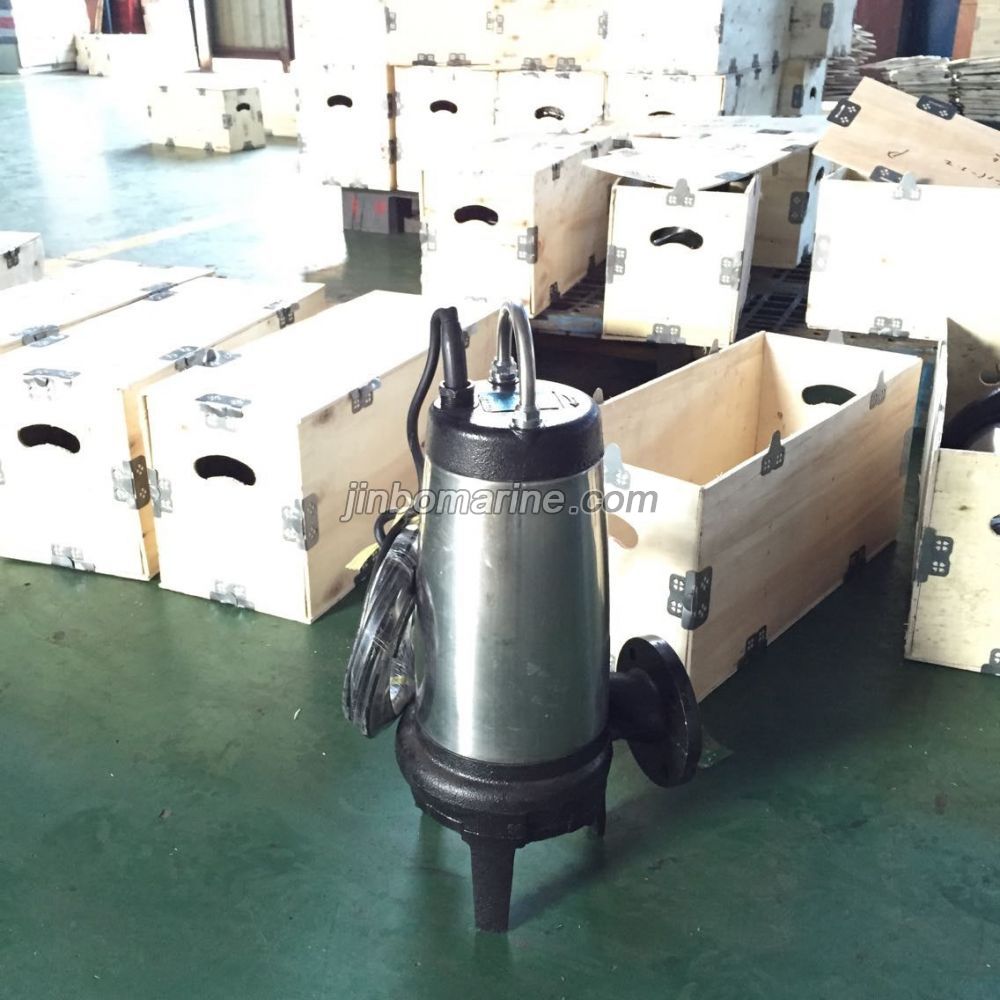

WQ (D) cutting submersible pump
- Category:Sewage Pump
- Material:Stainless steel
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

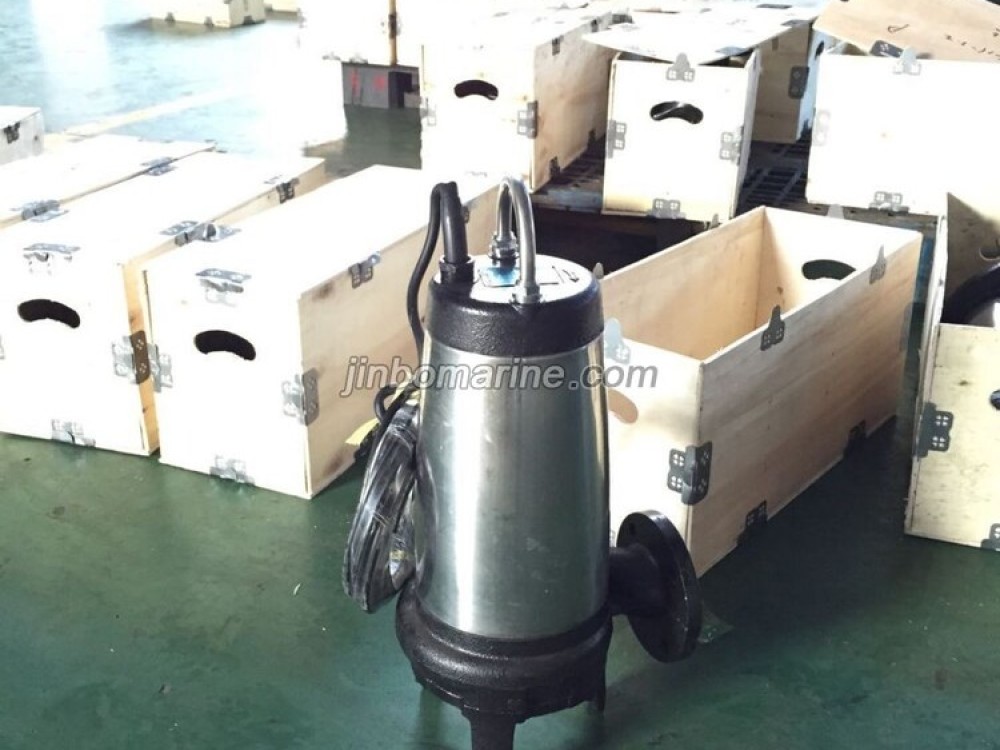

WQ (D) cutting submersible pump
Application
Severely polluted waste water of factories, residence, hospitals, hotels, municipal works, marsh gas tanks in countryside, dredging of river and sea.
Features
With casing of stainless steel precision casting, it is corrosion-resistant, environment-friendly, durable, high in head and large in flow rate. It uses motor of F insulation grade. On the base of this style, the pump can be installed with automatic agitator device, which rotates with shaft of motor, produces very strong agitation force, inhale sediments in the sump after mixes blend to become session to the pump then eject it. Pump more than 11kw could be with double-protection function.
Technical parameter
|
Model |
Capacity (m3/h) |
Head (m) |
Power (KW) |
Voltage (V) |
Outlet Diameter(mm) |
|
50WQ10-10-0.75S |
10 |
10 |
0.75 |
220/380 |
50 |
|
50WQ15-10-1.1S |
15 |
10 |
1.1 |
220/380 |
50 |
|
50WQ-15-12-1.5S |
15 |
12 |
1.5 |
220/380 |
50 |
|
50WQ15-20-2.2S |
15 |
20 |
2.2 |
380 |
50 |
|
65WQ25-15-2.2S |
25 |
15 |
2.2 |
380 |
65 |
|
80WQ40-9-2.2S |
40 |
9 |
2.2 |
380 |
80 |
|
100WQ50-7-2.2S |
50 |
7 |
2.2 |
380 |
100 |
|
50WQ15-25-3S |
15 |
25 |
3 |
380 |
50 |
|
80WQ40-15-3S |
40 |
15 |
3 |
380 |
80 |
|
100WQ50-10-3S |
50 |
10 |
3 |
380 |
100 |
|
50WQ15-32-4S |
15 |
32 |
4 |
380 |
50 |
|
65WQ25-25-4S |
25 |
25 |
4 |
380 |
65 |
|
80WQ40-18-4S |
40 |
18 |
4 |
380 |
80 |
|
100WQ50-15-4S |
50 |
15 |
4 |
380 |
100 |
|
50WQ20-32-5.5S |
20 |
32 |
5.5 |
380 |
50 |
|
65WQ30-25-5.5S |
30 |
25 |
5.5 |
380 |
65 |
|
80WQ50-18-5.5S |
50 |
18 |
5.5 |
380 |
80 |
|
100WQ80-10-5.5S |
80 |
10 |
5.5 |
380 |
100 |
|
150WQ100-7.5-5.5S |
100 |
7.5 |
5.5 |
380 |
150 |
|
50WQ20-40-7.5S |
20 |
40 |
7.5 |
380 |
50 |
|
65WQ30-32-7.5S |
30 |
32 |
7.5 |
380 |
65 |
|
80WQ45-22-7.5S |
45 |
22 |
7.5 |
380 |
80 |
|
100WQ80-15-7.5S |
80 |
15 |
7.5 |
380 |
100 |
|
150WQ100-10-7.5S |
100 |
10 |
7.5 |
380 |
150 |
|
150WQ-140-7-7.5S |
140 |
7 |
7.5 |
380 |
150 |
|
50WQ25-50-11S |
25 |
50 |
11 |
380 |
50 |
|
80WQ50-32-11S |
50 |
32 |
11 |
380 |
80 |
|
100WQ100-20-11S |
100 |
20 |
11 |
380 |
100 |
|
150WQ150-12-11S |
150 |
12 |
11 |
380 |
150 |
|
200WQ200-10-11S |
200 |
10 |
11 |
380 |
200 |
|
50WQ25-55-15S |
25 |
55 |
15 |
380 |
50 |
|
80WQ70-30-15S |
70 |
30 |
15 |
380 |
80 |
|
100WQ100-25-15S |
100 |
25 |
15 |
380 |
100 |
|
150WQ150-15-15S |
150 |
15 |
15 |
380 |
150 |
|
200WQ200-12-15S |
200 |
12 |
15 |
380 |
200 |
|
50WQ25-60-18.5S |
25 |
60 |
18.5 |
380 |
50 |
|
80WQ70-35-18.5S |
70 |
35 |
18.5 |
380 |
80 |
|
100WQ100-30-18.5S |
100 |
30 |
18.5 |
380 |
100 |
|
150WQ150-20-18.5S |
150 |
20 |
18.5 |
380 |
150 |
|
200WQ200-15-18.5S |
200 |
15 |
18.5 |
380 |
200 |
|
50WQ25-65-22S |
25 |
65 |
22 |
380 |
50 |
|
80WQ70-40-22S |
70 |
40 |
22 |
380 |
80 |
|
100WQ100-35-22S |
100 |
35 |
22 |
380 |
100 |
|
150WQ150-25-22S |
150 |
25 |
22 |
380 |
150 |
|
200WQ200-22-22S |
200 |
22 |
22 |
380 |
200 |
|
300WQ400-10-22S |
400 |
10 |
22 |
380 |
300 |
