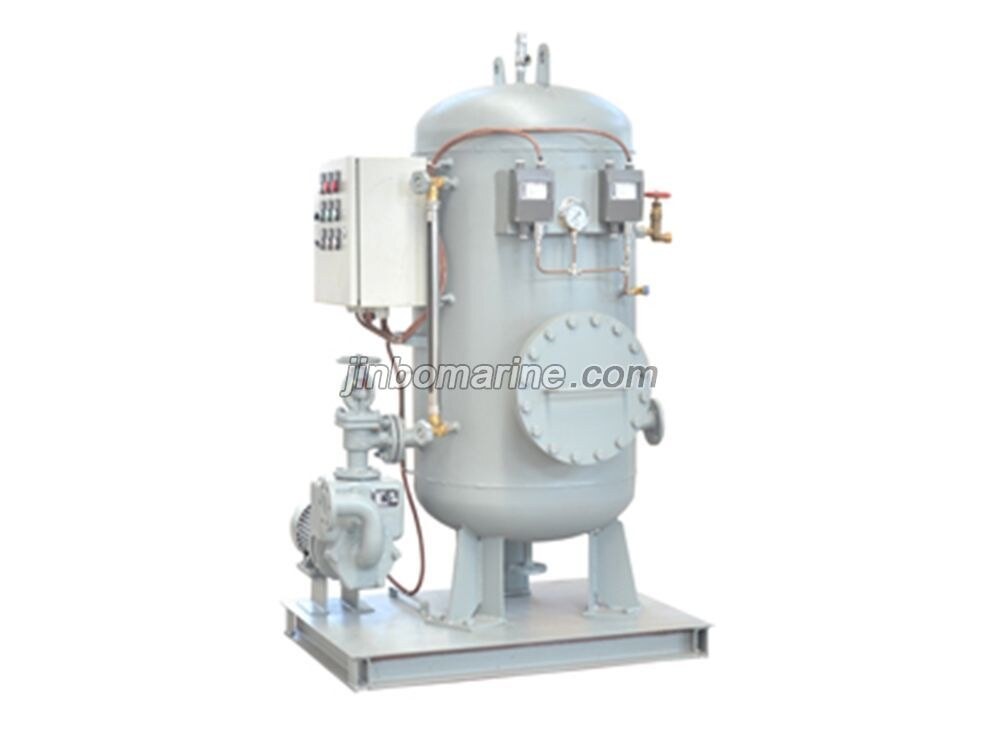

ZYG-0.3 Sea Water Hydrophore tank
- Category:Pressure Water Tank
- Material:Marine Steel & SS304
- Certificate:CCS
- Packing Details:Standard Export Packaging
- Supply Ability:15 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps; pressure switch, electric control box and hydrophone are installed together. It is compact and beautiful appearance, easy to install and maintain, and it is an ideal unit for water supply system.

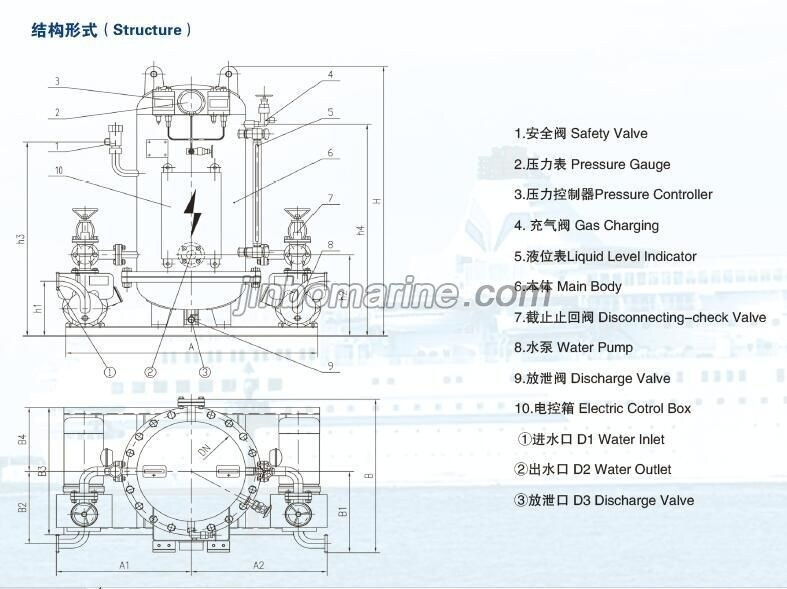

Structure:
Technical data:
| Model | ZYG- | |||||||
| 0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | ||
| Volume(m3) | 0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | |
| Working pressure(MPa) | 0.4 | |||||||
| Design pressure(MPa) | 0.44 | |||||||
| Test pressure(MPa) | 0.66 | |||||||
|
Take-off
pressure of safety valve(MPa) |
0.42 | |||||||
| Working temperature | 0~45℃ | |||||||
| Design temperature | 50℃ | |||||||
| Water pump | Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | ||||
| Flow rate(m3/h) | 3 | 6.5 | 10 | |||||
| Pumping head (m) | 40 | 40 | 40 | |||||
| Power (kW) | 2.2 | 3 | 4 | |||||
| Weight (kg) | 280 | 320 | 360 | 420 | 450 | 550 | 620 | |
| DN | 400 | 500 | 600 | 700 | 900 | 1000 | 1200 | |
| A | 1080 | 1190 | 1316 | 1424 | 1595 | 1716 | 1898 | |
| A1 | 580 | 630 | 694 | 745 | 799 | 859 | 950 | |
| A2 | ||||||||
| B | 731 | 781 | 921 | 1061 | 1248 | 1363 | 1540 | |
| B1 | 414 | |||||||
| B2 | 368 | |||||||
| B3 | 545 | 648 | 750 | 710 | 910 | 1012 | 1212 | |
| B4 | 272 | 325 | 375 | 355 | 455 | 506 | 606 | |
| h1 | 280 | 280 | 370 | 405 | 370 | 450 | 575 | |
| h2 | 415 | 415 | 462 | 506 | 495 | 605 | 686 | |
| h3 | 888 | 988 | 1045 | 1295 | 1490 | 1758 | 1682 | |
| h4 | 978 | 1098 | 1135 | 1385 | 1580 | 1935 | 1858 | |
| H | 1282 | 1380 | 1455 | 1810 | 2060 | 2493 | 2470 | |
| D1 | DN40 | |||||||
| D2 | DN40 | |||||||
| D3 | 3/4" | 1" | ||||||
