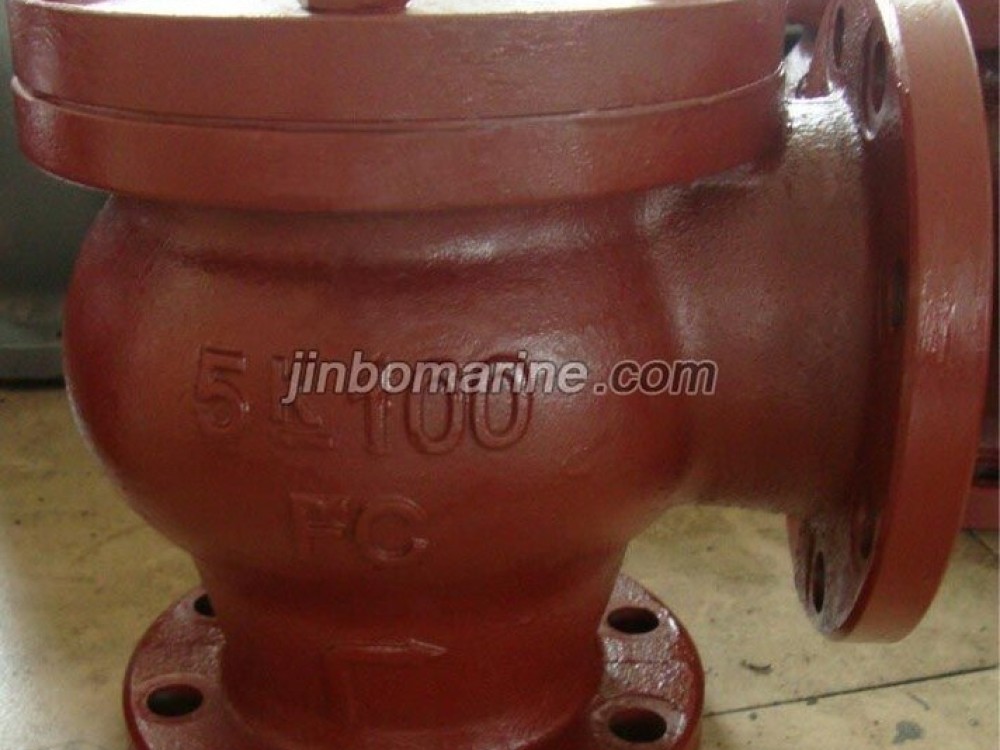

Marine Cast Iron Lift Check Angle Valve JIS F7359 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Lift Check Angle Valve JIS F7359 5K:

Design Standard: JIS F7359-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa~0.4Mpa

Flange size as per JIS B2220 - 5K

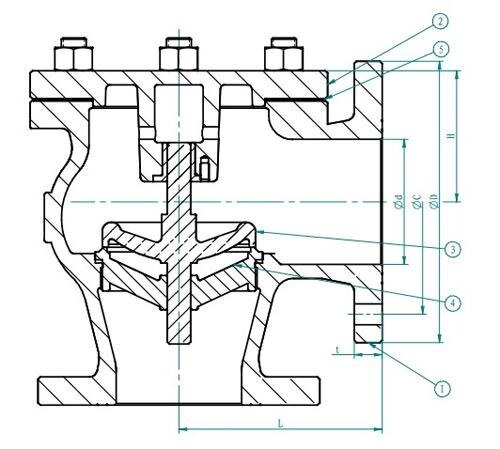

Main Material:

1-Body: Cast Iron (FC200)

2-Bonnet: Cast Iron (FC200)

3-Disc: Bronze (BC6)

4-Seat: Bronze (BC6)

5-Gasket: non-asbestos

Main Size List(mm):

IMPA CODE DN L D C No of Bolt Hole Bolt Hole Diameter t H
751321 50 100 130 105 4 15 16 77
751322 65 115 155 130 4 15 18 81
751323 80 130 180 145 4 19 18 84
751324 100 150 200 165 8 19 20 96
751325 125 170 235 200 8 19 20 108
751326 50 190 265 230 8 19 22 125
751327 200 220 320 280 8 23 24 157
