0.5CWF-10(B)Marine crushing pump
- Category:Sewage Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

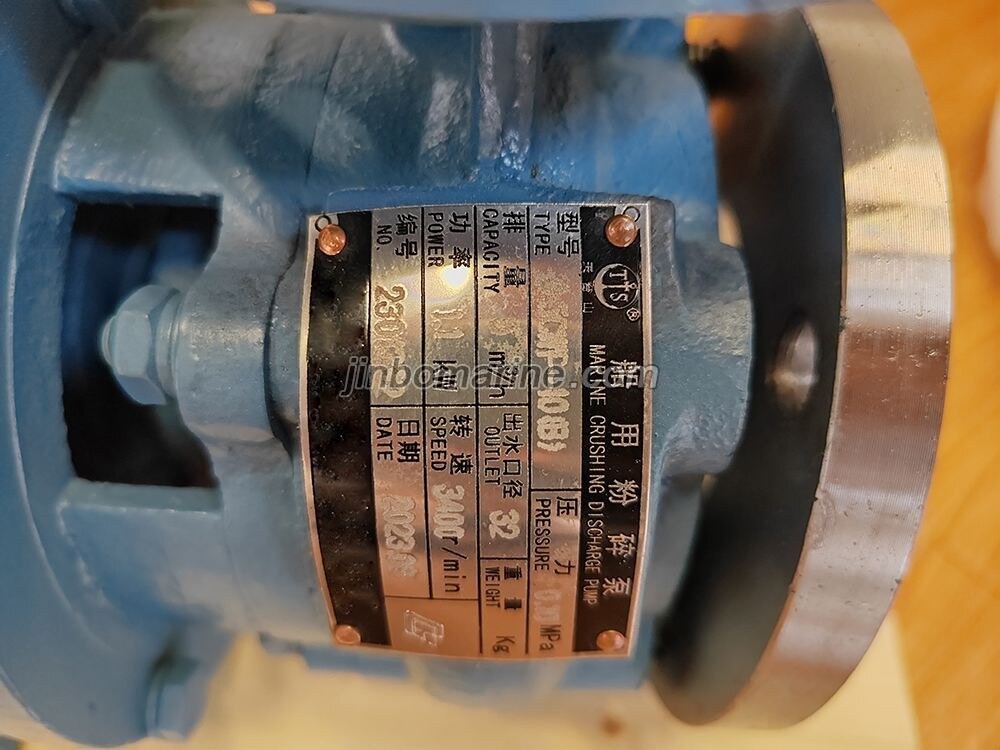

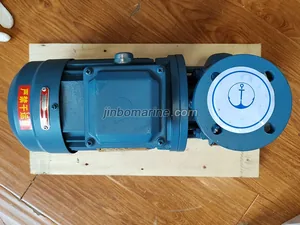

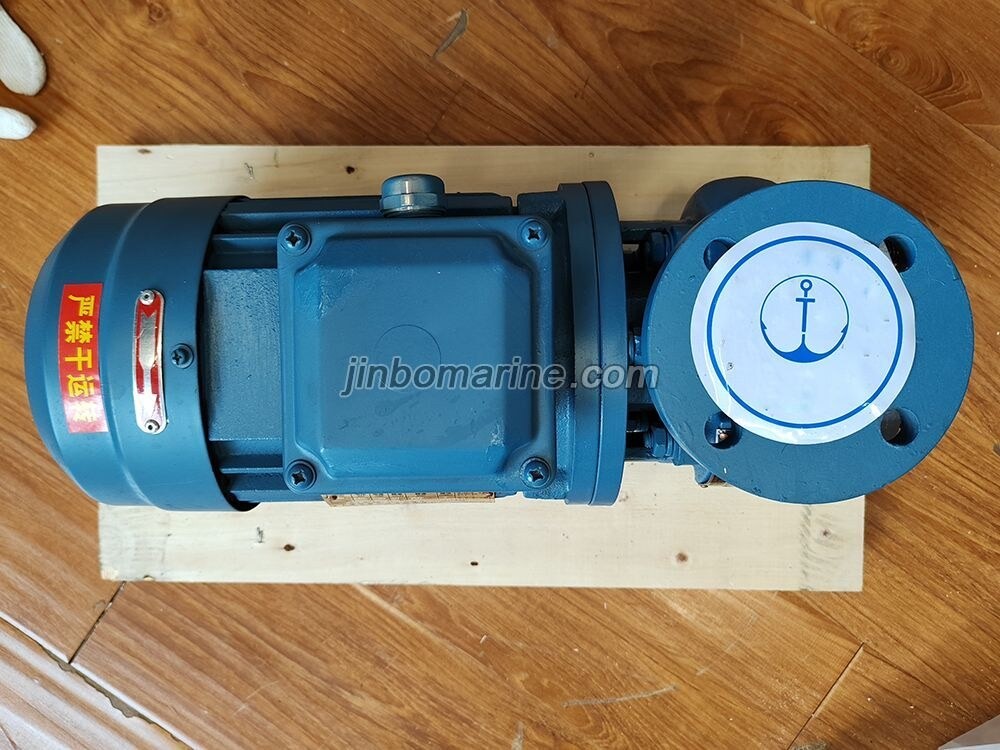

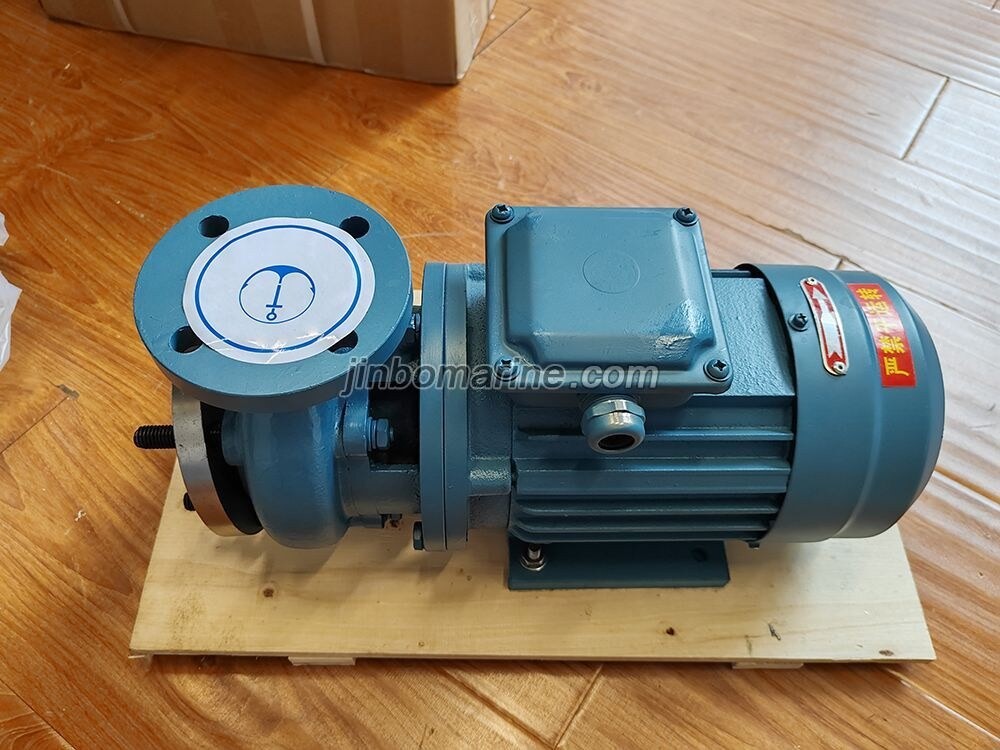

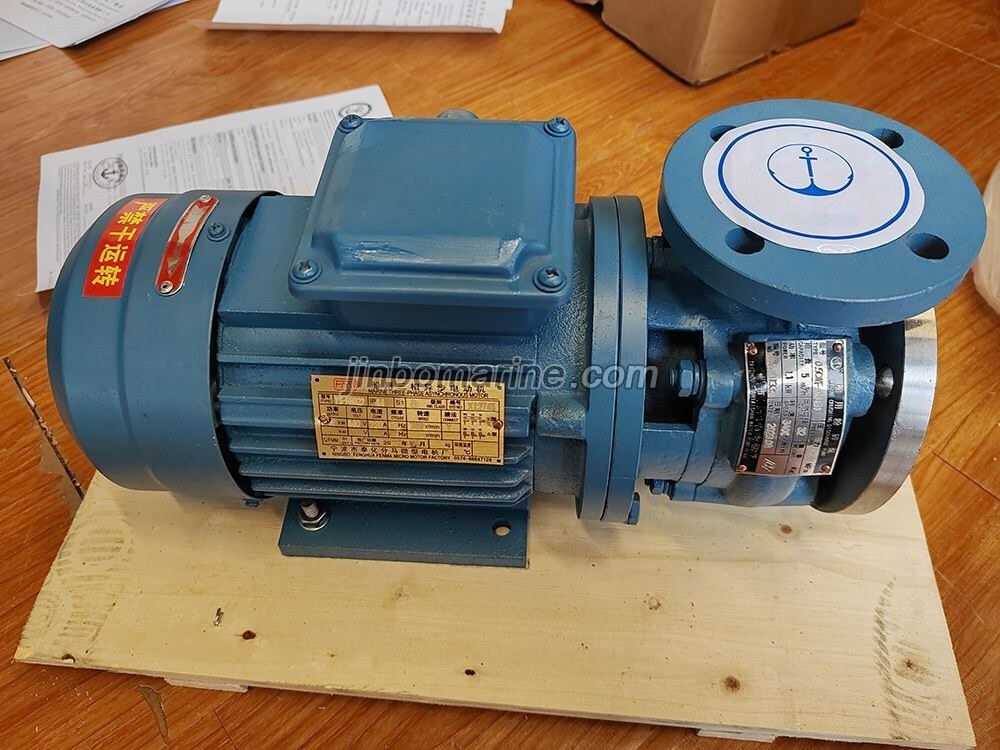

0.5CWF-10(B)Marine crushing pump
CWF series marine pulverizing pump is the open impeller cenfrifugal dischargepump,which is used to pulverize and transfer the soft foul in the anitary sewageunder 85℃.The maximum diameter of solid particle after circular pulverizingis within 5mm.It is also applicable to pulverize the coagulate of heavy oil underlow temperature,in order to facilitate injection.
Techincal data:
|
Model |
Flow |
Pressure |
Motor Power |
Speed |
Out let DN |
Inlet DN |
|
0.5CWF-6(B) |
5 |
0.06 |
0.75 |
2820 |
32 |
50 |
|
0.5CWF-10(B) |
5 |
0.10 |
1.1 |
2820 |
32 |
50 |
|
0.5CWF-15(B) |
5 |
0.15 |
1.1 |
2820 |
32 |
50 |
|
0.5CWF-20(B) |
5 |
0.20 |
1.5 |
2840 |
32 |
50 |
|
0.5CWF-30(B) |
5 |
0.30 |
3.0 |
2880 |
32 |
50 |
|
1CWF-11(B) |
10 |
0.11 |
1.5 |
2840 |
40 |
65 |
|
1CWF-20(B) |
10 |
0.20 |
3.0 |
2880 |
40 |
65 |
|
1CWF-30(B) |
10 |
0.30 |
4.0 |
2900 |
40 |
65 |
|
2CWF-11(B) |
20 |
0.11 |
2.2 |
2840 |
50 |
65 |
|
2CWF-20(B) |
20 |
0.20 |
3.0 |
2890 |
50 |
65 |
|
2CWF-30(B) |
20 |
0.30 |
5.5 |
2900 |
50 |
65 |
|
3CWF-10(B) |
30 |
0.10 |
4.0 |
2890 |
65 |
80 |
