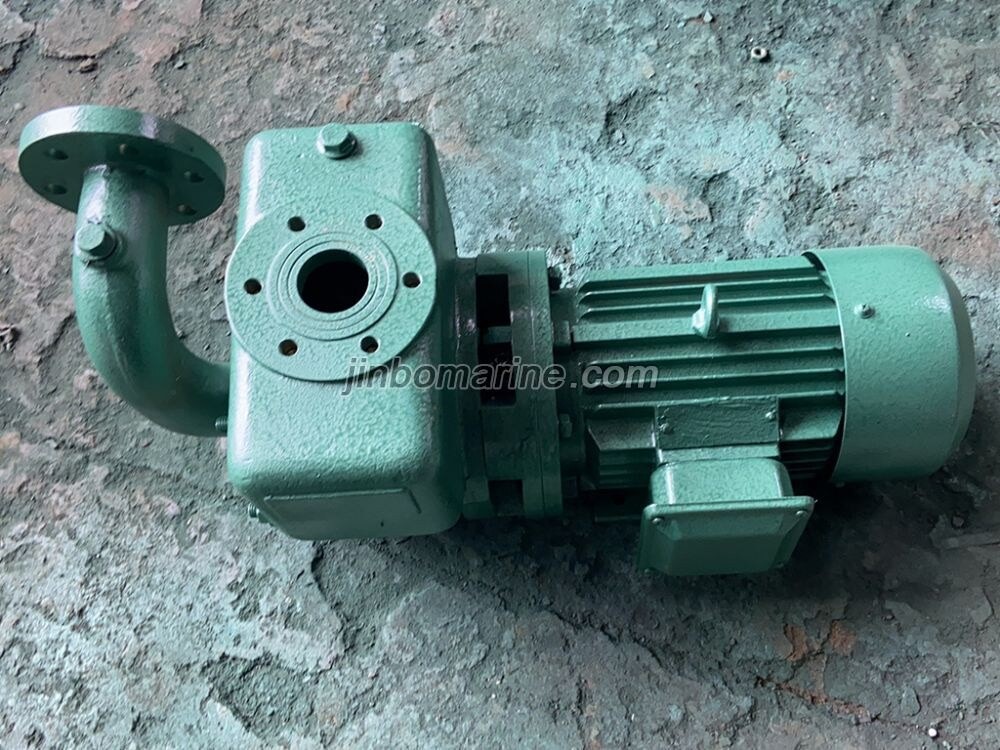

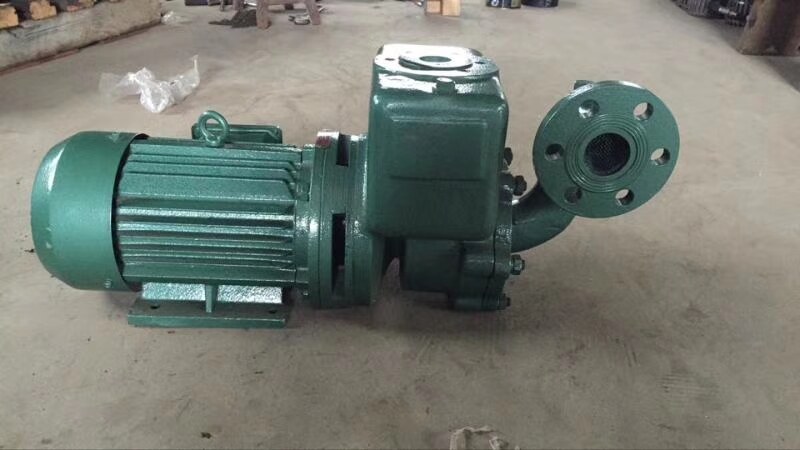

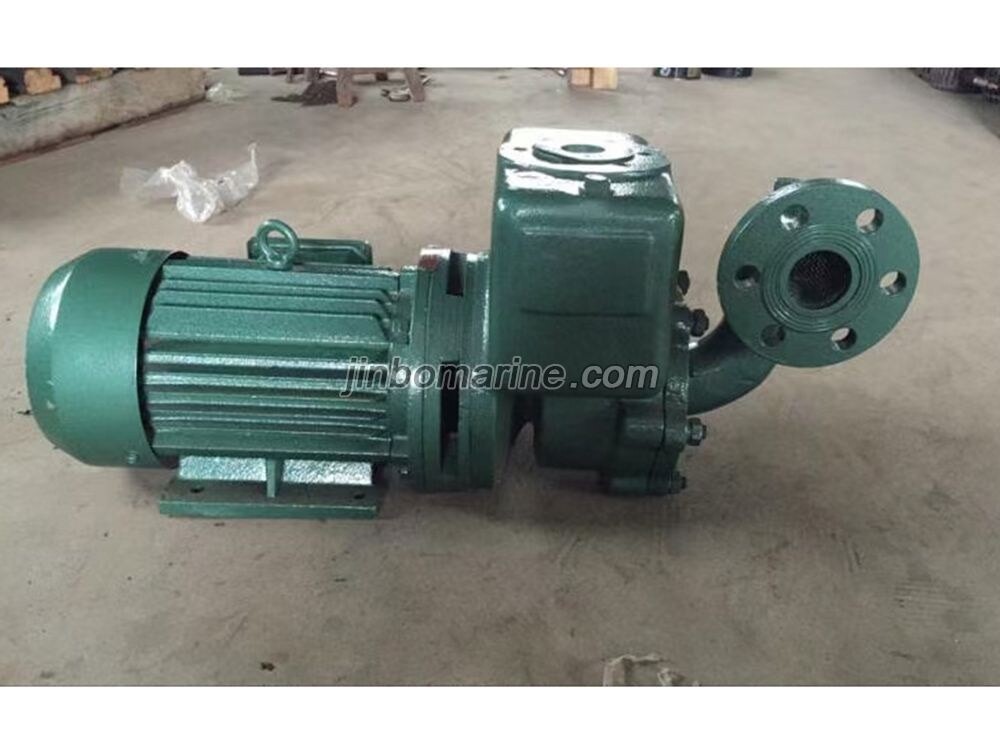

1.5CWX-2 Series Self-Priming Vortex Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

1.5CWX-2 Vortex pump for ship installations heart pumping water, washing and sanitation used in freshwater and seawater

Technical data:

Model Capacity
m3/h 		Head
n 		Speed
r/min 		NPSH
M 		Suction head
m 		Shaft power Efficiency
% 		Motor power
kw 		Wight
kg
1.5CWX-2 3 40 2900 4 6 2 16.3 2.2 45
1.5CWX-3 6.5 35 2900 4 6 2.3 26.9 3 50
1.5CWX-4 10 35 2900 4 6 2.5 38.1 4 65
1.5CWX-2A 3 40 2900 4 6 2 16.8 2.2 63
1.5CWX-3A 6.5 35 2900 4 6 2.3 26.9 3 68
1.5CWX-4A 10 35 2900 4 6 2.5 38.1 4 84

Perfrrmance parameters in case of power supply freguency of 60Hz, 3P. 440V:

Model Capacity
m3/h 		Head
n 		Speed
r/min 		NPSH
M 		Suction head
m 		Shaft power Efficiency
% 		Motor power
kw 		Wight
kg
1.5CWX-2 3.6 57 3500 4.5 5.2 3.43 16.3 4 65
1.5CWX-3 7.8 50 3500 4.5 5.2 3.95 26.9 5.5 82
1.5CWX-4 12 50 3500 4.5 5.2 4.29 38.1 5.5 86
1.5CWX-2A 3.6 57 3500 4.5 5.2 3.43 16.8 4 83
1.5CWX-3A 7.8 50 3500 4.5 5.2 3.95 26.9 5.5 100
1.5CWX-4A 12 50 3500 4.5 5.2 4.29 38.1 5.5 105

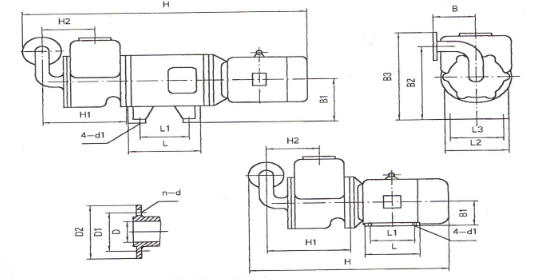

Overall dimension

Model H H1 H2 L L1 L2 L3
1.5CWX-2 605 260 150 155 125 180 140
1.5CWX-3 640 180 550 245 190
1.5CWX-4 660 580
1.5CWX-2A 925 310 234 180 140
1.5CWX-3A 970
1.5CWX-4A 990
Model B B1 B2 B3 d1 D D1 D2 n-d
1.5CWX-2 130 90 230 295 φ12 40 93 125 6-φ15/M12
1.5CWX-3 100 240 302
1.5CWX-4 112 252 315 φ15
1.5CWX-2A 180 320 385 φ18
1.5CWX-3A
1.5CWX-4A
