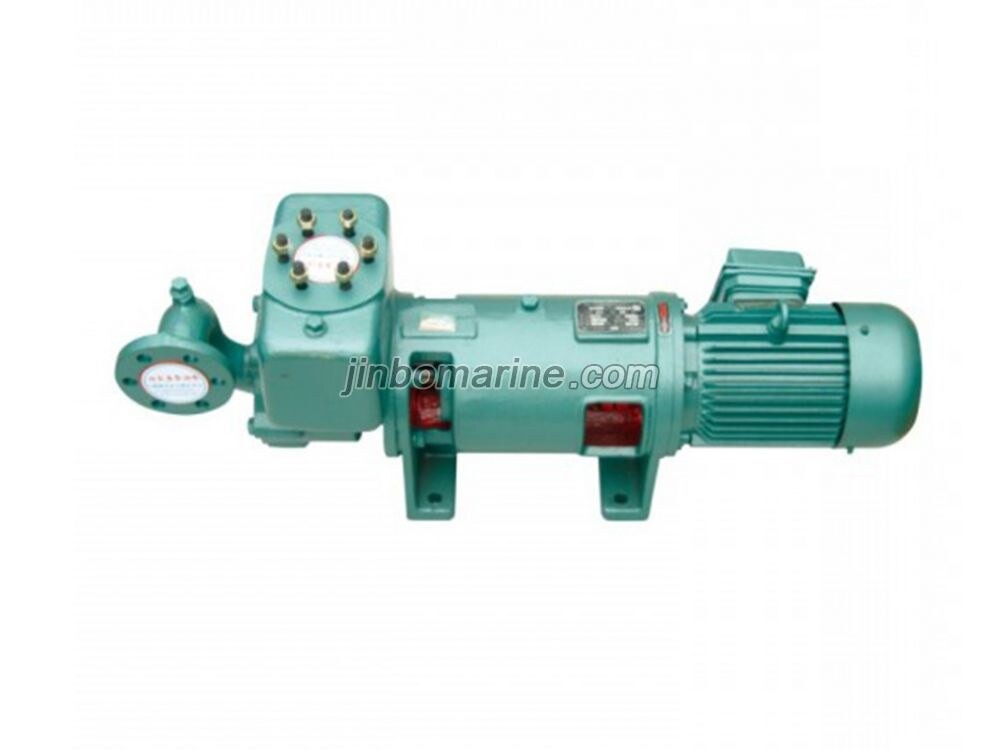

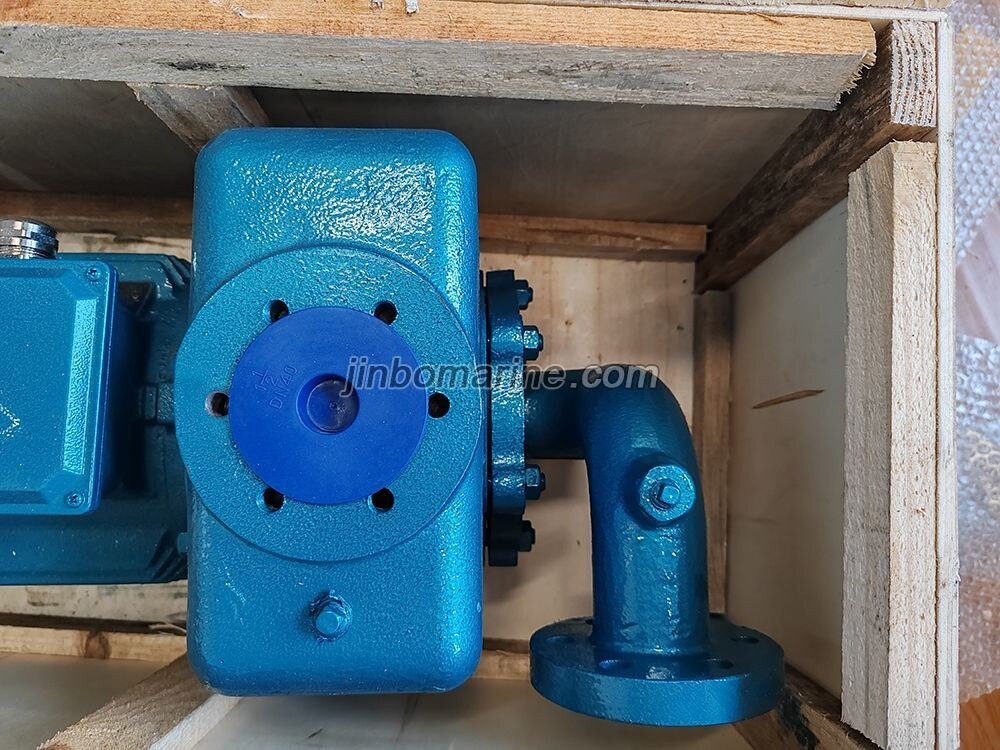

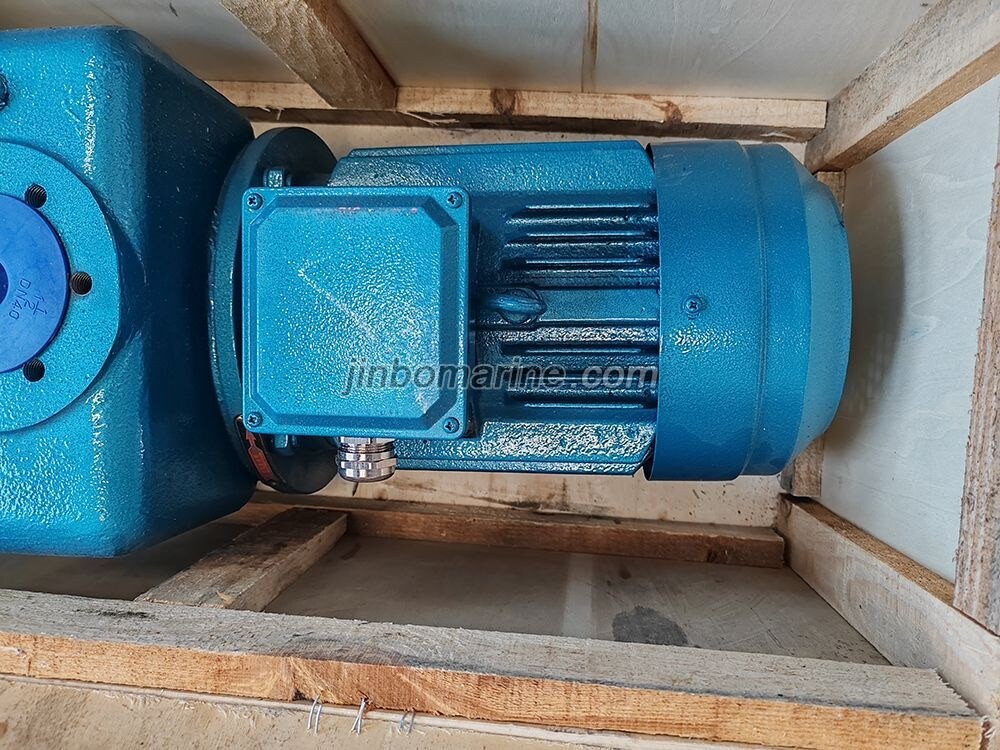

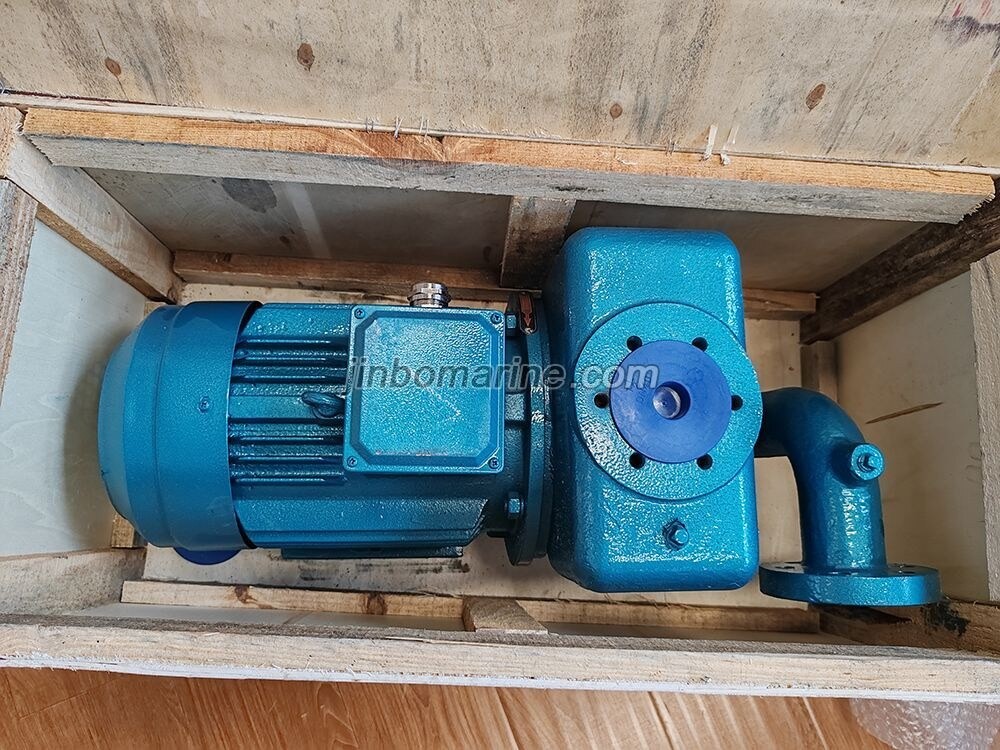

1.5CWX-4A Bracket Series Self-Priming Vortex Pump
- Category:Vortex Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:
1.5CWX-4A Vortex pump for ship installations heart pumping water, washing and sanitation used in freshwater and seawater。
Performance characteristics of CWX marine self-priming vortex pump
(1) The characteristics of small volume and light weight of vortex pump have great advantages in marine equipment.
(2) It has self-priming ability or is realized by means of a simple device.
(3) It has a steep drop head characteristic curve, so it is not sensitive to pressure fluctuation in the system.
(4) Some vortex pumps can realize vapor-liquid mixed transportation. This is of great significance for pumping volatile liquid containing gas and high-temperature liquid with high vaporization pressure.
(5) The vortex pump has simple structure and easy casting and processing technology. Some vortex pump parts can also use non-metallic materials, such as plastic, nylon molded impeller, etc.
Technical data:
| Model |
Capacity m3/h |
Head n |
Speed r/min |
NPSH M |
Suction head m |
Shaft power |
Efficiency % |
Motor power kw |
Wight kg |
| 1.5CWX-2 | 3 | 40 | 2900 | 4 | 6 | 2 | 16.3 | 2.2 | 45 |
| 1.5CWX-3 | 6.5 | 35 | 2900 | 4 | 6 | 2.3 | 26.9 | 3 | 50 |
| 1.5CWX-4 | 10 | 35 | 2900 | 4 | 6 | 2.5 | 38.1 | 4 | 65 |
| 1.5CWX-2A | 3 | 40 | 2900 | 4 | 6 | 2 | 16.8 | 2.2 | 63 |
| 1.5CWX-3A | 6.5 | 35 | 2900 | 4 | 6 | 2.3 | 26.9 | 3 | 68 |
| 1.5CWX-4A | 10 | 35 | 2900 | 4 | 6 | 2.5 | 38.1 | 4 | 84 |
Perfrrmance parameters in case of power supply freguency of 60Hz, 3P. 440V:
| Model |
Capacity m3/h |
Head n |
Speed r/min |
NPSH M |
Suction head m |
Shaft power |
Efficiency % |
Motor power kw |
Wight kg |
| 1.5CWX-2 | 3.6 | 57 | 3500 | 4.5 | 5.2 | 3.43 | 16.3 | 4 | 65 |
| 1.5CWX-3 | 7.8 | 50 | 3500 | 4.5 | 5.2 | 3.95 | 26.9 | 5.5 | 82 |
| 1.5CWX-4 | 12 | 50 | 3500 | 4.5 | 5.2 | 4.29 | 38.1 | 5.5 | 86 |
| 1.5CWX-2A | 3.6 | 57 | 3500 | 4.5 | 5.2 | 3.43 | 16.8 | 4 | 83 |
| 1.5CWX-3A | 7.8 | 50 | 3500 | 4.5 | 5.2 | 3.95 | 26.9 | 5.5 | 100 |
| 1.5CWX-4A | 12 | 50 | 3500 | 4.5 | 5.2 | 4.29 | 38.1 | 5.5 | 105 |

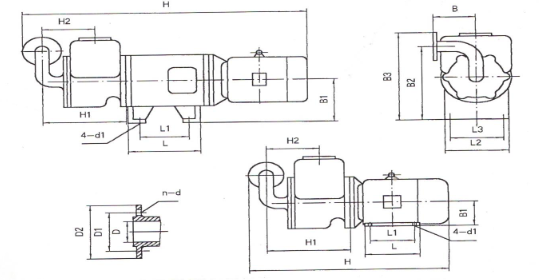

Structure diagram
Overall dimension
| Model | H | H1 | H2 | L | L1 | L2 | L3 |
| 1.5CWX-2 | 605 | 260 | 150 | 155 | 125 | 180 | 140 |
| 1.5CWX-3 | 640 | 180 | 550 | 245 | 190 | ||
| 1.5CWX-4 | 660 | 580 | |||||
| 1.5CWX-2A | 925 | 310 | 234 | 180 | 140 | ||
| 1.5CWX-3A | 970 | ||||||
| 1.5CWX-4A | 990 |
| Model | B | B1 | B2 | B3 | d1 | D | D1 | D2 | n-d |
| 1.5CWX-2 | 130 | 90 | 230 | 295 | φ12 | 40 | 93 | 125 | 6-φ15/M12 |
| 1.5CWX-3 | 100 | 240 | 302 | ||||||
| 1.5CWX-4 | 112 | 252 | 315 | φ15 | |||||
| 1.5CWX-2A | 180 | 320 | 385 | φ18 | |||||
| 1.5CWX-3A | |||||||||
| 1.5CWX-4A |
