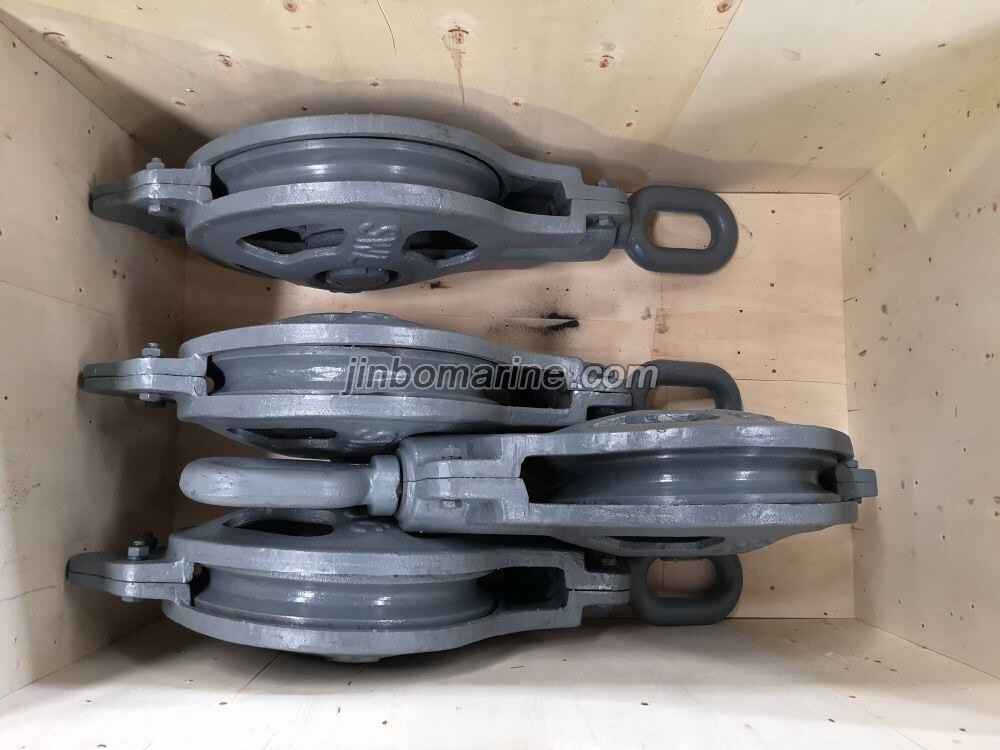

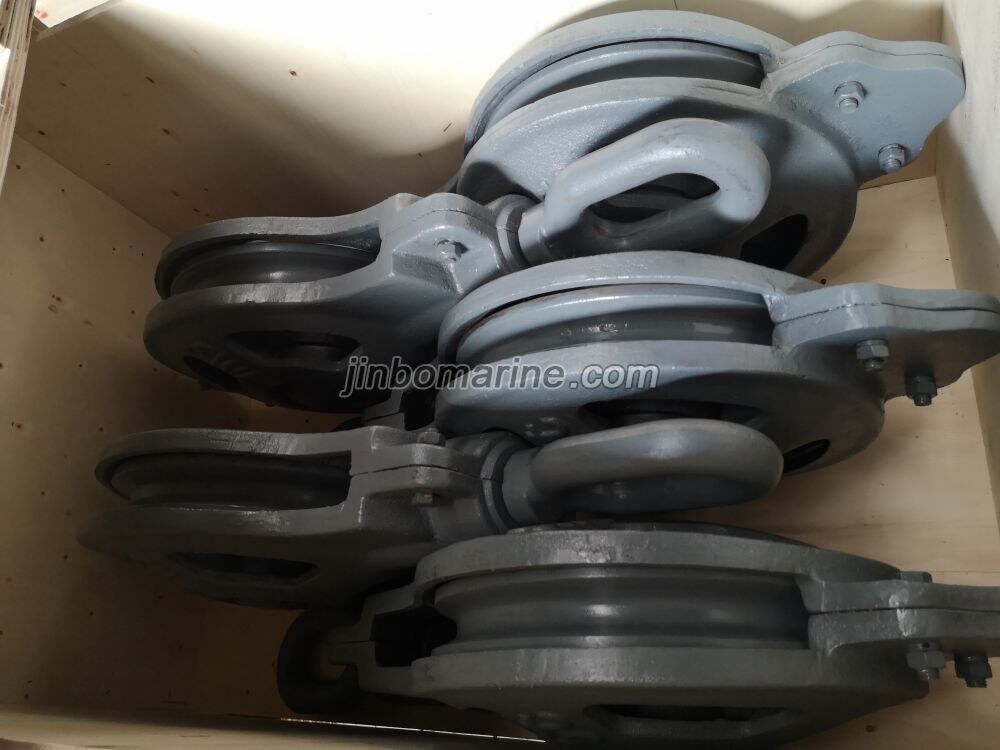

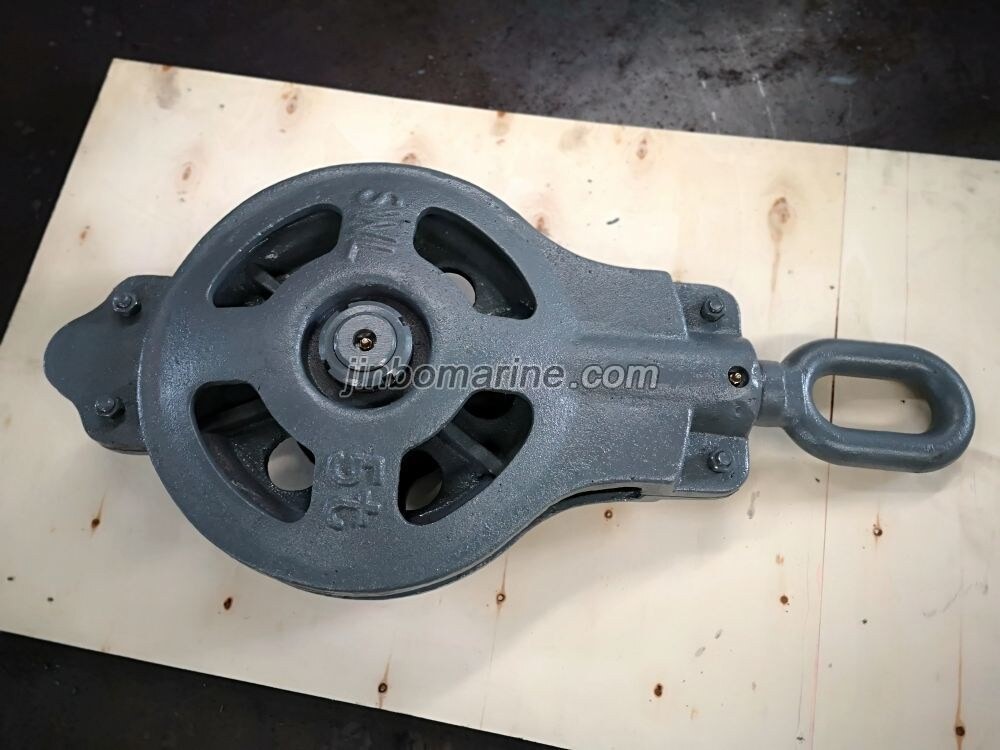

14HC-1 5Ton Cargo Block

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

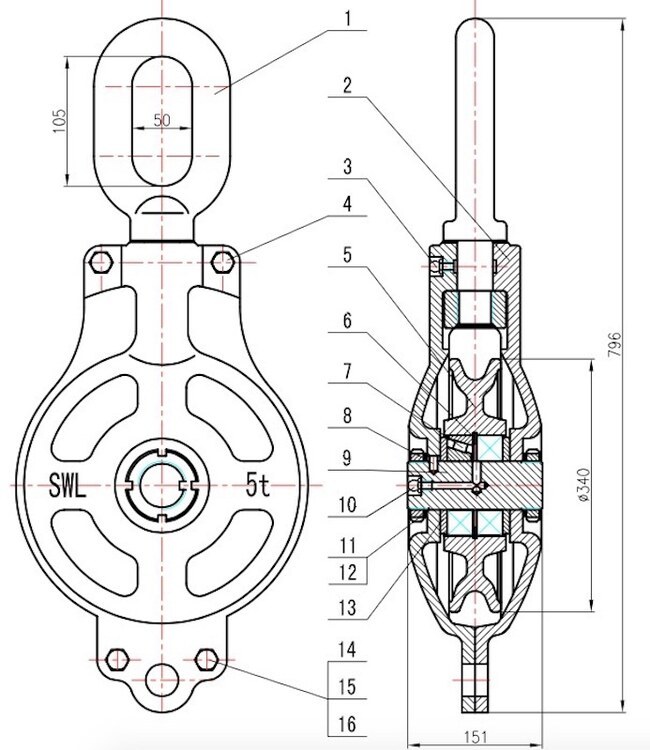

China 14HC-1 5Ton Cargo Block:

14-HC 5x1 Cargo Block

Material: Casting Steel

SWL:5Ton

Testing Load:20Ton

Wire rope size:20-24mm

Weight: 59KGS

HC Series Cargo Block Specification

Type SWL(KN) Test Load(KN) Wire Rope Dia(mm) L Type N Type Y Type Q Type B C D L Type N Type Y Type Q Type
6-HC 2x1 20 80 10-13 429 384 384 401 156 132 100 11 11 11 12.5
8-HC 3x1 30 120 16-20 568 482 482 501 196 164 124 20 20 20 22
10-HC 3x1 30 120 16-20 606 551 551 570 260 224 124 27 27 27 30
12-HC 5x1 50 200 20-22 605 643 643 658 300 260 134 40 40 41 46
14-HC 5x1 50 200 20-24 796 737 737 750 340 300 151 55 55 55 59
16-HC 10x 100 400 24-26 945 881 881 897 406 356 190 100 100 102 110
17-HC 16x1 160 640 26-28 1018 948 948 968 430 378 192 125 125 128 132
18-HC 20x1 200 800 26-28 1095 1035 1035 1055 460 410 210 150 150 155 172
Note:unit in mm unless otherwise specified.
