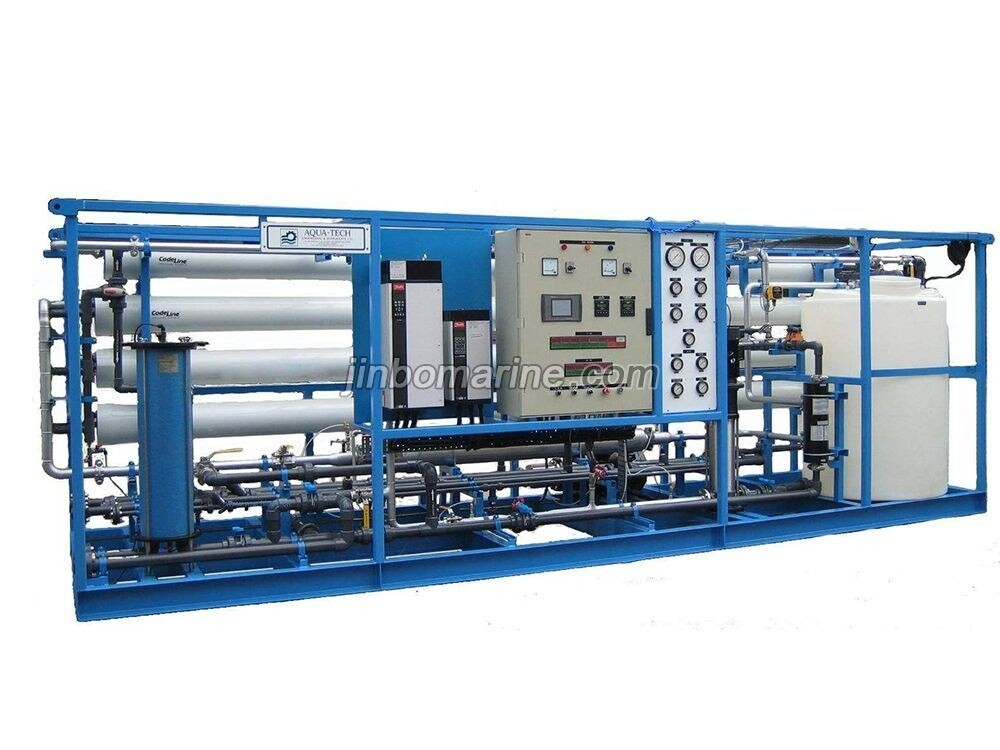

150Ton Per Day Reverse Osmosis Seawater Desalination Equipment
- Category:Water Treatment Equipment
- Certificate:CCS
- Material:Stainless steel
- Standards:WHO Fresh water standard
- Packing Details:Container
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
ZC-FSHB150 Sea Water Reverse Osmosis System:
This RO Water Plant suitable for Islands and large chemical plants.
Capacity: 150Ton/day
Salt content: ≤600mg/L
Raw water: sea water
Other basic design condition related
Purpose：Marine and offshore
Power supply：380V，50 HZ，3P
System Function:
1. Sea water 35000-38000ppm, for desalinating sea water into fresh water 600ppm
2. Whole system under control and monitoring via Automatatical.
3. Semi-automatic cleaning and back-flushing system equipped for sand filter,
4. There is over-pressure protection available for high pressure pump, when pressure is over 6.5Mpa, the system will shut down automatically.
High pressure pump equipped with low-pressure protection device, when pre-treated sea water pressure is less than 0.05Mpa, the system will shut down automatically and give alarm for attention.
5. Working parameter (product flow, brine flow, operation pressure, product water conductivity)
6. If the product water is unqualified (salt content more than 700ppm), the system will drain automatically and give alarm for attention.
7. Potential-free alarm and running indication available for extension.
Technical Parameter：
| Product ： | 150m3/day |
| Raw water ： | 35000PPM |
| Inlet temperature ： | 5~35℃ |
| PH value of Raw Water ： | 3.0~10.0 |
| Boosting inlet pressure： | 0.1~1kg/cm2 (Positive) |
| Salt content of product water ： | ≤600PPM |
| Desalination rate ： | ≥98.5% |
| Product water pressure ： | ≤0.3Mpa |
| Recovery ： | ≈25% |
| Power supply ： | 380VAC/50HZ/3φ |
| Power consumption ： | ≈6.6KW（Include boost pump） |
| Control cabinet： | 220VAC |
| Control voltage: 220VAC | |
| IP: IP55 | |
|
Potential-free extension for running indication and common alarm available. |
|
| Motor ： | IP： IP55 |
| Insulation class: “F” |
