16-500kn.m Ram Type Elector-hydraulic Steering Gear
- Category:Marine Hydraulic Steering gear
- Material:Cast steel
- Standards:standard
- Certificate:DNV,ABS,RINA,CCS,
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
16-500kn.m Ram Type Elector-hydraulic Steering Gear
General description

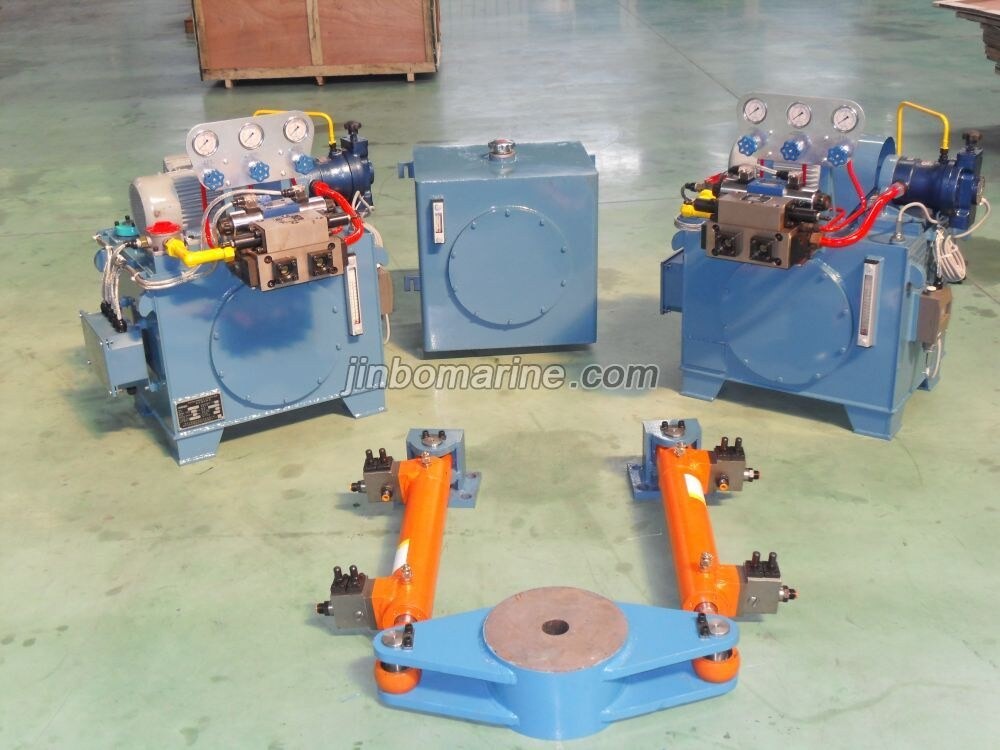

This series consist of one set of rudder mechanism with two piston type of cylinders, two oil pump power units, one reserve tank. One set of emergency pumps, pressure accumulator or DC motor pump unit is added for using in navigation zone of inland rapid flowing river, to comply with CCS rules.
Control modes includes direct control of manual direction valve, electronic control, pump control, among which, electronic and pump control can be used together with any form of autopilot and follow-up pilot.
Specification
|
No. |
Torque(KN.m) |
A |
B |
Radius of filler(R) |
Height of the center(H) |
Thickness of filler(H) |
Rudder stock diam(d) |
|
1 |
8-12 |
970 |
550 |
200 |
100 |
100 |
130 |
|
2 |
16-25 |
1269 |
700 |
300 |
110 |
150 |
160 |
| 3 | 30-40 | 1170 | 790 | 320 | 115 | 150 | 160 |
|
4 |
50-63 |
1420 | 940 | 320 | 145 | 180 | 180 |
| 5 | 75-125 | 1700 | 1080 | 400 | 145 | 220 | 200 |
| 6 | 160-250 | 2250 | 1440 | 650 | 200 | 400 | 280 |
| 7 | 300-450 | 3100 | 1800 | 700 | 260 | 550 | 340 |
| 8 | 500 | 3500 | 1900 | 720 | 260 | 600 | 360 |
