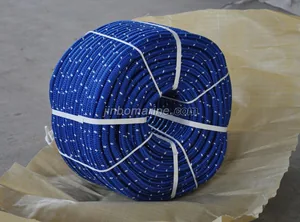

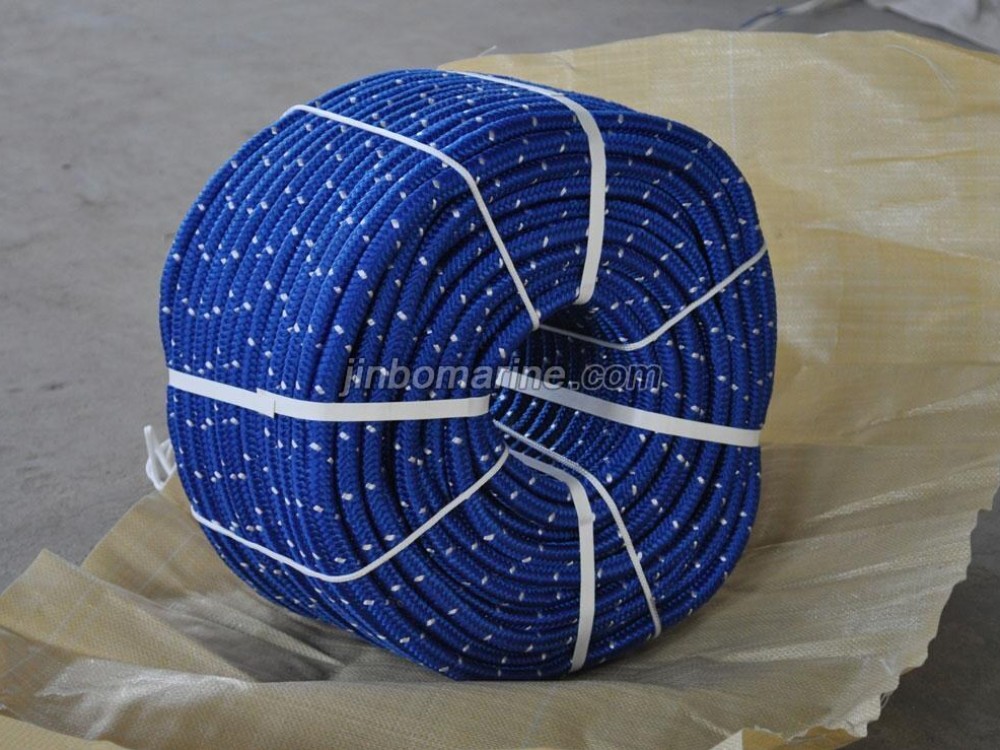

16 Strand Weaving Rope
- Category:Mooring Rope
- Material:All kinds of material.
- Standards:International standard
- Certificate:DNV,LR,CCS,BV,GL,ABS,RINA,KR,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]16 Strand Weaving Rope.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 16 Strand Weaving Rope:
Its special braied structure and technology craft rise up the utilization rate of strength of fiber thus to make the rope have advantages of low elongation,wearing resistance,smooth and pliable tough provides ideal product for special requirement for customers.
Mainly used in shipbuilding,petroleum drilling,national defense,military industry as well as loading and unloading in harbors.
Main Performance:
| Material | Polyamide Multifilament | Polyamide yarn | Polypropylene multifilament | Polyester |
| Density |
1.14 non floating |
1.14 non floating |
0.91 floating |
1.27 non floating |
| Melting point | 215℃ | 215℃ | 165℃ | 260℃ |
| Abrasion resistance | Very good | Very good | Medium | Good |
| UV resistance | Very good | Very good | Medium | Good |
| Temperature resistance | 120℃ Max | 120℃ Max | 70℃ Max | 120℃ Max |
| Chemical resistance | Very good | Very good | Good | Good |
Parameter Table:
Chart 1
| Specification | Polyamide Multifilament | Polyamide Yarn | |||
| Diameter | Circumference | Linear Density(Ktex) | Breaking Strength(KN) | Linear Density(Ktex) | Breaking Strength(KN) |
| 20 | 2 1/2“ | 247 | 87 | 247 | 73 |
| 24 | 3“ | 355 | 123 | 355 | 106 |
| 28 | 3 1/2“ | 484 | 164 | 484 | 140 |
| 32 | 4“ | 632 | 211 | 632 | 177 |
| 36 | 4 1/2“ | 800 | 264 | 800 | 220 |
| 40 | 5“ | 987 | 323 | 987 | 265 |
| 44 | 5 1/2“ | 1190 | 386 | 1190 | 318 |
| 48 | 6“ | 1420 | 453 | 1420 | 372 |
| 52 | 6 1/2“ | 1670 | 527 | 1670 | 432 |
| 56 | 7“ | 1930 | 605 | 1930 | 495 |
| 60 | 7 1/2“ | 2220 | 690 | 2220 | 564 |
| 64 | 8“ | 2530 | 780 | 2530 | 637 |
| 72 | 9“ | 3200 | 976 | 3200 | 795 |
| 80 | 10“ | 3950 | 1188 | 3950 | 972 |
| Specifications | Polypropylene Multifilament | Polester | |||
| Diameter | Circumference | Linear Density(Ktex) | Breaking Strength(KN) | Linear Density(Ktex) | Breaking Strength(KN) |
| mm | Inch | Ktex | KN | Ktex | KN |
| 20 | 2 1/2“ | 189 | 69 | 303 | 76 |
| 24 | 3“ | 273 | 96 | 437 | 108 |
| 28 | 3 1/2“ | 373 | 127 | 594 | 143 |
| 32 | 4“ | 483 | 160 | 778 | 184 |
| 36 | 4 1/2“ | 614 | 201 | 982 | 231 |
| 40 | 5“ | 756 | 243 | 1215 | 283 |
| 44 | 5 1/2“ | 924 | 292 | 1468 | 339 |
| 48 | 6“ | 1092 | 339 | 1750 | 400 |
| 52 | 6 1/2“ | 1281 | 393 | 2050 | 466 |
| 56 | 7“ | 1491 | 449 | 2380 | 538 |
| 60 | 7 1/2“ | 1712 | 513 | 2730 | 614 |
| 64 | 8“ | 1943 | 581 | 3110 | 694 |
| 72 | 9“ | 2457 | 729 | 3930 | 868 |
| 80 | 10“ | 3045 | 897 | 4850 | 1059 |
