16inch HDG Hang-off chain
- Category:Chafe Chain
- Material:CM690
- Delivery Time:20
- Packing Details:Ton Bags
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

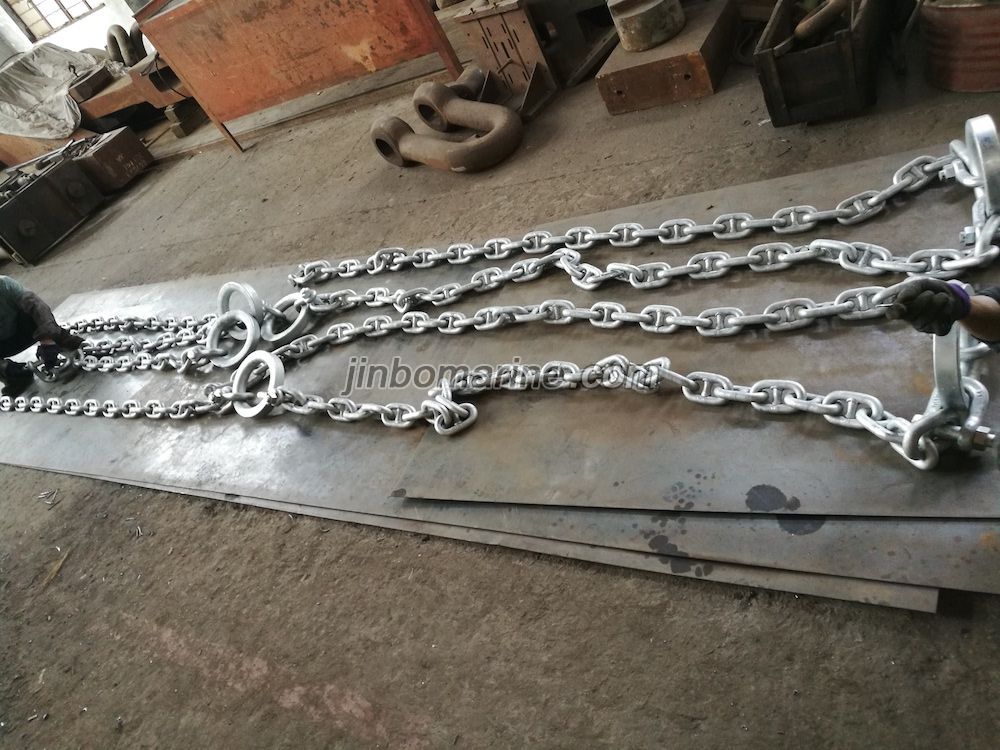

China 16inch HDG Hang-off chain:
Hang-off chain, also called snubbing chain is used to hang a tanker rail hose at a tanker. Safety working load is in accordance with GMPHOM 2009 "Tanker Rail Hose/Lifting Lugs"
Material: Flash butt welded anchor chain, hot dip galvanized, others fitting: steel, hot dip galvanized.
Hose Size | SWL(ton) | Proof Load(Kn) | Link Size(mm) | Shackle Size(mm) | Ring Size(mm) | Length L(M) | |||||||
I/D(ins) | Length(ft) | Gr.2 | Gr.3 | d1 | d2 | d3 | D1 | d4 | D2 | d5 | Hang Off | Pick-up | |
6,8 &10 | 25 | 5 | 150 | 210 | 19 | 21 | 23 | 25 | 22 | 125 | 30 | 9.14 | 1.5 |
30 | 10.67 | ||||||||||||
35 | 12.19 | ||||||||||||
12 | 25 | 8 | 201 | 281 | 22 | 24 | 26 | 28 | 25 | 125 | 36 | 9.14 | 1.5 |
30 | 10.67 | ||||||||||||
35 | 12.19 | ||||||||||||
16 | 25 | 11 | 278 | 389 | 26 | 28 | 32 | 35 | 32 | 135 | 42 | 9.14 | 1.5 |
30 | 10.67 | ||||||||||||
35 | 12.19 | ||||||||||||
20 | 25 | 15.5 | 367 | 514 | 30 | 33 | 36 | 42 | 38 | 135 | 46 | 9.14 | 1.5 |
30 | 10.67 | ||||||||||||
35 | 12.19 |
