19mm Pelican Hook Chain Stopper
- Category:Chain Stopper
- Material:Fine gain heat treated alloy steel
- Delivery Time:30 days
- Packing Details:Ton bags
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

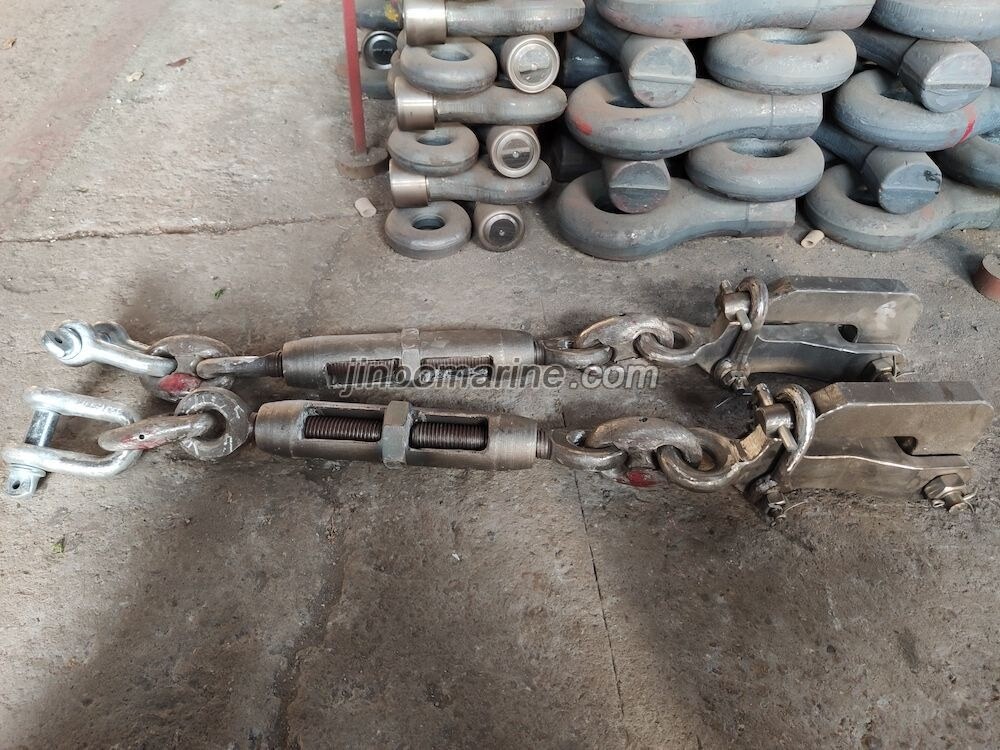

China 19mm Pelican Hook Chain Stopper:

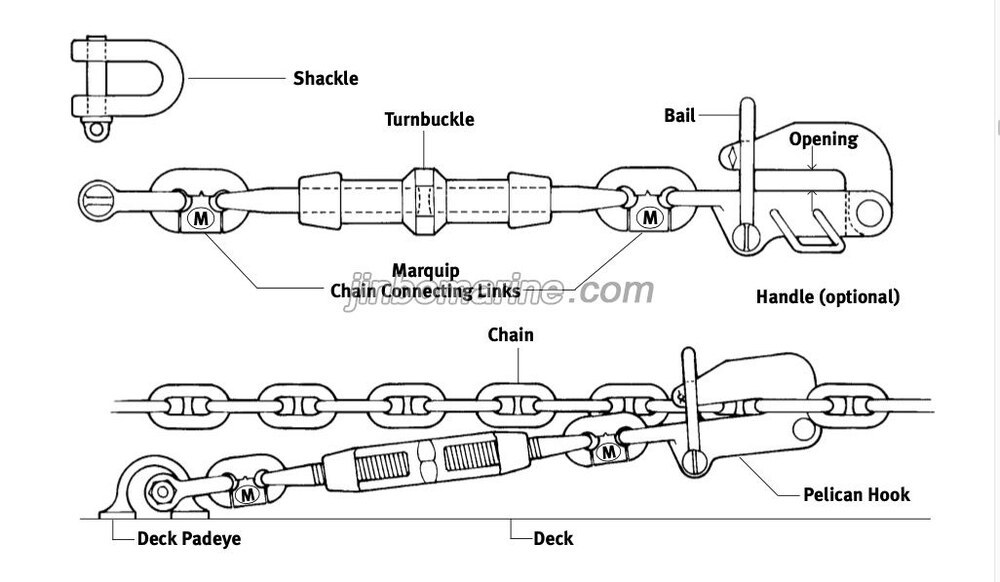

The function of this Pelican Hook Chain Stopper to secure the ship's anchor at the hawse pipe, the chain can be disengaged from the stopper by manually to deflecting the bail. The pelican hook stopper consists of shackle, connecting link, turnbuckle and pelican hook and all made of fine gain heat treated alloy steel.

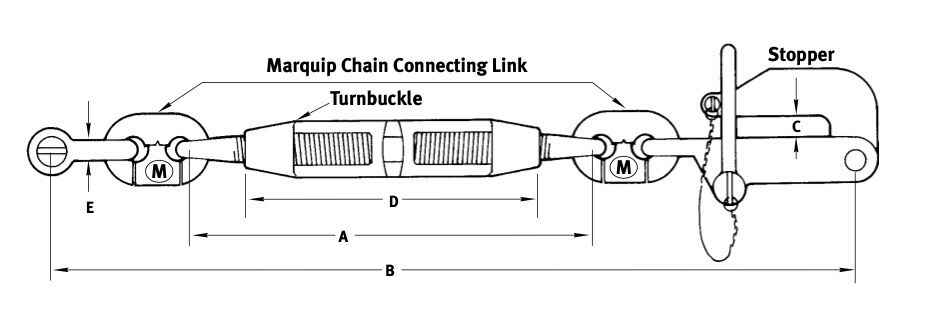

CHAIN SIZE | A | B Min. | B Max. | C | D | E | Det. Link Size |
Proof Load Lbs. |
Break Load Lbs. |
||||||||||
Inches | mm | ||||||||||||||||||
3/4 | 19 | 16 | 33-1/4 | 40-1/2 | 1 | 11 | 7/8 | 3/4 | 67500 | 91100 |
How to use?
