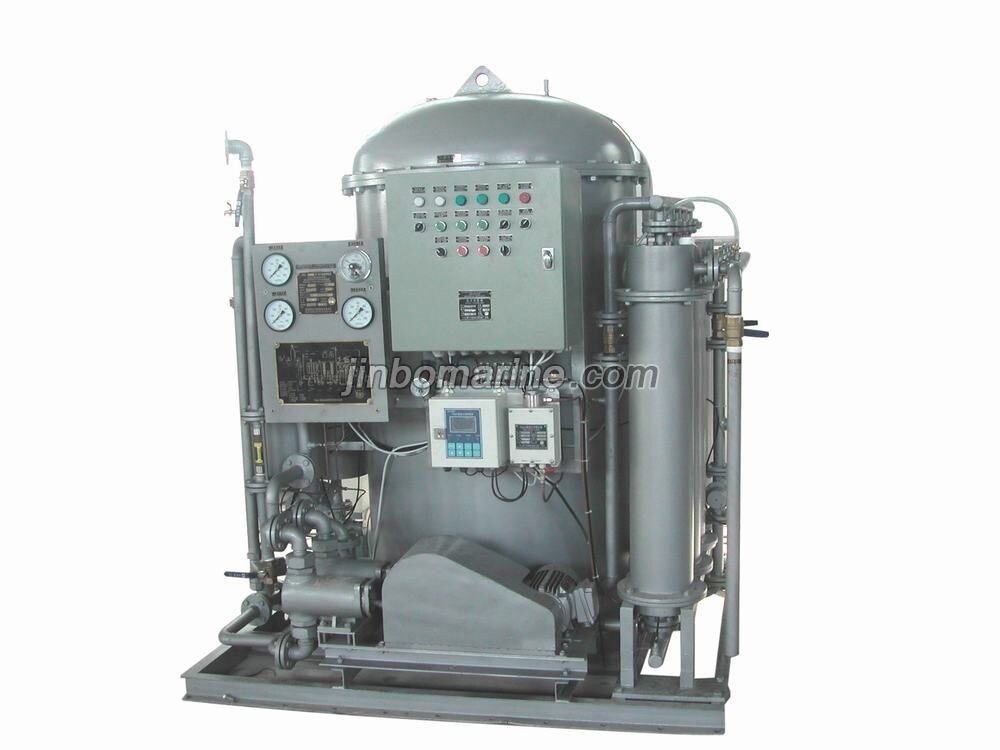

2.50m3/h Marine Oil Water Separator
- Category:Marine Oil Water Seperator
- Certificate:CCS,GL,BV etc.
- Packing Details:Export Standard Packaging.
- Delivery Time:About 7 to 15 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
2.50m3h Marine Oil Water Separator:
To comply with resolution IMO MEPC.107 (49), on board, especially ocean-going ships, they must be installed on board: 15ppm bilge separator, 15ppm bilge alarm and automatic stopping device.
Workgin Principle:
the
main parts adopt international famous brands, including electrical control box components provided by
Schneider, 15ppm bilge alarm provided by the German DECKMA Ha, screw pump
provided by the Mono Pump.
Technical Data:
| Rated capacity | 2.50 m3 per hour | |
| Power of the electric heater | 6kw | |
| Power of the electric motor | 1.5kw | |
| Outline Dimension(LxWxH) | 1900x1120x1900 | |
| Base | 8# | |
| Weight | Dry Weight | 1500 |
| Wet Weight | 2800 | |
| Applicable Vessel | 50-100DWT | |
| Optional electrical system |
AC 380V/50Hz/3
phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. |
|
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
