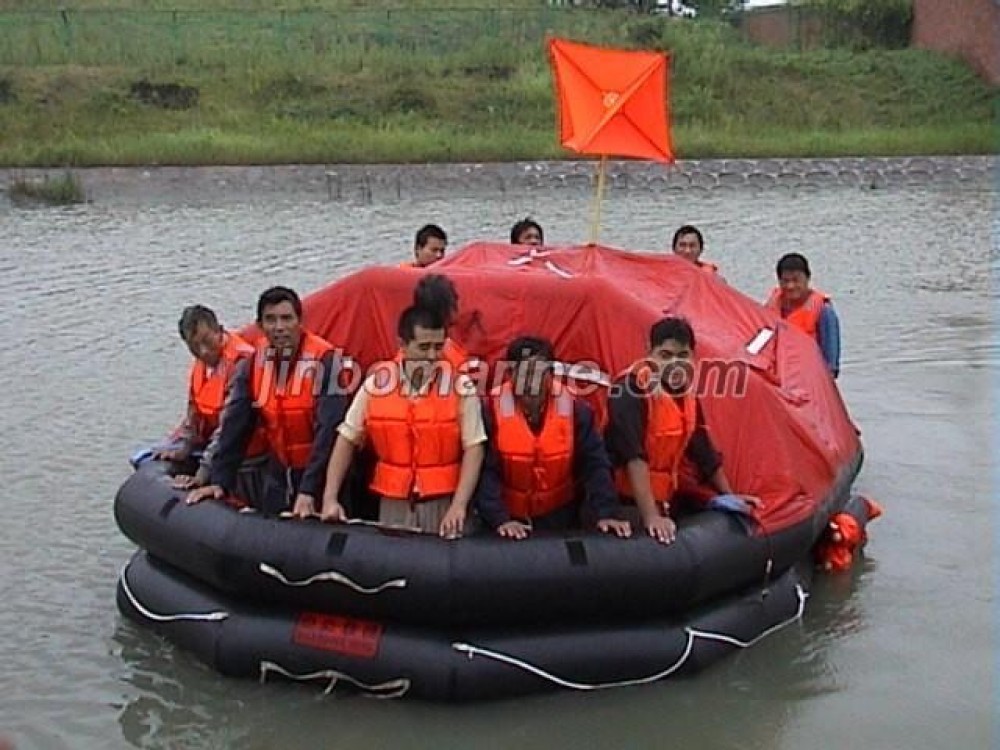

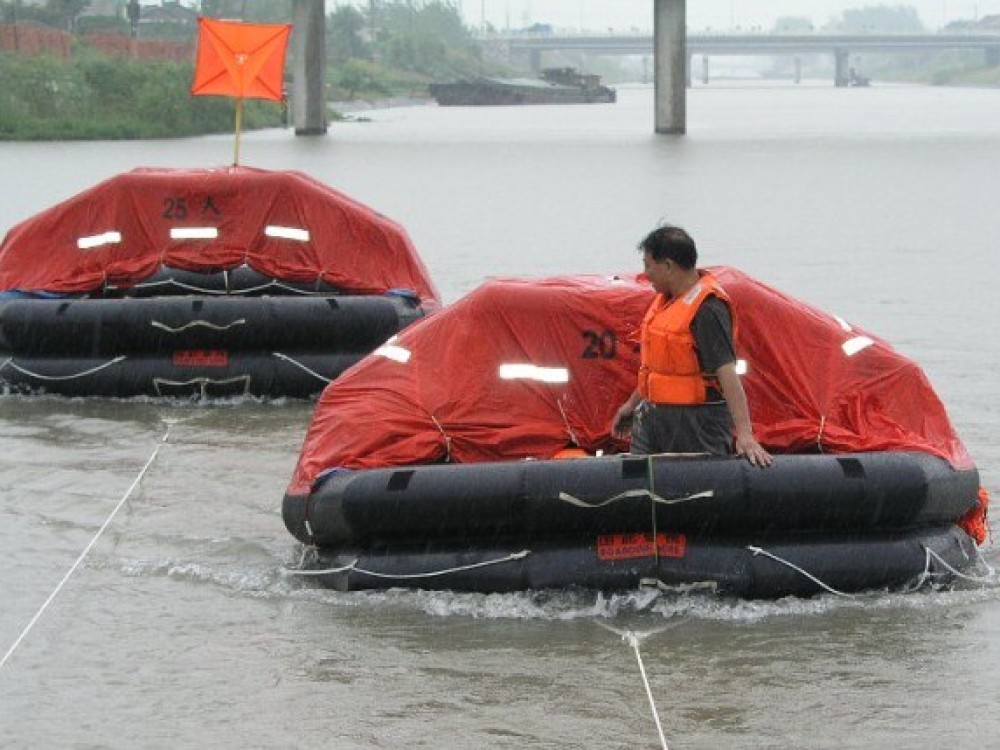

20 Persons Throw-Over Board Inflatable Life Raft

The Throw over board Inflatable Liferaft are stored in containers on deck an inflate in the water when the painter line is pulled

The standard sizes of the liferafts are available with:6、10、15、20 and 25 persons.

The liferafts with type approval by CCS and EC(EC was issued by GL).

After throwover from ship,the liferaft can be inflated and opened automatically.If the ship sinks very fast and the life-raft can not be throw over,the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically.

The installation height is 18-50m from water surface.

Capacity:20 persons

Main dimension length:4600mm

Main dimension breadth:3000mm

(Co2+N2)*2/weight of gas:3200*2g

Max storage height:36M

Physical form:Ellipse

Gross weight:170kg

The FRP container:Diameter 700X1460

Packaging size: 1540X780X820MM

Cradle,HRU (hydraulic release unit),GRP containers.
