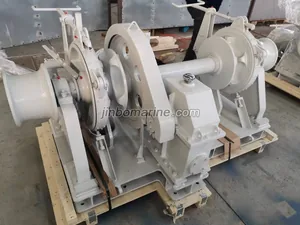

26mm Double Gypsy Electric Anchor Windlass

Main specification:

1 Chain dia.(AM2) φ26 mm

2 Pitch dia.of the chain wheel φ354 mm

3 Rated pull 28.7 kN

4 Overload pull 43.1kN

5 Holding load 175 kN

6 Nominal speed ≥9m/min

7 Max anchor casting depth ≤82.5 m

8 Load of warping end 15 kN

9 Motor JZ2—H33—4/12

Power 8.5/3.5 kW

Speed 1370/390 r/min

Source 400V/ 50Hz

Duty 30/10 min
