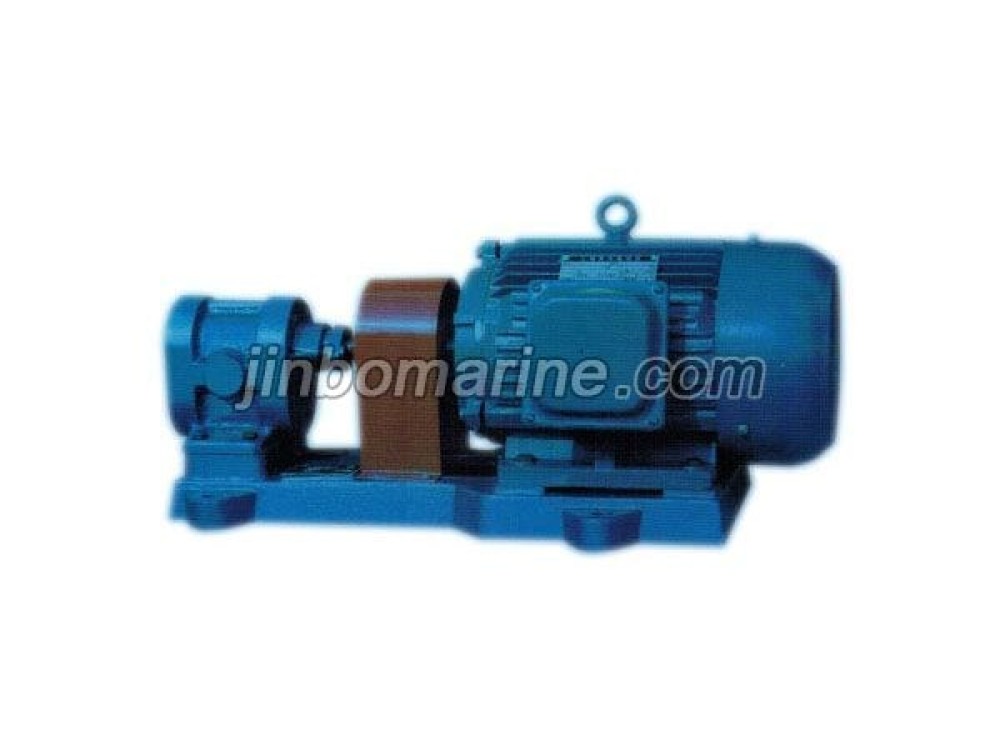

2CY-3/2.5 Marine Gear Pump
- Category:Hand Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 2CY-3/2.5 Marine Gear Pump:
2CY Series of gear pump is used to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-1500CST.
| Main Technical Data | ||||
| Model |
Pump flow rate (L/min) |
Rev speed（r/min） |
Discharge pressuer (Mpa) |
Motor power (KW) |
| 2CY-1.08/2.5 | 18 | 1440 | 2.5 | 1.5 |
| 2CY-2.1/2.5 | 35 | 1440 | 2.5 | 3 |
| 2CY-3/2.5 | 50 | 1440 | 2.5 | 4 |
| 2CY-4.2/2.5 | 70 | 1440 | 2.5 | 5.5 |
| 2CY-7.5/2.5 | 125 | 1440 | 2.5 | 7.5 |
| 2CY-12/2.5 | 200 | 1460 | 2.5 | 11 |
