35SFRE-G40B MANUAL REVERSING PROPORTIONAL SPEED REGULATING VALVE

Request a Quote Not what you need, please send your RFQs via Email.

Details

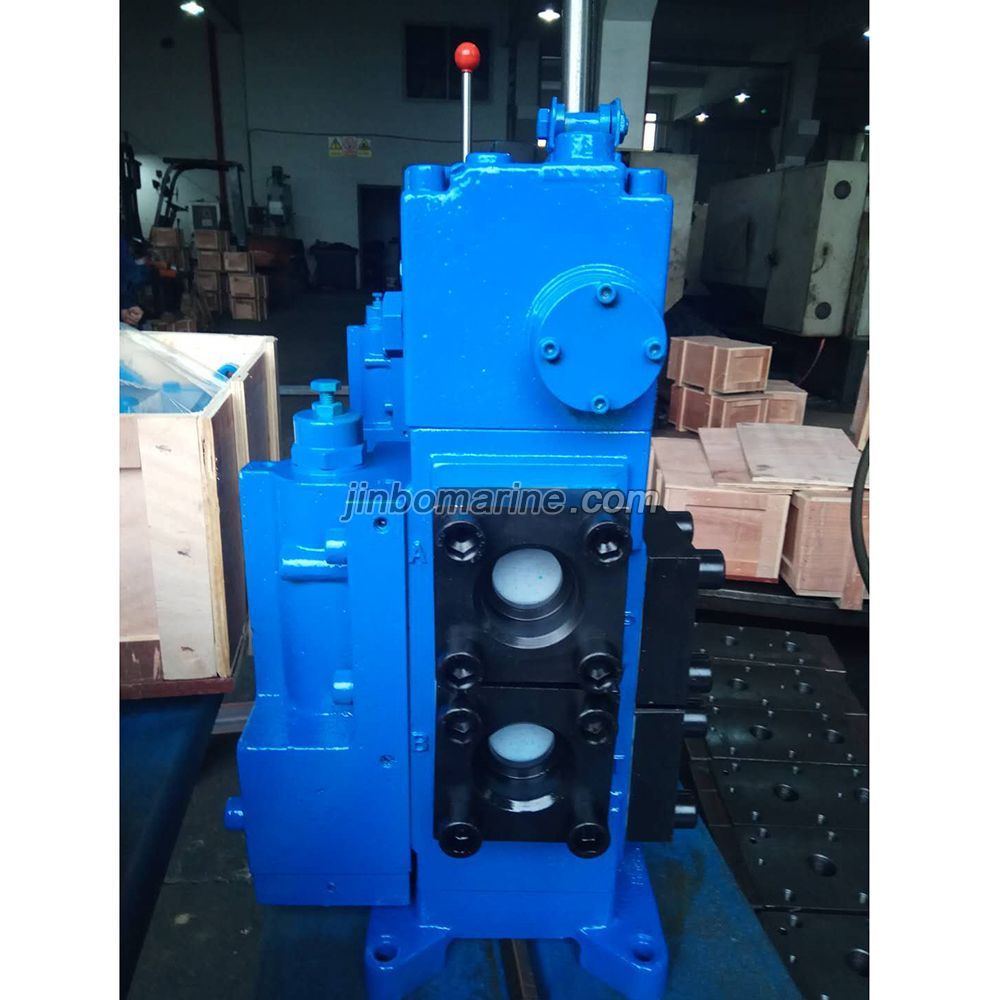

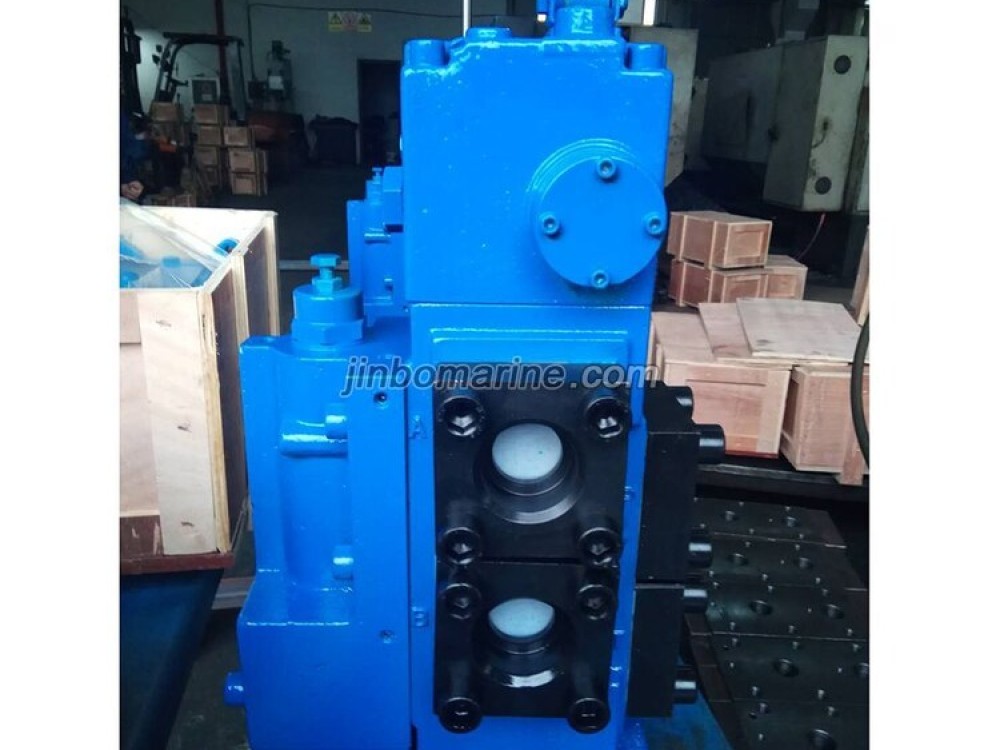

35SFRE-G40B MANUAL REVERSING PROPORTIONAL SPEED REGULATING VALVE:

The 35SFRE marine manual reversing proportional speed control valve is a three-position five-way valve with excellent response characteristics and pressure compensation function; the pressure compensation valve effectively suppresses load impact, keeps the system flow from fluctuating due to pressure fluctuations, and provides stable power ; The compensator of the bypass device is used to avoid reversing impact; in addition, the 35SFRE marine manual reversing proportional speed control valve has a compensator with high response characteristics, which is suitable for load impact occasions.

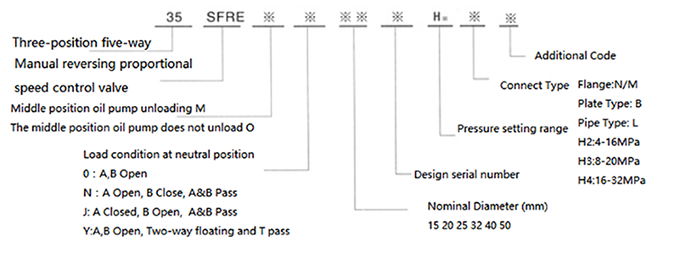

Product Code:

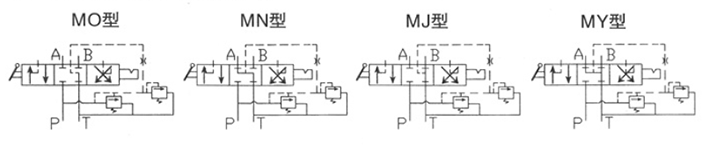

Function symbol of M valve for unloading oil pump in intermediate position:

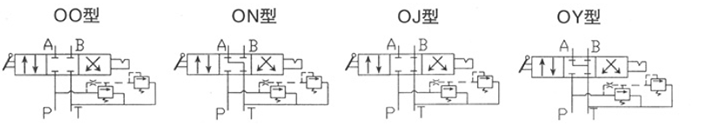

Function symbol of O-valve that does not unload the oil pump in the middle position:

Technical data:

DN 15mm 20mm 25mm 32mm 40mm 50mm
Pressure 21MPa 21MPa 21MPa 21MPa 21MPa 21MPa
Nominal Flow 60L/min 100L/min 200L/min 280L/min 380L/min 600L/min
Weight 15kg 26kg 44kg 50kg 100kg 110kg

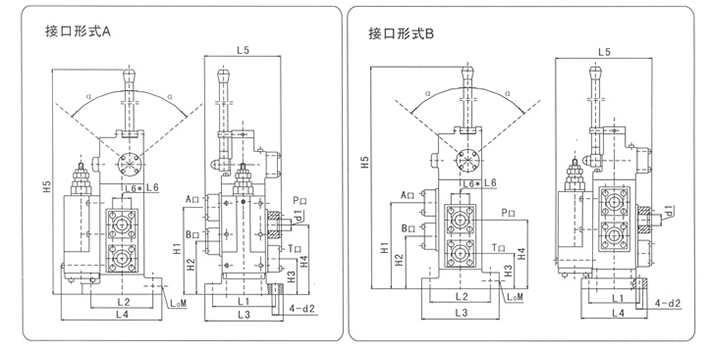

Shape and connection dimension:

DN L1 L2 L3 L4 L5 L6 H1 H2
15 96 96 120 175 146 35 154.5 94
20 130 100 160 220 178 40 180 110
25 130 110 160 220 178 50 229 142.5
32 110 130 160 140 256 60 236 150
32B 140 140 164 164 256 60 241 153
40B 140 140 164 164 256 66 263 160
50 180 180 220 318 252 80 290.5 176.5

H3 H4 H5 d1 d2 M Interface form α
66 124 454 25 11 14*1.5 A 67°
74 144 533 34 14 14*1.5 A 65°
99 186 584 35 13 14*1.5 A 69°
109 195 597 43 13 14*1.5 B 65°
112 200 612 43 11 14*1.5 B 60°
124 227 623 52 11 14*1.5 B 60°
119 233.5 770 64 17 18*1.5 A 60°
