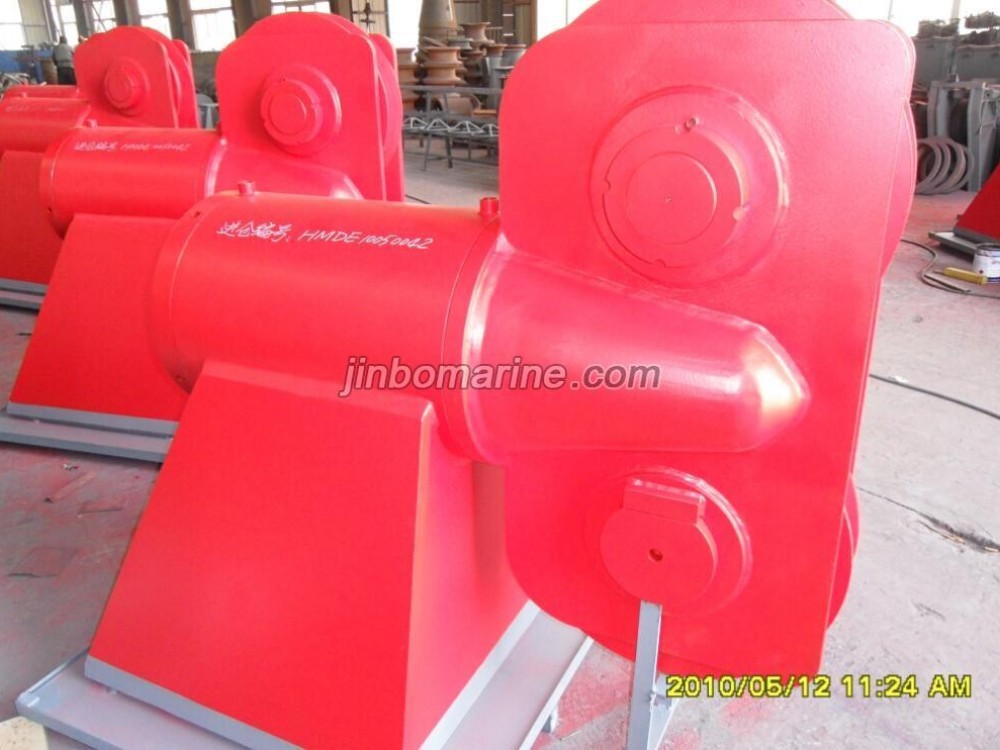

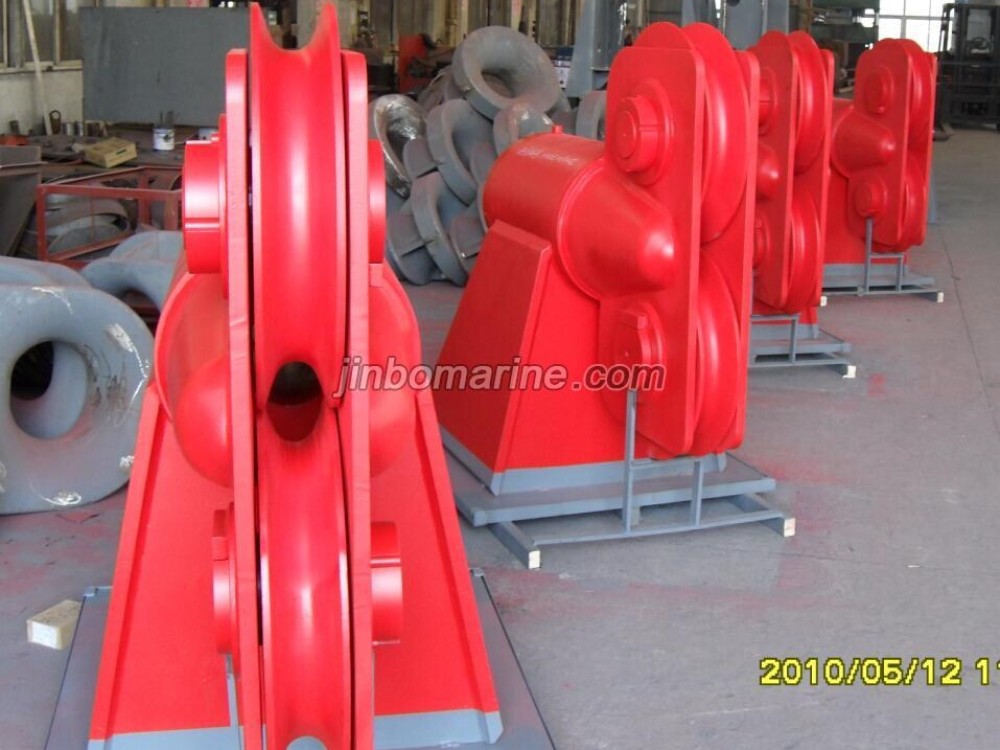

360 Degree Swivel Fairlead
- Category:Marine Fairlead
- Material:Steel
- Certificate:ABS , BV, mill certificate etc.
- Standards:Can be customized according to your request.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]360 Degree Swivel Fairlead.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Feature:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
Provide CCS , BV , LR , BV etc Certificate
Customized service is available, Advanced equipment ,Strong consciousness in controlling quality
Material:ZG230-450,Q235
Surface: Blasting,Epoxy.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning,etc
Good wear and corrosion resistance
We can supply fairlead, roller according to JISF, DIN and GB standards. We can also make these products according to buyer's drawings.
Specification:

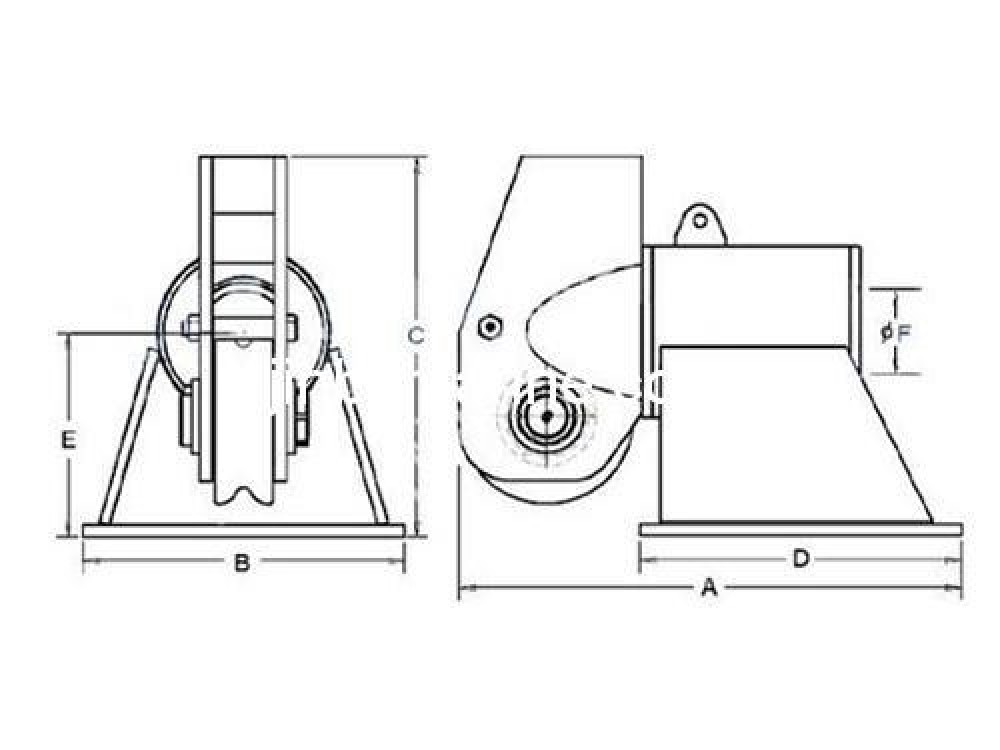

AF-40 360 Anchor Fairlead | |||||||||
Wire Rope Dia. | Sheave Dia.(mm) | Dimension(mm) | Mass Weight | ||||||
mm | inch | A | B | C | D | E | F | kg | |
19 | 3/4" | 210 | 627 | 406 | 511 | 405 | 279 | 114 | 122 |
25 | 1 | 254 | 756 | 489 | 625 | 491 | 343 | 143 | 225 |
32 | 1-1/4" | 305 | 816 | 508 | 714 | 470 | 434 | 160 | 304 |
38 | 1-1/2" | 406 | 1018 | 641 | 921 | 533 | 545 | 216 | 658 |
44 | 1-3/4" | 508 | 1201 | 724 | 1156 | 614 | 597 | 241 | 953 |
50 | 2 | 610 | 1343 | 762 | 1138 | 756 | 648 | 305 | 1202 |
57 | 2-1/4" | 632 | 1515 | 1022 | 1543 | 769 | 800 | 330 | 2177 |
64 | 2-1/2" | 762 | 1670 | 1016 | 1784 | 769 | 921 | 368 | 2722 |
76 | 3 | 1118 | 2739 | 1330 | 2642 | 1228 | 876 | 673 | 7484 |
