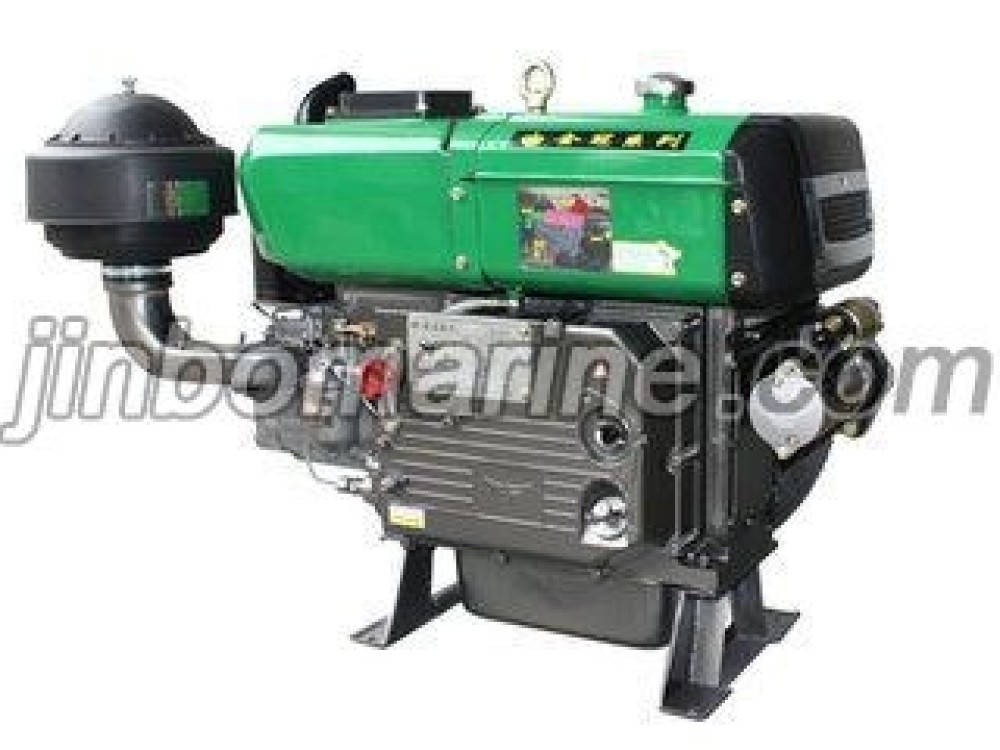

4-stroke Air-cooled diesel

Request a Quote Not what you need, please send your RFQs via Email.

Details

4-stroke Air-cooled diesel

Parameter

4-Stroke Air-cooled diesel
Engine Model 170F 178F 186FA 2V86F
Type Single cylinder,4-stroke,air-cooled diesel engine
Bore x Stroke(mm) 70x55 78x62 86x72 86x70
Displacement(ml) 211 296 417 836
Compression ration 20:01 20:01 19:01 19:01
Rated output power(3000rpm) 2.6kw 3.7kw 5.7kw 11kw
Max.output power(3600rpm) 2.8kw 3.9kw 5.9kw 12kw
Fuel consumption ratio(g/kw.h) <284 <283 <280 <270
Oil consumption ratio(g/kw.h) <4.08 <4.08 <4.08 <4.08
Fuel tank capacity(L) 2.65 3.3 5.5 8
Lubrication capacity(L) 0.8 1.1 1.7 1.7
Fuel type 0# in summer, -10# in winter(diesel oil)
Lube. Brand SAE10W/30(Above CC grade)
Lubrication method Splashing
Air cleaner Semi-dry, oil-immersed, foam filter element
starting method Recoil start Electrict
Options Transmission Threaded shaft / taper shaft / keyway shaft
Electric starter N/A Available Available Available
Tank Available Available Available Available
Pack Packing size(mm) 455x375x490 485x420x520 520x520x565 530x390x460
Net weight(Kgs) 27 33 48 59
Gross weight(Kgs) 30 36 51 63
20FT Qty 300 240 176 176
