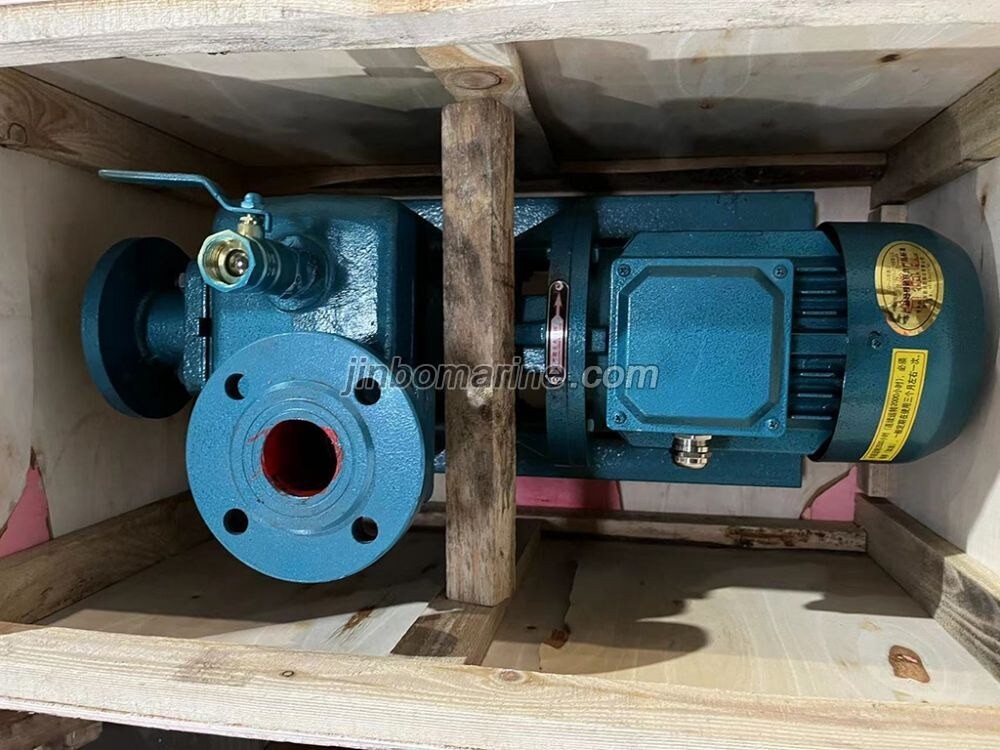

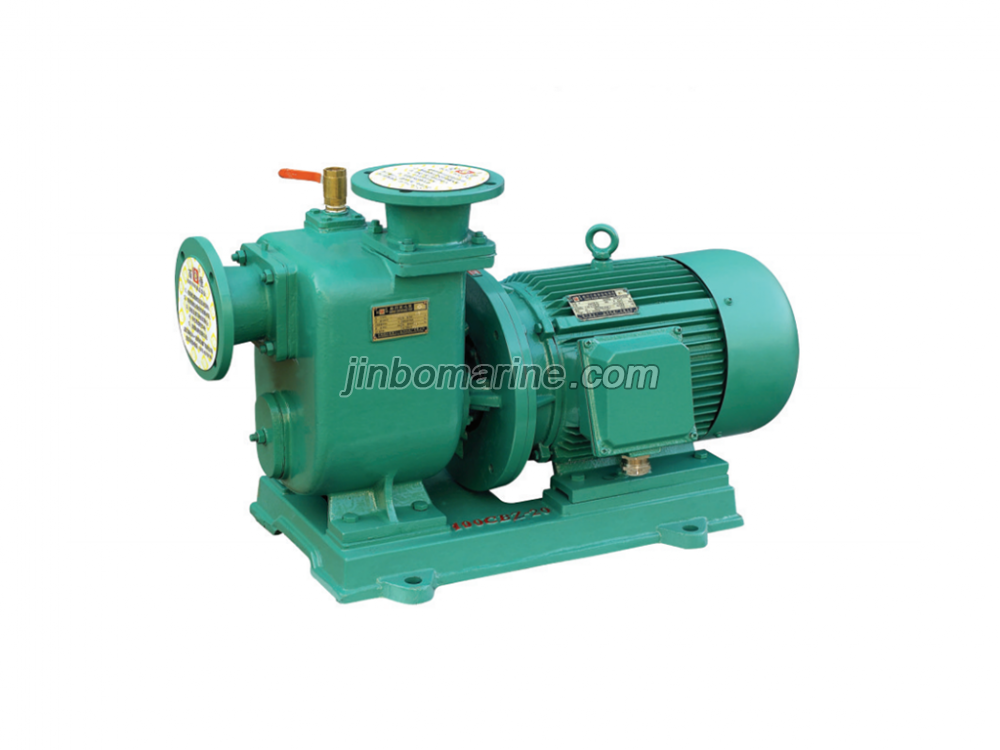

40CBZ-20 Self-priming Marine Pump
- Category:Centrifugal Pump
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Applications:
CBZ series self-priming marine pump is applicable for delivering water and other liquid which is like water in physicochemical properties.The maximum temperature of the liquid shall not be above 80℃.
CBZ series self-priming marine pump shallbe used for water supply and discharging for ships.

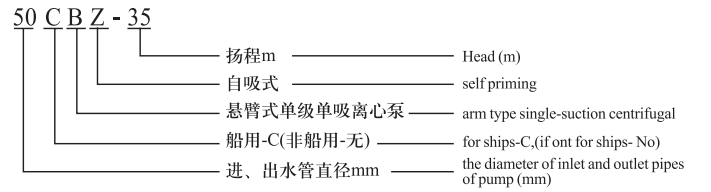

Meaning of CBZ model number:
Model |
Capacity Q(m3/h) |
Head H(m) |
Efficiency (%) |
Speed (r/min) |
Power (kw) |
Allowable suction height (m) |
Weight (Kg) |
Motor |
32CBZ-21 | 8 | 21 | 35 | 2950 | 1.5 | 5 | 50 | Y90S-2H |
32CBZ-30 | 8 | 30 | 36 | 2950 | 2.2 | 5 | 55 | Y90L-2H |
32CBZ-42 | 8 | 42 | 38 | 2950 | 4 | 5 | 73 | YI12M-2H |
40CBZ-20 | 12 | 20 | 58 | 2880 | 1.5 | 5 | 69 | Y90S-2H |
40CBZ-21 | 12 | 21 | 35 | 2950 | 2.2 | 5 | 69 | Y90L-2H |
40CBZ-32 | 6.5 | 32 | 40 | 2900 | 2.2 | 5 | 69 | Y90L-2H |
40CBZ-30 | 12 | 30 | 40 | 2950 | 3 | 5 | 83 | Y100L-2H |
40CBZ-42 | 12 | 42 | 40 | 2950 | 4 | 5 | 93 | Y112M-2H |
50CBZ-21 | 21 | 21 | 45 | 2950 | 3 | 5 | 79 | Y100L-H |
50CBZ-30 | 21 | 30 | 45 | 2950 | 4 | 5 | 103 | YI12M-2H |
50CBZ-32 | 20 | 32 | 65 | 2900 | 4 | 7 | 110 | Y112M-2H |
50CBZ-35 | 14 | 35 | 55 | 2900 | 4 | 7 | 110 | YU2M-2H |
50CBZ-42 | 21 | 42 | 55 | 2950 | 5.5 | 5 | 116 | Y132S1-2H |
65CBZ-21 | 36 | 21 | 56 | 2950 | 4 | 5 | 93 | Y1I2M-2H |
65CBZ-42 | 36 | 42 | 57 | 2900 | 11 | 6 | 210 | Y160M1-2H |
65CBZ-30 | 36 | 30 | 63 | 2900 | 5.5 | 6.5 | 168 | Y132S1-2H |
65CBZ-50 | 24 | 50 | 56 | 2900 | 7.5 | 6.5 | 160 | Y132S2-2H |
65CBZ-60 | 36 | 60 | 56 | 2950 | 15 | 6 | 195 | Y160M2-2H |
80CBZ-21 | 60 | 21 | 57 | 2950 | 7.5 | 5.5 | 170 | Y132S2-2H |
80CBZ-30 | 50 | 30 | 68 | 2900 | 7.5 | 6 | 168 | Y132S2-2H |
80CBZ-42 | 60 | 42 | 55 | 2900 | 15 | 5 | 207 | Y160M2-2H |
80CBZ-50 | 30 | 50 | 58 | 2900 | 15 | 6 | 230 | Y160M2-2H |
8OCBZ-55 | 60 | 55 | 54 | 2900 | 18.5 | 6 | 248 | YI60L1-2H |
80CBZ-60 | 60 | 60 | 54 | 2950 | 22 | 6 | 280 | Y180M-2H |
8OCBZ-65 | 48 | 65 | 63 | 2900 | 18.5 | 6 | 253 | Y160L -2H |
80CBZ-70 | 60 | 70 | 63 | 2900 | 30 | 6 | 315 | Y200L1-2H |
80CBZ-75 | 60 | 75 | 60 | 2950 | 30 | 6 | 360 | Y200L1-2H |
80CBZ-25 | 25 | 25 | 58 | 1450 | 5.5 | 7 | 320 | Y132S-4H |
100CBZ-20 | 90 | 20 | 73 | 2900 | 11 | 6 | 240 | Y160M1-2H |
100CBZ-21 | 100 | 21 | 65 | 2950 | 11 | 5 | 280 | YI60MI-2H |
100CBZ-30 | 100 | 30 | 68 | 2900 | 15 | 5 | 252 | Y160M2-2H |
100CBZ-40 | 90 | 40 | 72 | 2900 | 18.5 | 5 | 265 | Y160L-2H |
100CBZ-42 | 100 | 42 | 62 | 2950 | 22 | 4.5 | 315 | Y180M-2H |
100CBZ-50 | 60 | 50 | 68 | 2900 | 18.5 | 5.5 | 290 | Y160L-2H |
100CBZ-60 | 100 | 60 | 66 | 2950 | 37 | 5 | 296 | Y200L2-2H |
100CBZ-65 | 100 | 65 | 70 | 2900 | 30 | 5.5 | 296 | Y200LI-2H |
100CBZ-80 | 100 | 80 | 70 | 2900 | 37 | 5.5 | 456 | Y200L2-2H |
100CBZ-85 | 100 | 85 | 67 | 2950 | 55 | 5 | 500 | Y250M-2H |
125CBZ-32 | 160 | 32 | 67 | 2950 | 30 | 5 | 421 | Y200L1-2H |
125CBZ-60 | 120 | 60 | 72 | 2900 | 37 | 6 | 480 | Y200L2-2H |
125CBZ-50 | 120 | 50 | 72 | 2900 | 30 | 5.5 | 420 | Y200L1-2H |
125CBZ-20 | 160 | 20 | 72 | 1450 | 18.5 | 5 | 420 | Y180M-4H |
150CBZ-20 | 200 | 20 | 75 | 1450 | 18.5 | 5 | 480 | Y180M-4H |
150CBZ-30 | 200 | 30 | 70 | 1450 | 37 | 7 | 490 | Y225S-4H |
150CBZ-45 | 200 | 45 | 70 | 1450 | 45 | 7 | 510 | Y225M-4H |
150CBZ-40 | 150 | 40 | 72 | 2900 | 30 | 5 | 480 | Y200L1-2H |
200CBZ-14 | 250 | 14 | 72 | 1450 | 18.5 | 7 | 480 | YI80M-4H |
200CBZ-45 | 300 | 45 | 71 | 1450 | 75 | 7 | 720 | Y280S-4H |
250CBZ-55 | 450 | 55 | 72 | 1450 | 110 | 5 | 844 | Y315S-4H |
