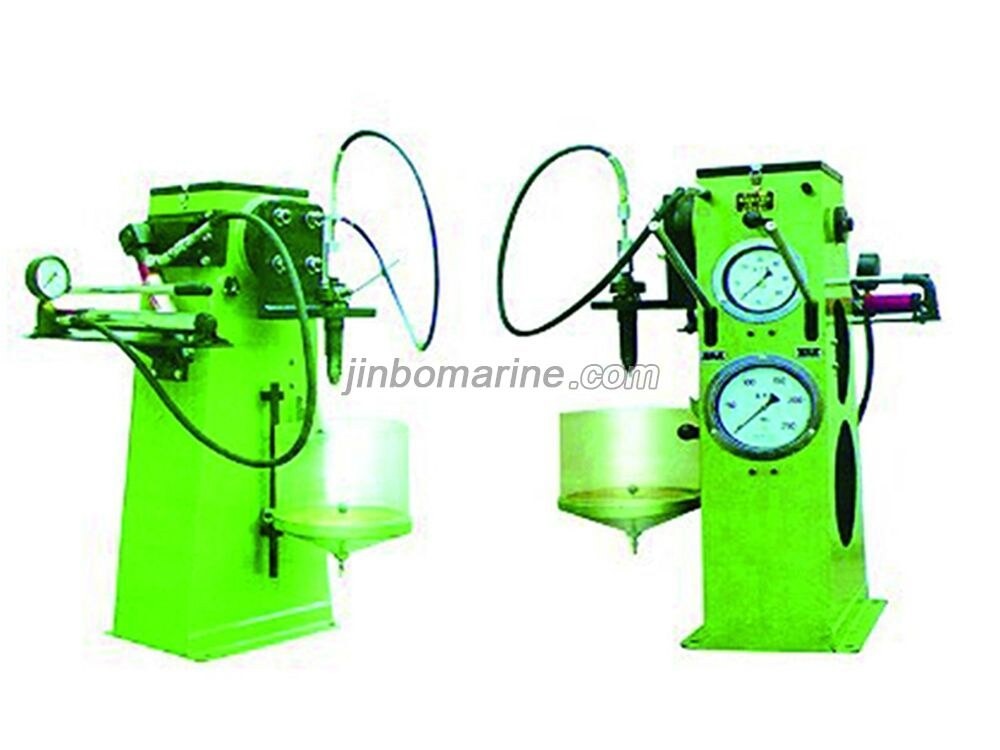

430 Injector Test Bench Pneumatic Hydraulic Pump
430 Injector test bench had injector test bench for B&W, SUL ZER, MAN and G0 taverken models, such as fuel injector test at low speed,As coastal passenger-cargo ship, ocean ship
the necessary test equipment. The test also can be adjusted with the aid of some
accessories cylinder head valve,Opening pressure and injection nut disassembling.
This test-bed is mainly composed of enclosure, manual high pressure oil pump
assembly, pressure gauges and other components. At present, the match on medium
speed machine injection, Trap specific and can be applied to NVD, 300, 350, etc.
Series of fuel injector test.
Technical data
| Name of parts | Strycture character parameter overall | |
| Box body kits | Overall dimension (mm2) | 350*500*1085 |
| High pressure oil pump unit assembly | φ plunger rated pressure value (kg/cm2) | 1600 |
| Hand oil pump | Rated pressure value (kg/cm2) | 600 |
| Jack unit assembly | Piston diameter(mm) | φ28.5 |
| Piston stroke(mm) | 120 | |
| Working pressure of oil cylinder (kg/cm2) | 600 | |
| Max stroke (mm) | 133 | |
| Max with stand weight(t) | 5 | |
| 130kg | Packing Size | 880x880x1320 |
