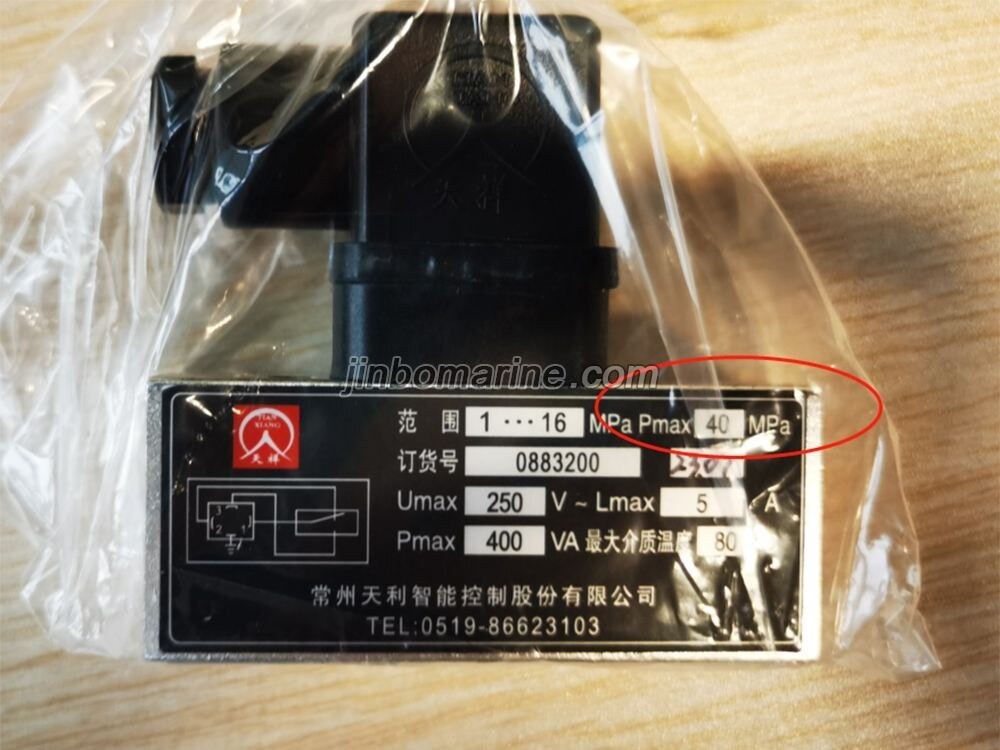

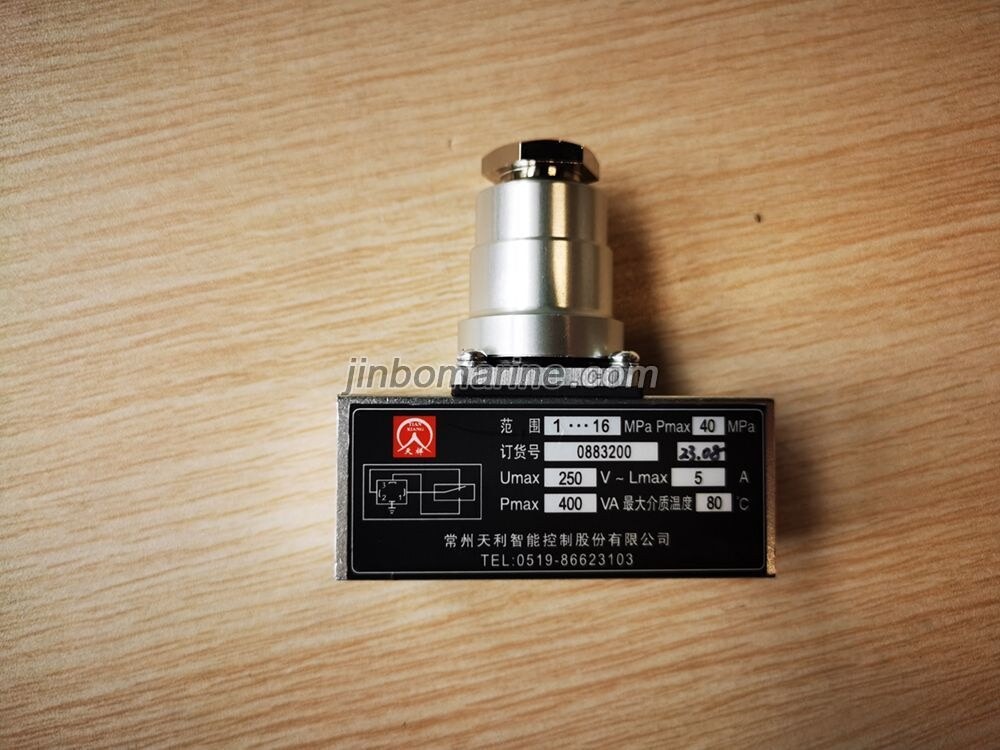

505-18D Pressure Controller

Request a Quote Not what you need, please send your RFQs via Email.

Details

China 505-18D Pressure Controller:

505/18D Pressure controller adopt piston type sensor without leakage, can use for hydraulic oil,lubrication oil,light fuel oil etc medium.

Its set point can be adjust,adjustment range is 0.5-40Mpa.

It can allow switch motion about 100 times per minutes.

Basis parameter:

Switch element: Micro switch

Protection class:IP54(conform to DIN40050,equivalent to IP54 of GB4208)

Installation position: Pressure interface straight down

Environment temperature: -25℃~55℃

Medium temperature:-25℃~80℃

Resistance to shock: Max 100m/s2

Contact point: AC 220V 6A
