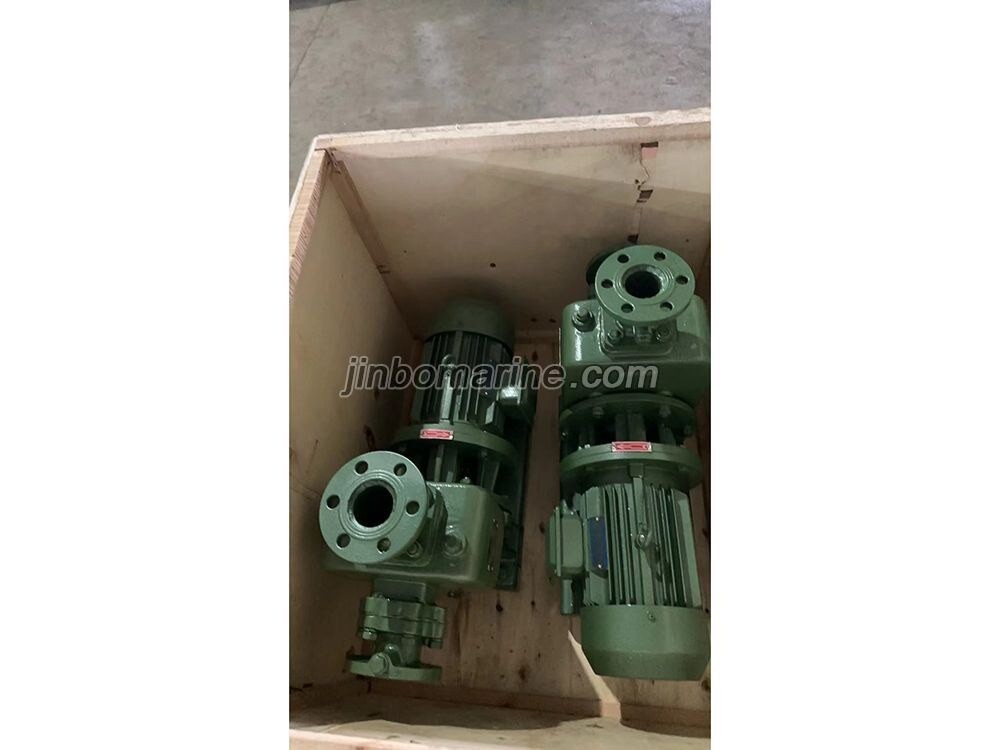

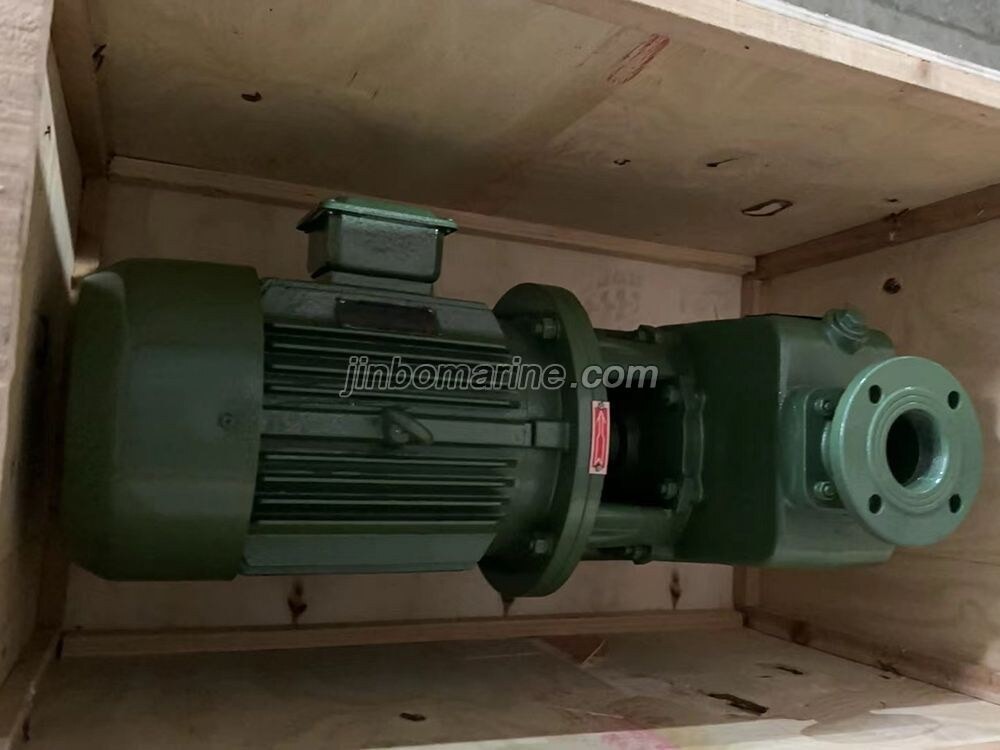

50CWZ-8 Marine horizontal self-priming centrifugal pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product overview

CWZ series marine horizontal self-priming centrifugal pump is suitable for marine cooling pump, sanitary pump, fire pump, bilge ballast pump, etc.

Low noise, stable performance, high work efficiency, and convenient operation

Techincal data:

Model Flow Rate Height NPSH Speed Motor
m3/h m m r/min kW
32CWZ-3 8 42 4 2950 4
32CWZ-4 8 30 4 2.2
32CWZ-5 8 21 4 1.5
40CWZ-4 12 42 4 4
40CWZ-5 12 30 4 3
40CWZ-6 12 21 4 2.2
50CWZ-5 21 42 4 5.5
50CWZ-6 21 30 4 4
50CWZ-8 21 21 4 3
50CWZ-11 21 15 4 2.2
65CWZ-5 30 60 5 15
65CWZ-6 36 42 5 11
65CWZ-8 36 30 4 5.5
65CWZ-11 36 21 4 4
80CWZ-5.5 60 75 5 30
80CWZ-6 60 50 5 22
80CWZ-11 60 30 4 11
80CWZ-14 60 21 4 7.5
100CWZ-6 100 85 5 55
100CWZ-8 100 60 5 37
100CWZ-11 100 40 5 22
100CWZ-14 100 30 5 15
100CWZ-18 100 21 5 11
150CWZ-16 180 30 4.5 37
150CWZ-22 200 25 4.5 37
