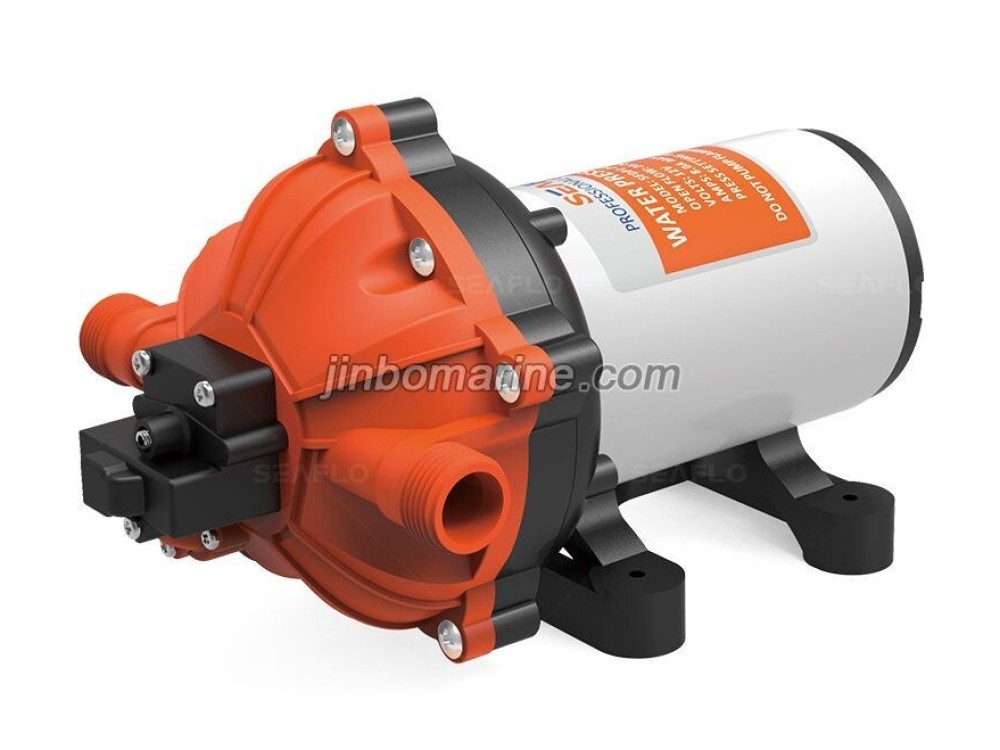

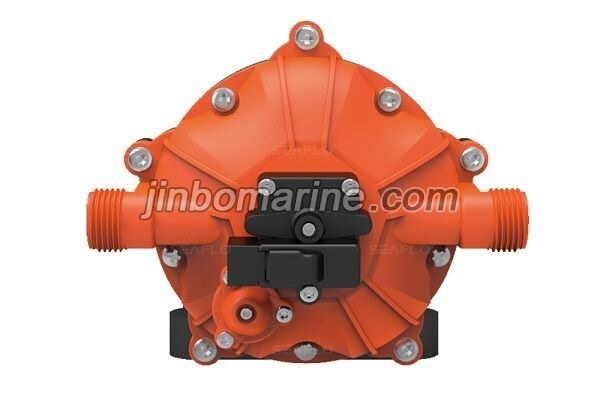

54 Series DC Diaphragm Pump
General description:
12V/24V 3.0-20.0LPM 17-70PSI
The 54-Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute, all are fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The 54-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed. They are easy to install service and winterize.
Parameter pump and motor:
| PUMP | |
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch & By pass control |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 5.5 lbs (2.5 kg) |
| MOTOR | |
| Leads | 14 AWG, 9.4" (24cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 17.0 A |
| Fuse | 25.5 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow (GPM/LPM) |
Control Type |
Max Draw |
Shut-off Pressure (PSI/BAR) |
Valves | Diaphragm | Ports |
Wire Connections |
| SFDP1-030-060-54 | 12V | 3.0 / 11.5 | switch & By pass | 12.0A | 60 / 4.2 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP2-030-060-54 | 24V | 3.0 / 11.5 | switch & By pass | 6.0A | 60 / 4.2 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP1-040-060-54 | 12V | 4.0 / 15.0 | switch & By pass | 15.0A | 60 / 4.2 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP2-040-060-54 | 24V | 4.0 / 15.0 | switch & By pass | 7.0A | 60 / 4.2 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP1-050-060-54 | 12V | 5.0 / 18.9 | switch & By pass | 17.0A | 60 / 4.2 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP2-050-060-54 | 24V | 5.0 / 18.9 | switch & By pass | 9.0A | 60 / 4.2 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
Consult factory for other available models.
