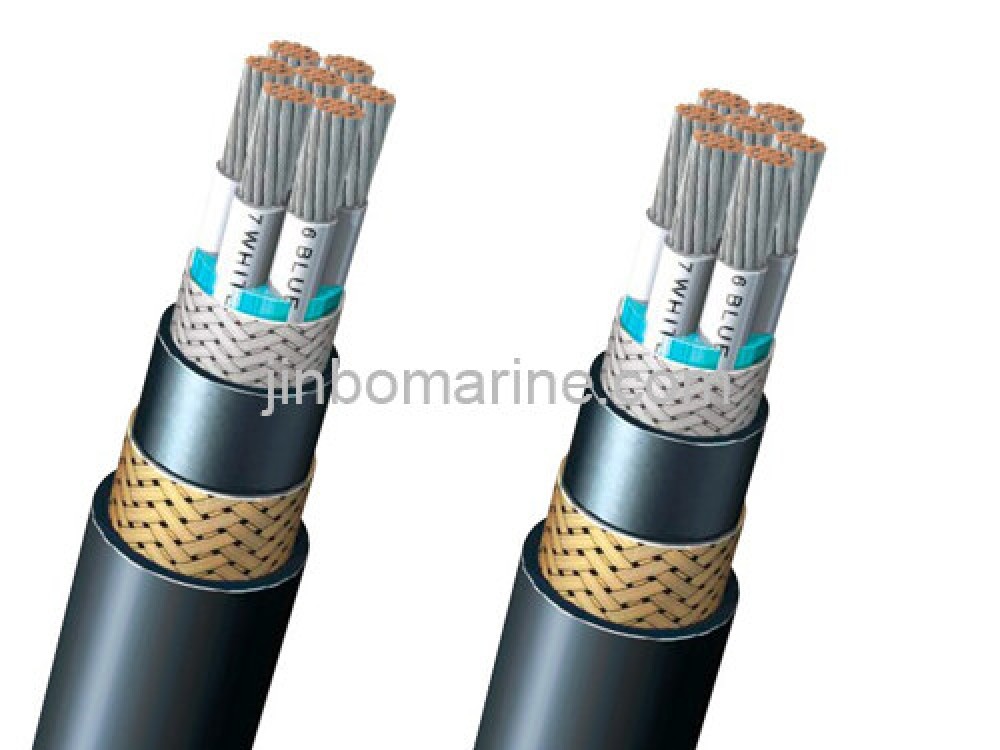

600V C(OS)PMBS Offshore Control Cable(Overall Shield)
- Category:IEEE Std 45/1580 Cable
- Material:Tinned Copper/XLPE Insulation/ Neoprene/ Bronze/ Neoprene
- Standards:IEEE 1580-2001
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Cable Type 600V
|
Flame retardant: C(OS)PN C(OS)PNA C(OS)PNB C(OS)PNBS C(OS)LSEL C(OS)LSELA C(OS)LSELB C(OS)LSELBS C(OS)PM C(OS)PMA C(OS)PMB C(OS)PMBS |
|
Fire resistant: FS-C(OS)PN FS-C(OS)PNA FS-C(OS)PNB FS-C(OS)PNBS FS-C(OS)LSEL FS-C(OS)LSELA FS-C(OS)LSELB FS-C(OS)LSELBS FS-C(OS)PM FS-C(OS)PMA FS-C(OS)PMB FS-C(OS)PMBS |
Cable Construction
|
Classification |
Code |
Construction details |
|
Conductor |
Annealed Stranded Copper Wire |
|
|
Cable Type |
C |
Control Cable |
|
Fire-resisting(Optional) |
FS |
Mica Tape |
|
Insulation |
P |
Cross-Linked Polyolefin |
|
LSE |
Low Smoke EP Rubber |
|
|
Overall Shied |
OS |
AL/PS Overall tape with tinned copper wire 100% coverage over the cable core |
|
Jacket |
N |
Flame Retardant Thermosetting Neoprene |
|
L |
Flame Retardant Low Smoke XLPO |
|
|
M |
Flame Retardant Mud Resistant XLPO |
|
|
Armor(Optional) |
B |
Bronze |
|
T |
Tinned Copper Wire |
|
|
Outer Sheath(Optional) |
S |
Same as Jacket |
Standards
IEEE 1560(2001) IEC 45(1998)
UL 1309/CSA C 22.2 NO. 245(1995)
IEEE 1202(1991)
IEC 60332-3 Category A
CSA C 22.2 NO.38(at -40℃)
IEC 60331-1(FS type Cable)
NEK 606
Cores & Size
Cores: 3 4 5 7 10 12 14 16 19 25
Size (AWG or MCM):20 18 1614 12 10
Application:
The cable is fixed installation for control, voltage up to 600V, apply for commercial marine, shipping building, MODU’S and Platform.
Advantage of IEEE 1580 Cable
Flame retardant
Fire-resistant (FS Type)
Resistance to oil, abrasion, petrochemical fluid, moisture and sunlight
Excellent flexibility
Mud Resistant
