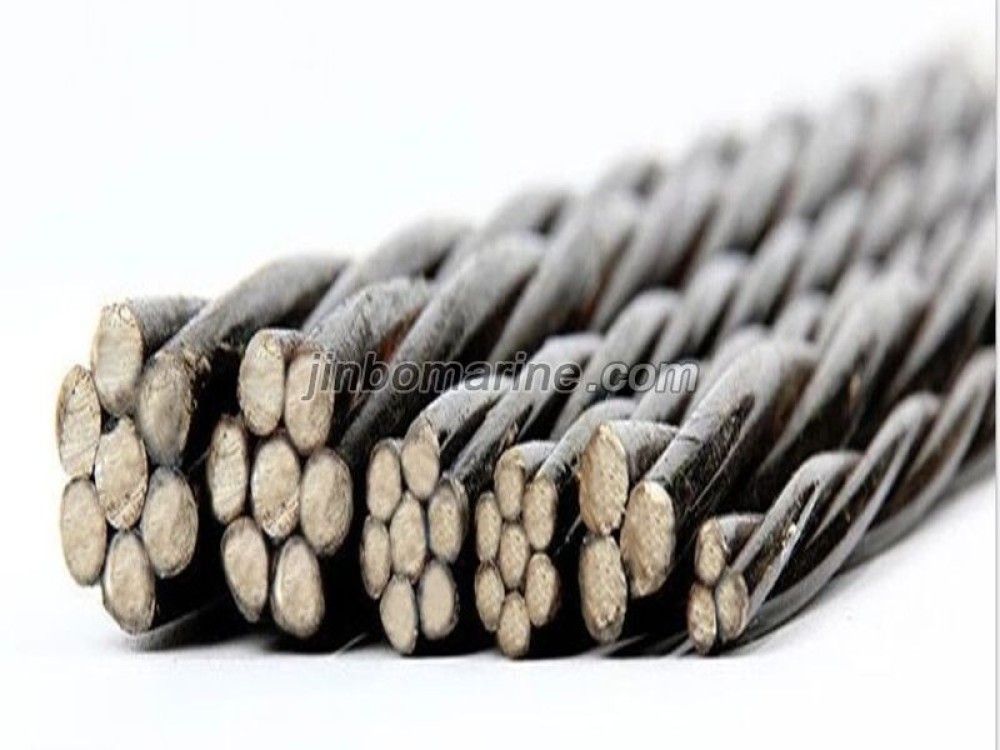

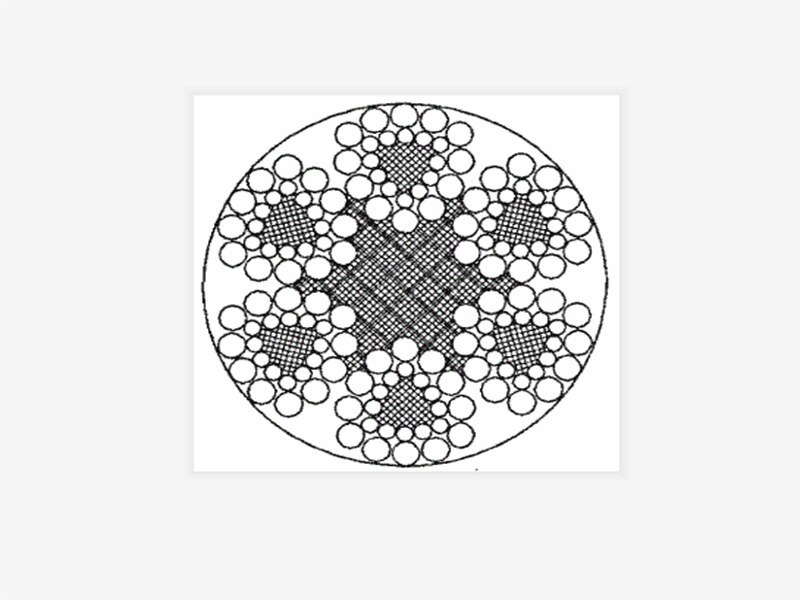

6VX24+7FC Steel Wire Rope

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.
d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

Diameter MM	Approx.Weight		Minimun Breaking Load of Rope（KN)
	Kg/100m		1570Mpa	1670Mpa	1770Mpa	1870Mpa	1960Mpa
	NF	SF
18	121	118	168	179	190	201	210
20	149	146	208	221	234	248	260
22	180	177	252	268	284	300	314
24	215	210	300	319	338	357	374
26	252	247	352	374	396	419	439
28	292	286	408	434	460	486	509
30	335	329	468	498	528	557	584
32	382	374	532	566	600	634	665
34	431	422	601	639	678	716	750
36	483	473	674	717	760	803	841

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
