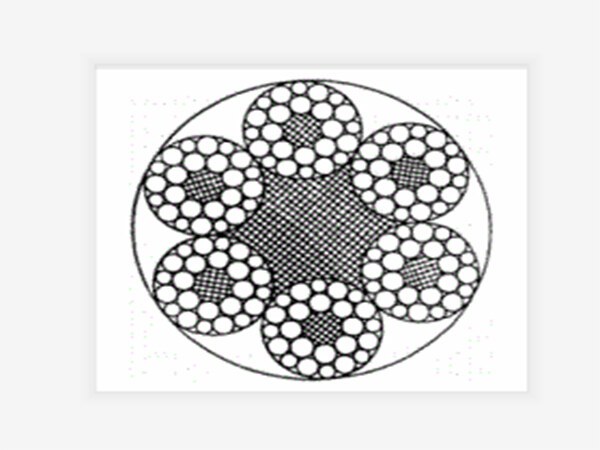

6X24W+7FC Steel Wire Rope

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

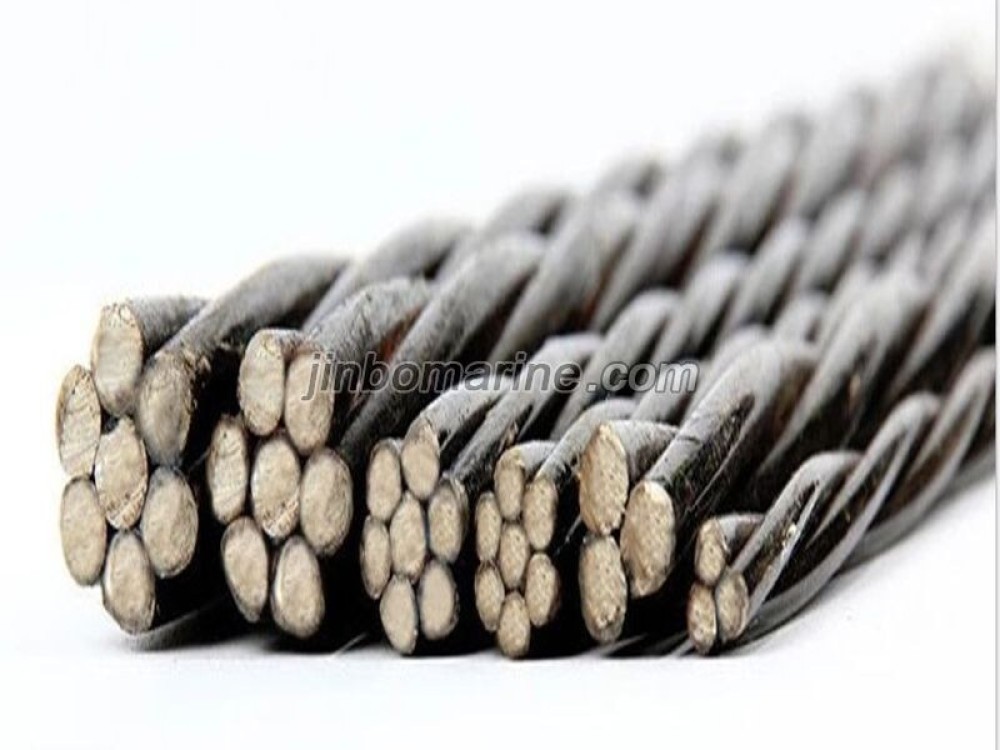

d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

Nominal diameter MM	Approx.Weight Kg/100m		Minimun Breaking Load of Rope（KN)
	NF	SF	1470Mpa	1570Mpa	1670Mpa	1770Mpa
10	33.1	33.6	42.8	45.7	48.6	51.5
11	40	38.2	51.8	55.3	58.8	62.3
12	47.7	45.5	61.6	65.8	70	74.2
13	55.9	53.4	72.3	77.2	82.1	87
14	64.9	61.9	83.8	90	95.3	101
16	84.7	80.9	110	117	124	132
18	107	102	139	148	157	167
20	132	126	171	183	194	206
22	160	153	207	221	235	249
24	191	182	246	263	280	297
26	224	214	289	309	329	348
28	560	248	335	358	381	404
30	298	284	385	411	437	464
32	339	324	438	468	498	527
34	383	365	495	528	562	595
36	429	410	554	592	630	668
38	478	456	618	660	702	744
40	530	506	684	731	778	824
42	584	557	755	806	857	909
44	641	612	828	885	941	997

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
