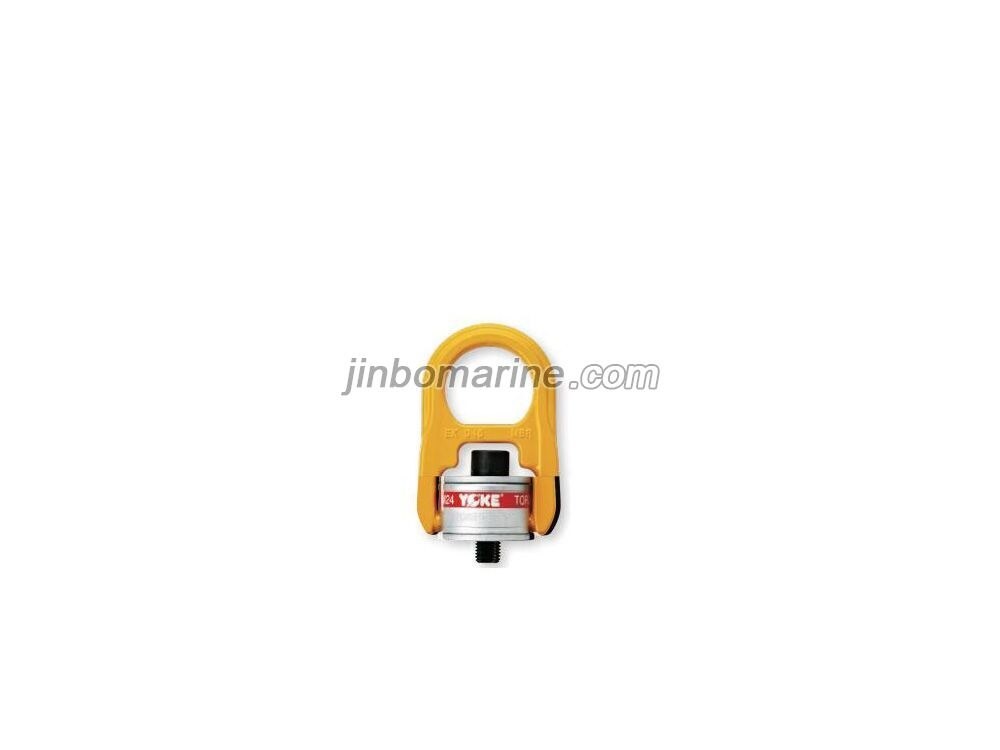

8-204 Yoke Rotary Hoist Rings Screw With Unc Thread
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

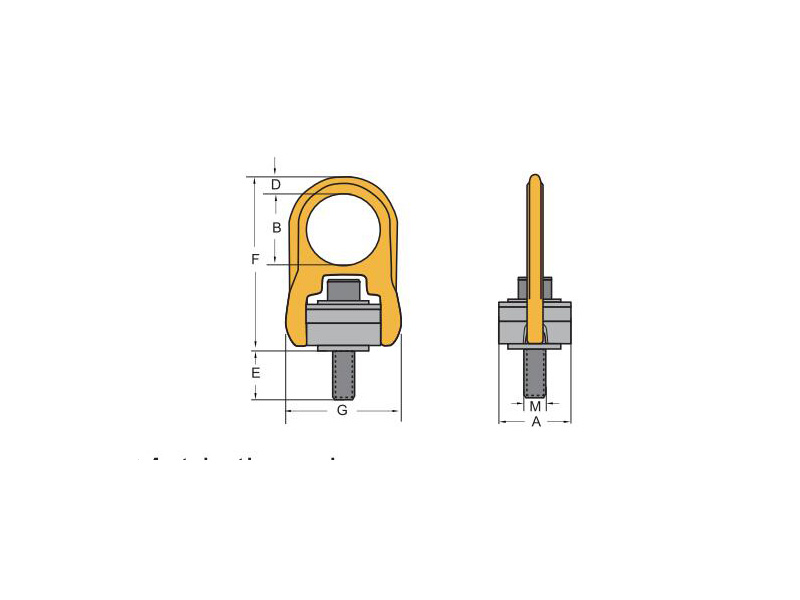

8-204 Yoke Rotary Hoist Rings Screw With Unc Thread Drawing
8-204 Yoke Rotary Hoist Rings Screw With Unc Thread Parameters
ITEM NO. | WLL/LBS | TPI | WEIGHT/KG |
8-204-004 | 800 | 5/16-18UNC | 0.9 |
8-204-005 | 1000 | 3/8-16UNC | 0.9 |
8-204-010 | 2500 | 1/2-13UNC | 3.7 |
8-204-010L | 2500 | 1/2-13UNC | 3.7 |
8-204-019 | 4000 | 5/8-11UNC | 4.0 |
8-204-019L | 4000 | 5/8-11UNC | 4.0 |
8-204-021 | 5000 | 3/4-10UNC | 4.0 |
8-204-021L | 5000 | 3/4-10UNC | 4.2 |
8-204-030 | 7000 | 3/4-10UNC | 8.8 |
8-204-030L | 7000 | 3/4-10UNC | 9.5 |
8-204-042 | 8000 | 7/8-9UNC | 9.3 |
8-204-042L | 8000 | 7/8-9UNC | 9.7 |
8-204-045 | 10000 | 1-8UNC | 9.5 |
8-204-045L | 10000 | 1-8UNC | 10.1 |
8-204-070 | 15000 | 1 1/4-7UNC | 14.5 |
8-204-125 | 24000 | 1 1/2-6UNC | 35.2 |
8-204-135 | 30000 | 2-4.5UNC | 35.2 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||||
8-204-004 | A | B | D | E | F | G |
8-204-005 | 1.57 | 1.61 | 0.35 | 0.71 | 4.02 | 2.56 |
8-204-010 | 1.57 | 1.61 | 0.35 | 0.71 | 4.02 | 2.56 |
8-204-010L | 2.56 | 2.32 | 0.59 | 0.75 | 6.26 | 4.13 |
8-204-019 | 2.56 | 2.32 | 0.59 | 1.26 | 6.26 | 4.13 |
8-204-019L | 2.56 | 2.32 | 0.59 | 0.74 | 6.26 | 4.13 |
8-204-021 | 2.56 | 2.32 | 0.59 | 1.75 | 6.26 | 4.13 |
8-204-021L | 2.56 | 2.87 | 0.59 | 1.24 | 6.26 | 4.13 |
8-204-030 | 2.56 | 2.87 | 0.59 | 1.73 | 6.26 | 4.13 |
8-204-030L | 2.56 | 2.87 | 0.87 | 0.87 | 8.03 | 5.28 |
8-204-042 | 3.95 | 2.87 | 0.87 | 1.43 | 8.03 | 5.28 |
8-204-042L | 3.95 | 2.87 | 0.87 | 2.37 | 8.03 | 5.28 |
8-204-045 | 3.95 | 2.87 | 0.87 | 1.36 | 8.03 | 5.28 |
8-204-045L | 3.95 | 2.87 | 0.87 | 2.36 | 8.03 | 5.28 |
8-204-070 | 3.95 | 3.15 | 1 | 2.25 | 8.58 | 6.30 |
8-204-125 | 4.72 | 4.29 | 1.38 | 2.17 | 12.09 | 8.66 |
8-204-135 | 4.72 | 4.29 | 1.38 | 3.01 | 12.09 | 8.66 |
