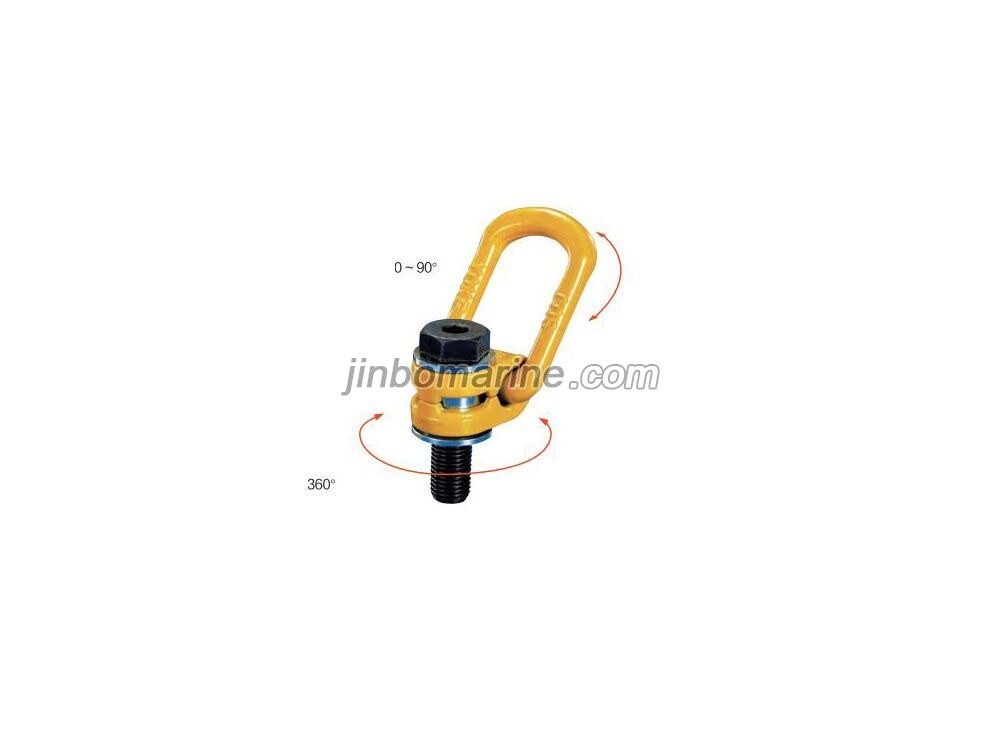

8-211 YOKE Lifting Point With Metric Thread
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

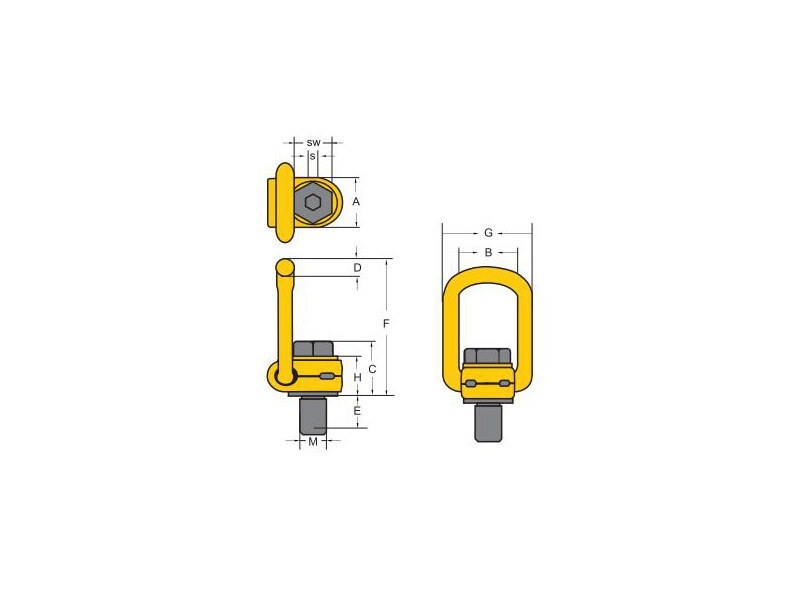

8-211 YOKE Lifting Point With Metric Thread Drawing
8-211 YOKE Lifting Point With Metric Thread Parameters
ITEM NO. | WLL/T | THREAD/M | WEIGHT/KG |
8-211-003 | 0.3 | M8X1.25 | 0.2 |
8-211-006 | 0.63 | M10X1.5 | 0.3 |
8-211-010 | 1 | M12X1.75 | 0.5 |
8-211-012 | 1.2 | M14X2.0 | 0.5 |
8-211-015 | 1.5 | M16X2 | 0.5 |
8-211-020 | 2 | M18X2 | 1.3 |
8-211-025 | 2.5 | M20X2.5 | 1.3 |
8-211-040 | 4 | M24X3 | 1.4 |
8-211-042 | 4 | M27X3 | 2.8 |
8-211-050 | 5 | M30X3.5 | 3.1 |
8-211-070 | 7 | M36X4 | 3.3 |
8-211-080 | 8 | M36X4 | 5.8 |
8-211-100 | 10 | M42X4.5 | 6.3 |
8-211-150 | 15 | M42X4.5 | 10.8 |
8-211-200 | 20 | M48X5 | 11.6 |
ITEM NO. | TECHNICAL PARAMETERS/MM | ||||
A | B | C | D | E | |
8-211-003 | 30 | 35 | 35 | 10 | 11 |
8-211-006 | 30 | 35 | 36 | 10 | 16 |
8-211-010 | 33 | 37 | 44 | 14 | 18 |
8-211-012 | 33 | 37 | 45 | 14 | 21 |
8-211-015 | 33 | 37 | 46 | 14 | 24 |
8-211-020 | 50 | 54 | 57 | 17 | 26 |
8-211-025 | 50 | 54 | 57 | 17 | 30 |
8-211-040 | 50 | 54 | 59 | 17 | 36 |
8-211-042 | 60 | 65 | 79 | 23 | 38 |
8-211-050 | 60 | 65 | 81 | 23 | 45 |
8-211-070 | 60 | 65 | 88 | 23 | 54 |
8-211-080 | 77 | 85 | 101 | 27 | 62 |
8-211-100 | 77 | 85 | 104 | 27 | 72 |
8-211-150 | 95 | 104 | 112 | 36 | 63 |
8-211-200 | 95 | 104 | 120 | 36 | 72 |
ITEM NO. | TECHNICAL PARAMETERS/MM | ||||
F | G | H | S | SW | |
8-211-003 | 85 | 55 | 29 | 6 | 13 |
8-211-006 | 85 | 55 | 29 | 6 | 17 |
8-211-010 | 98 | 57 | 36 | 8 | 19 |
8-211-012 | 98 | 57 | 36 | 10 | 22 |
8-211-015 | 98 | 57 | 36 | 10 | 24 |
8-211-020 | 140 | 82 | 44 | 12 | 30 |
8-211-025 | 140 | 82 | 44 | 12 | 30 |
8-211-040 | 140 | 82 | 44 | 14 | 36 |
8-211-042 | 170 | 99 | 62 | 17 | 41 |
8-211-050 | 170 | 99 | 62 | 17 | 46 |
8-211-070 | 178 | 99 | 65 | 22 | 55 |
8-211-080 | 225 | 124 | 78 | 22 | 55 |
8-211-100 | 225 | 124 | 78 | 24 | 65 |
8-211-150 | 256 | 158 | 86 | 24 | 65 |
8-211-200 | 259 | 158 | 90 | 27 | 75 |
