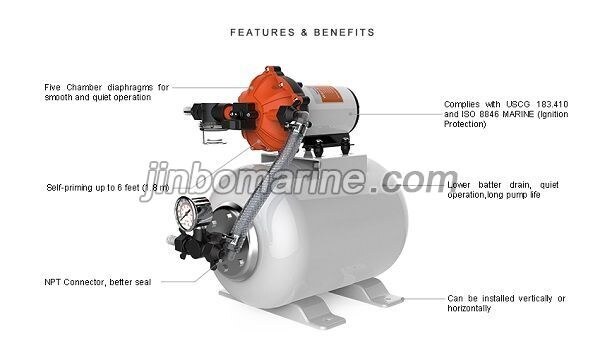

8L Pump Accumulator Pressure Boost System
A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.
Parameter pump and motor
| PUMP | |
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 11.9 lbs (5.4 kg) |
| MOTOR | |
| Leads | 14 AWG, 13" (33cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 18.9 A |
| Fuse | 28.4 A |
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage |
Control Type |
Open Flow （GPM/LPM) |
Pressure On |
Pressure Off |
Max Draw |
Ports |
Wire Connections |
| SFWSK1-030-060-0021 | 8L | 12V | Switch | 3.0 / 11.5 | 40 / 2.8 | 60 / 4.2 | 10.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK2-030-060-0021 | 8L | 24V | Switch | 3.0 / 11.5 | 40 / 2.8 | 60 / 4.2 | 5.5A | 1/2" barb | 2-Pin/Leads |
| SFWSK1-040-060-0021 | 8L | 12V | Switch | 4.0 / 15.0 | 40 / 2.8 | 60 / 4.2 | 13.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK2-040-060-0021 | 8L | 24V | Switch | 4.0 / 15.0 | 40 / 2.8 | 60 / 4.2 | 7.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK1-050-060-0021 | 8L | 12V | Switch | 5.0 / 18.9 | 40 / 2.8 | 60 / 4.2 | 17.0A | 1/2" barb | 2-Pin/Leads |
| SFWSK2-050-060-0021 | 8L | 24V | Switch | 5.0 / 18.9 | 40 / 2.8 | 60 / 4.2 | 9.0A | 1/2" barb | 2-Pin/Leads |
