AC-14 HHP Anchor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

AC-14 Type High Holding Power Anchor

AC 14 Anchor is high holding power anchor, which was developed from stockless anchor; AC-14 HHP Anchor apply to all kinds of seabed(Mud, Soil, Sand, Sandstone, etc.), dig into the seabed quickly and excellent stability, holding-power-to-weight is up to 14.

All AC 14 anchors could be supplied with Classification Certificate, LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS Certificate.

AC-14 HHP Anchor used for shipping or agriculture industry.

AC-14 Anchors Specification:

Material: Casting Steel

Weight: 75KGS to 30000KGS

Finish: Blacking Painting.

Class Certificate: LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS

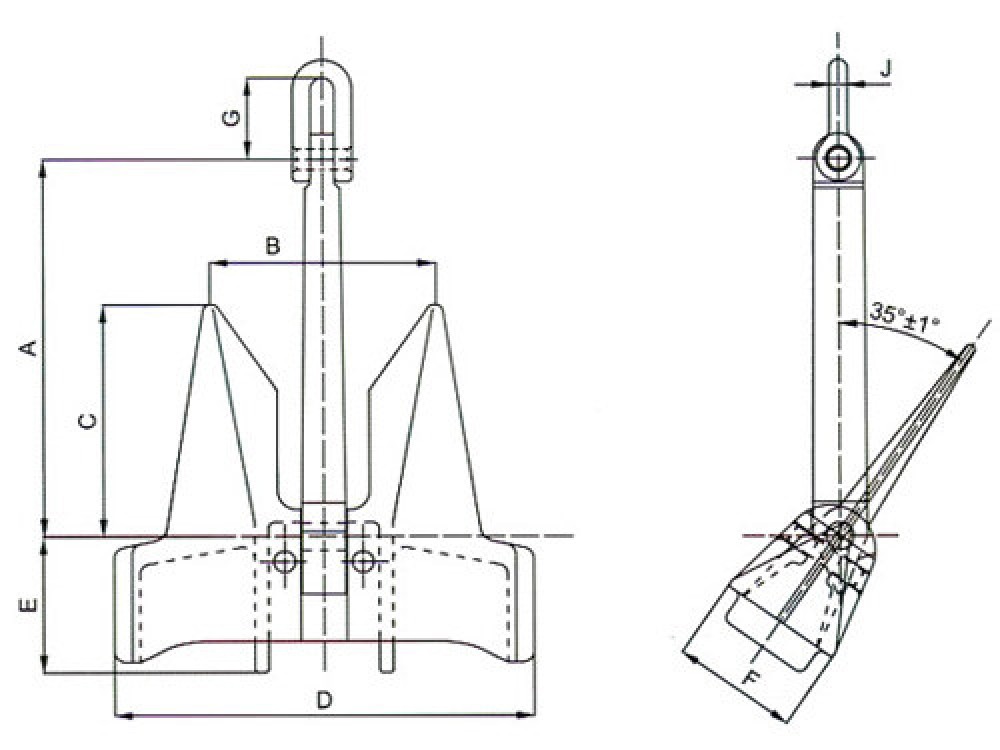

AC-14 Anchor Weights:

Weight/Mass
(KG) 		Size(mm)
A B C D E F G J
56KGS 612 298 376 555 109 170 115 24
100KGS 745 364 458 675 130 200 130 28
180KGS 909 442 558 822 162 252 160 36
300KGS 1075 524 660 975 194 298 192 45
428KGS 1213 590 745 1098 215 336 215 48
675KGS 1410 690 868 1278 250 390 255 60
750KGS 1450 700 878 1315 256 396 255 60
910KGS 1560 760 957 1410 273 430 255 60
970KGS 1592 775 978 1445 284 440 280 62
1080KGS 1650 805 1014 1495 294 455 280 62
1305KGS 1760 858 1082 1595 313 485 310 68
1440KGS 1818 885 1118 1645 324 505 310 68
1710KGS 1925 940 1184 1745 343 532 340 74
1845KGS 1975 965 1215 1785 347 546 340 74
2100KGS 2065 1005 1268 1865 354 570 380 82
2475KGS 2175 1062 1340 1970 385 605 385 82
2835KGS 2265 1105 1393 2055 399 625 410 90
3550KGS 2455 198 1508 2225 438 680 415 100
3940KGS 2540 1240 1562 2300 453 705 450 100
4500KGS 2655 1295 1632 2405 473 735 450 100
4840KGS 2720 1330 1670 2465 490 755 480 110
4610KGS 2858 1396 1758 2590 509 790 500 110
6000KGS 2922 1426 1796 2646 515 810 500 110
6900KGS 3062 1496 1884 2775 545 848 540 117
7800KGS 3190 1558 1962 2890 569 884 600 130
8300KGS 3256 1590 2002 2950 574 902 600 130
9300KGS 3382 1652 2080 3064 606 936 630 135
9900KGS 3452 1686 2124 3128 616 956 640 140
10575KGS 3523 1720 2166 3192 628 976 660 145
11100KGS 3589 1720 2166 3192 628 976 660 145
11700KGS 3650 1782 2245 3308 648 1010 680 150
12300KGS 3683 1794 2260 3330 655 1018 700 155
12900KGS 3772 1842 2320 3418 670 1044 700 155
13500KGS 3830 1870 2355 3470 682 1060 730 160
14100KGS 3885 1896 2389 3520 689 1076 730 160
14700KGS 3940 1924 2423 3570 700 1090 730 160
15400KGS 4002 1954 2461 3626 710 1108 730 160
16100KGS 4062 1982 2498 3680 721 1125 770 170
16900KGS 4128 2016 2538 3740 721 1144 700 170
17800KGS 4200 2050 2583 3806 725 1162 800 180
18800KGS 4277 2088 2630 3875 729 1185 800 180
20000KGS 4350 2101 2694 3945 729 1185 820 199
25000KGS 5046 2437 3125 4577 846 1375 848 230

Fast Delivery(Incoterms 2010)

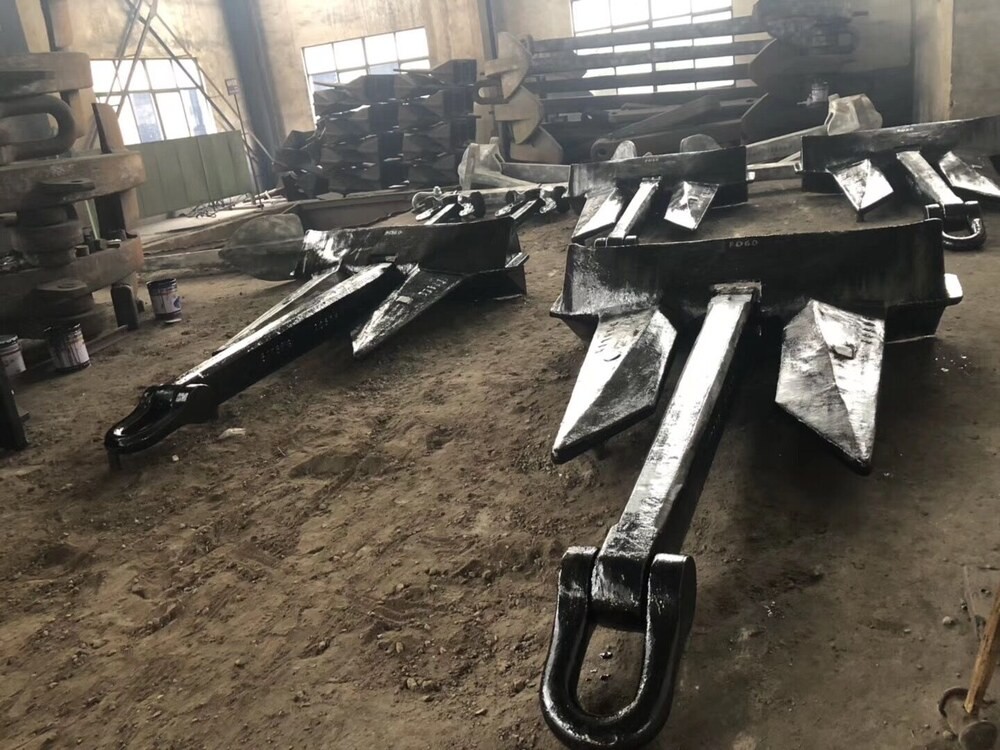

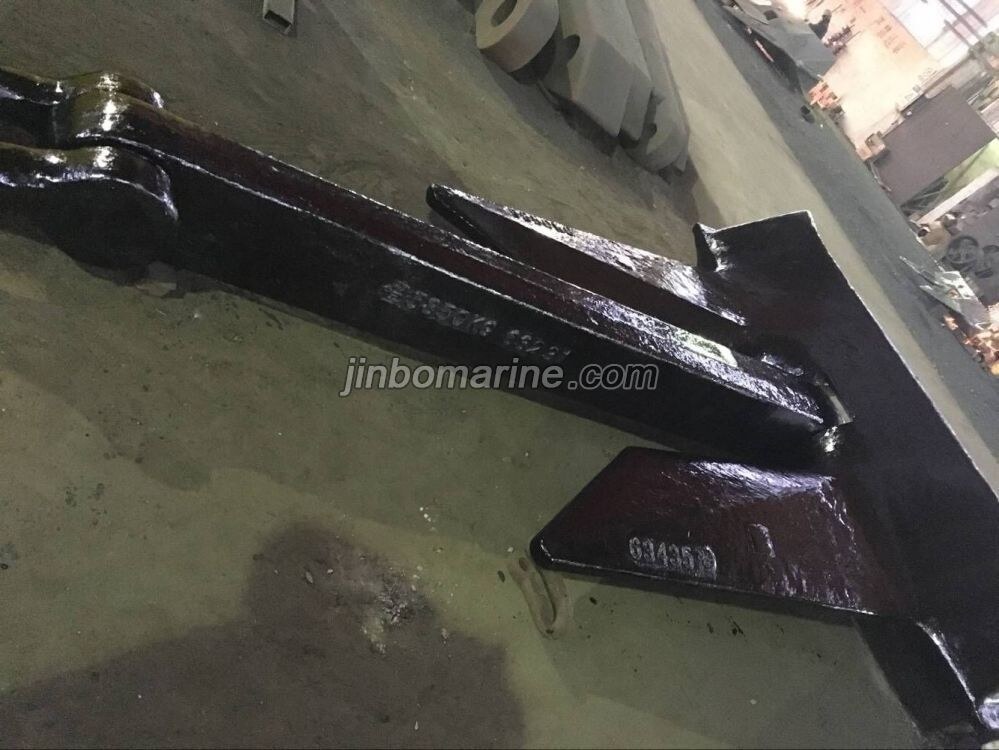

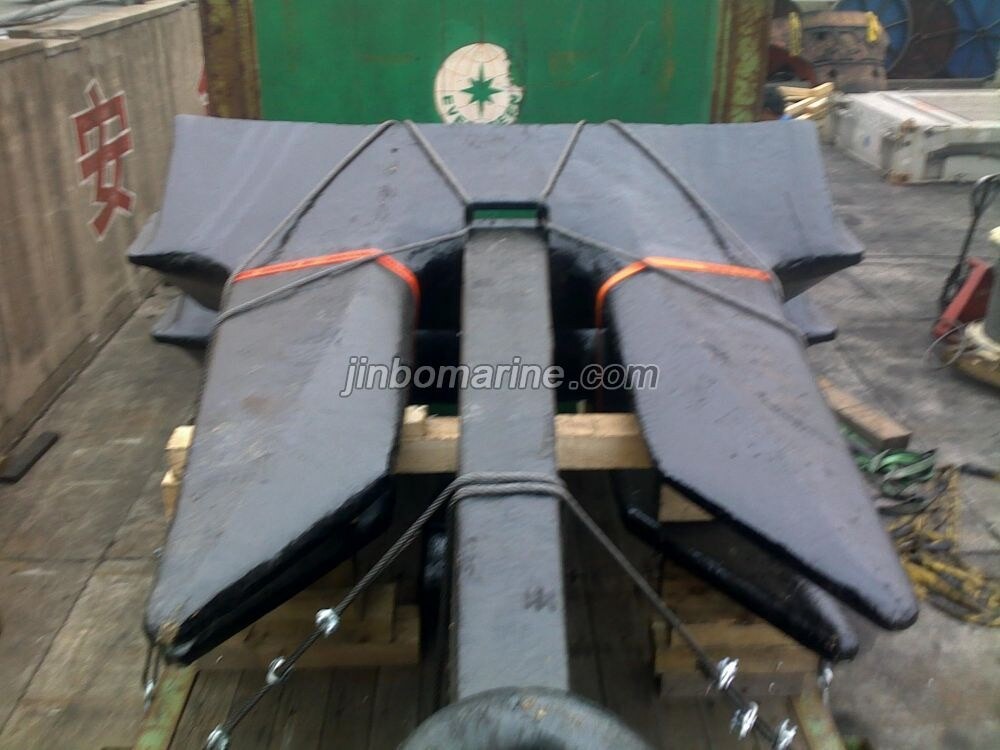

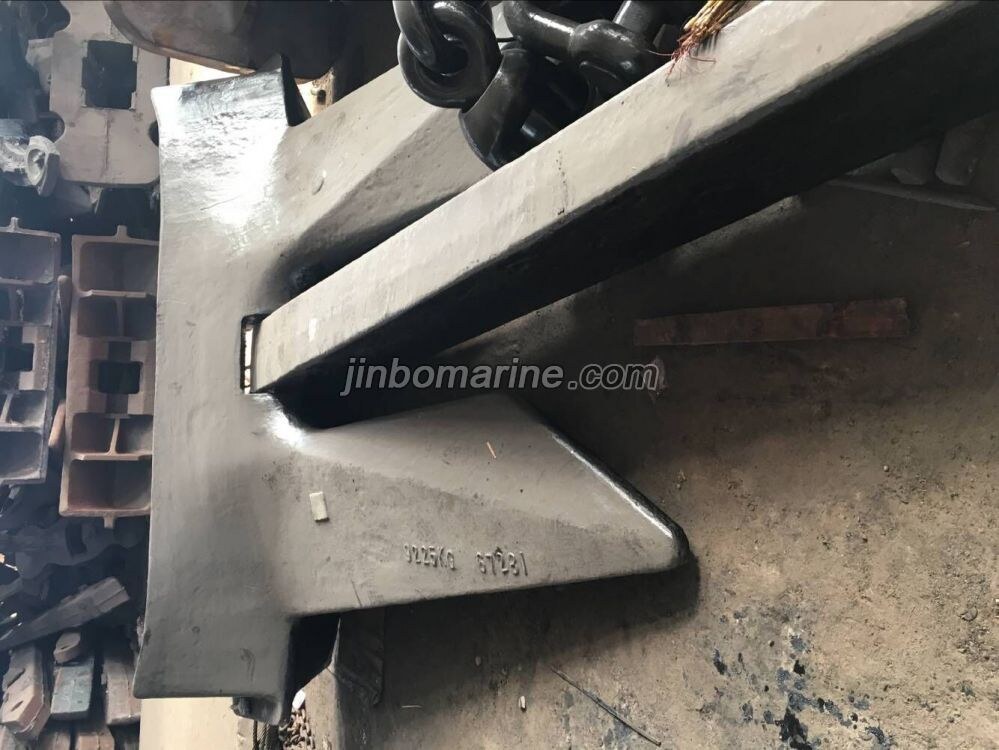

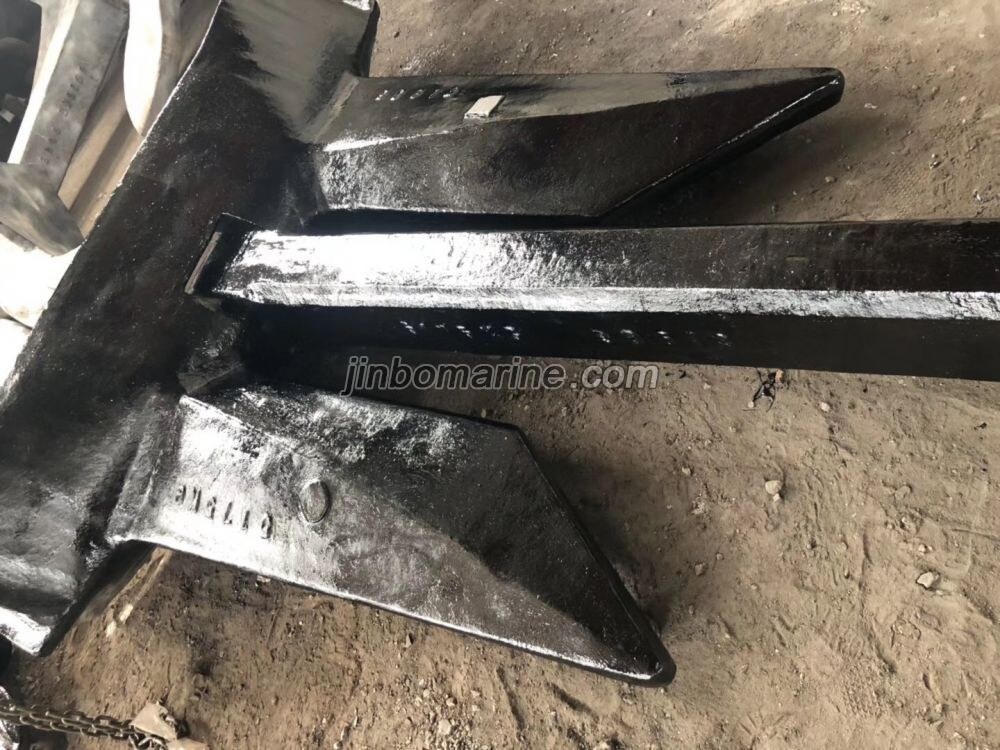

AC-14 HHP Anchor Photo
