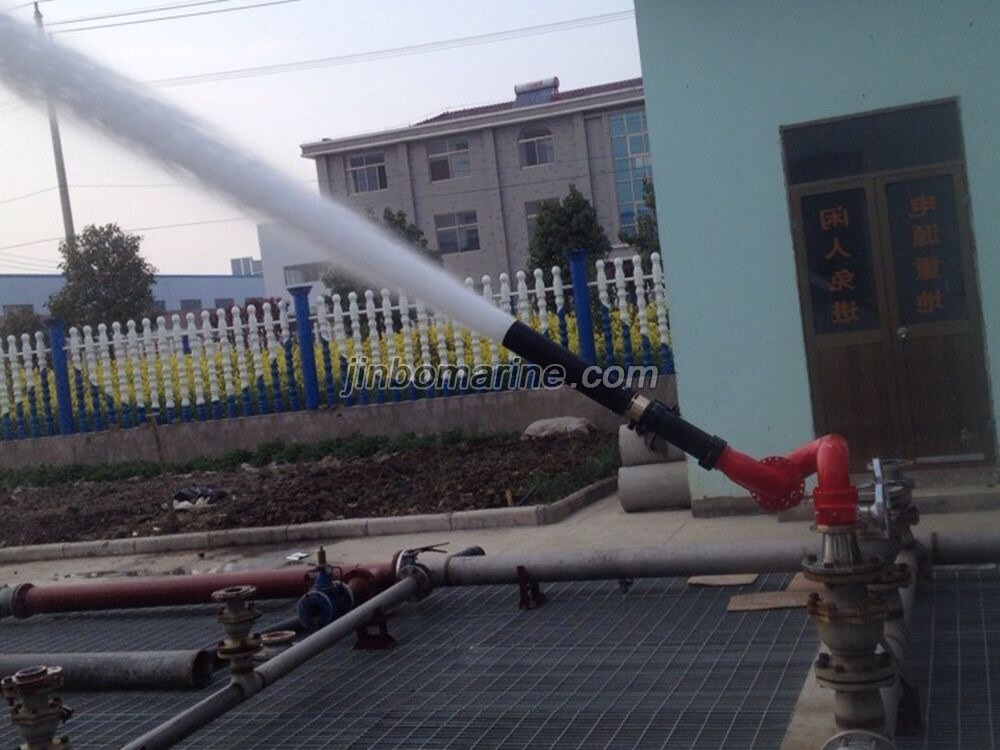

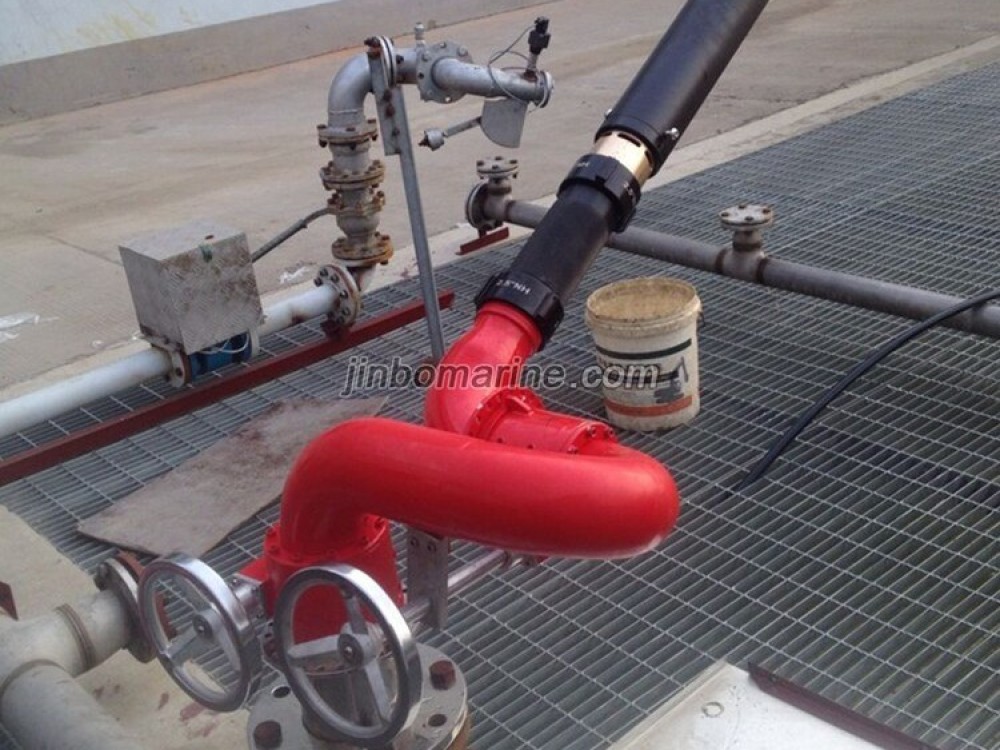

Adjustable Foam And Water Fire Monitor PS24-64B
- Category:Manual Operated Fire Monitor
- Supply Ability:10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Adjustable Foam And Water Fire Monitor PS24-64B:
Type: PL24-64B
Flow Range: 24-64 L/S Adjustable (380-1000GPM)
Working Pressure: 10 bar
Max Reach @ Max Flow: 65m (Water) and 60M (Foam)
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle :120°
Material (body):Aluminum
Material (Gear):bronze
Material (nozzle):Aluminum, with stream sharper
Material (handwheel) : chromate cast iron
Pump requirement for minimum performance:64L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet:2.5 inch (65mm)
Paint: Fire Red
Flow Range: 24-64 L/S Adjustable (380-1000GPM)
Working Pressure: 10 bar
Max Reach @ Max Flow: 65m (Water) and 60M (Foam)
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle :120°
Material (body):Aluminum
Material (Gear):bronze
Material (nozzle):Aluminum, with stream sharper
Material (handwheel) : chromate cast iron
Pump requirement for minimum performance:64L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet:2.5 inch (65mm)
Paint: Fire Red
