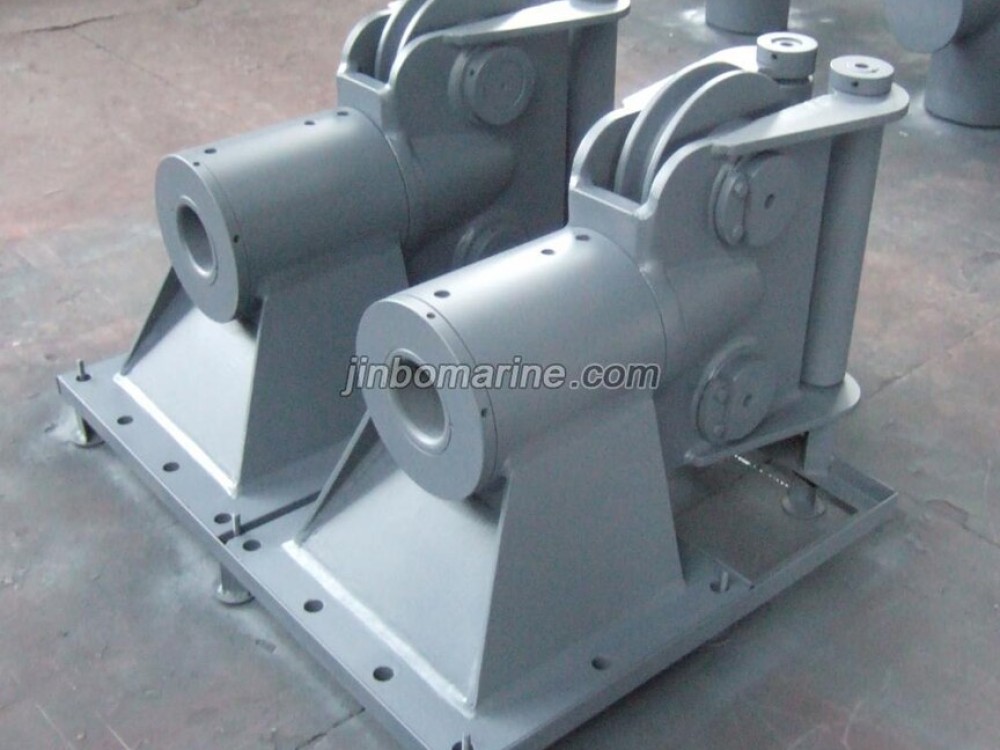

AF-38 Marine Swivel Anchor Fairlead
- Category:Marine Fairlead
- Material:Steel.
- Certificate:ABS , BV, CCS, mill certificate etc.
- Standards:Can be designed according to your drawing.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Af 38 Marine Swivel Anchor Fairlead.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Swivel anchor fairlead,rotating fairlead,flange mounted marine fairlead,multi-angle fairlead.
Feature:
1.Reliable quality.
2.Fast delivery time.
3.Durable, long lifetime.
4.Customized service is available。
We can supply all kinds of fairlead,we can also make these products according to buyer's drawings.

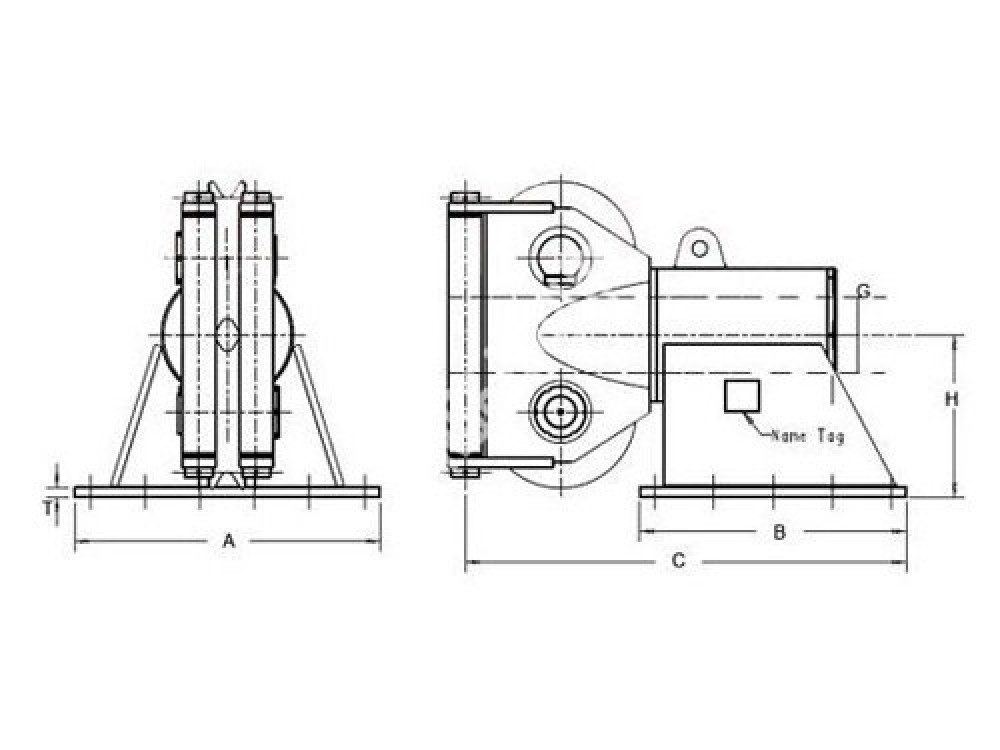

Size chart:
| AF-38 Anchor fairlead | |||||||||
| Wire Rope Dia. | Sheave Dia.(mm) | Dimension(mm) | Mass Weight | ||||||
| mm | inch | A | B | C | T | H | G | kg | |
| 25 | 1" | 254 | 559 | 356 | 679 | 20 | 292 | 90 | 420 |
| 32 | 1-1/4" | 305 | 711 | 508 | 889 | 30 | 343 | 100 | 720 |
| 38 | 1-1/2" | 406 | 762 | 762 | 1296 | 40 | 459 | 150 | 1080 |
| 44 | 1-3/4" | 508 | 1067 | 914 | 1568 | 50 | 546 | 190 | 2260 |
| 50 | 2 | 610 | 1219 | 1067 | 1893 | 50 | 648 | 220 | 2480 |
| 64 | 2-1/2" | 762 | 1372 | 1219 | 2127 | 60 | 800 | 250 | 2900 |
