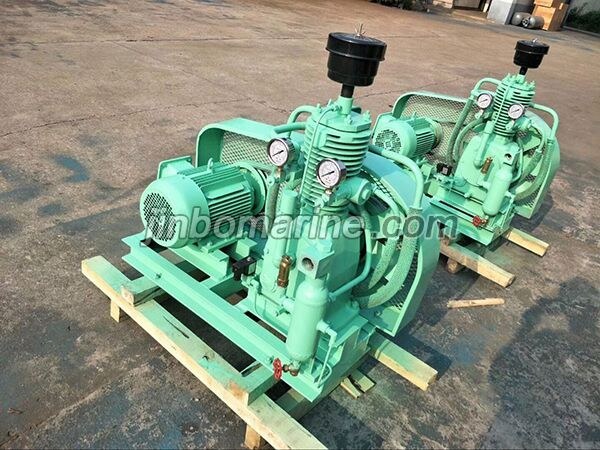

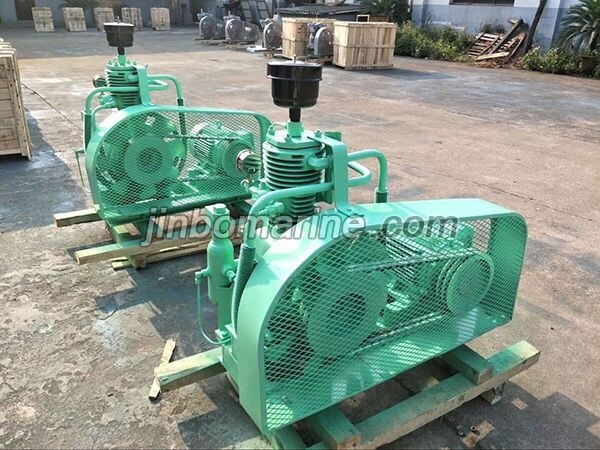

Air Cooling Piston Type Marine Air Compressor CZF-33
- Category:Medium Pressure Air Cooled Marine Air Compressor
- Certificate:CCS certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Air Cooling Piston Type Marine Air Compressor CZF-33:
Medium pressure 30 bar.
Single-cylinder,Vertical type,Second stage compression,Piston type.
Suitable for air bottle equal or smaller than 0.32 m3.

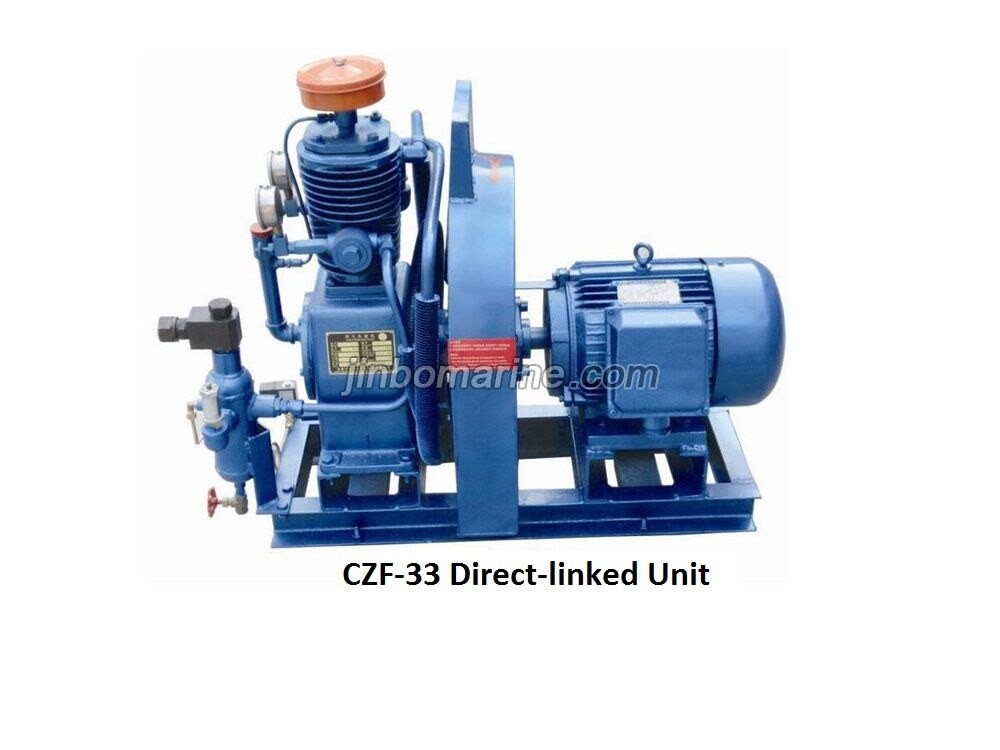

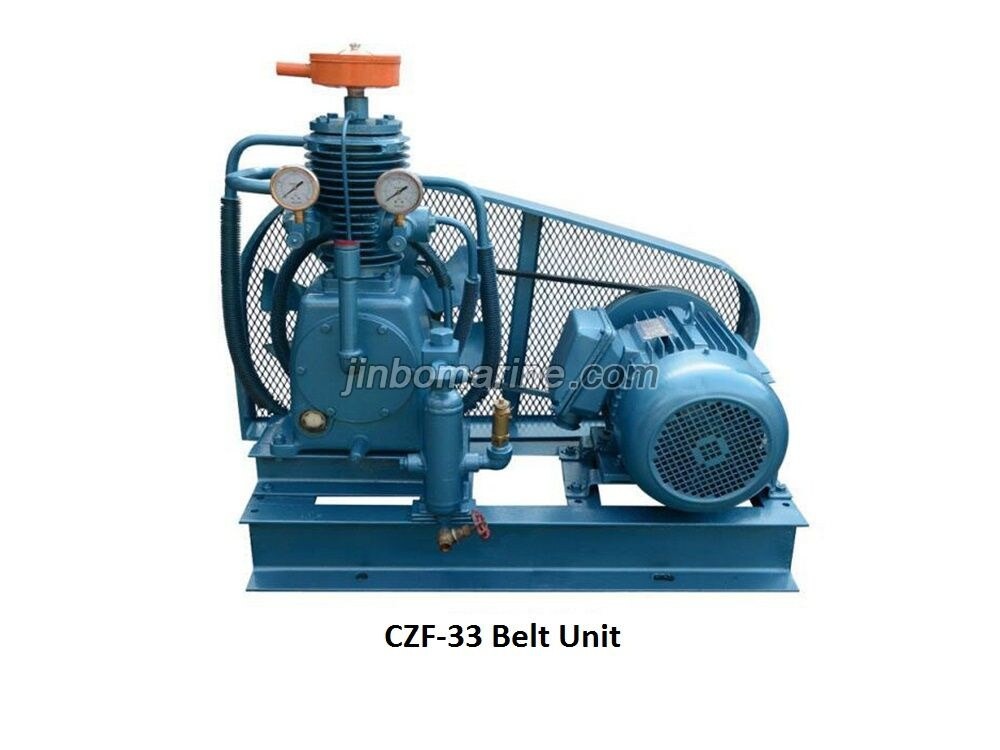

Two types: Belt unit, Direct-linked Unit.
Feature
High Efficiency,energy saving,low noise.
Specification
| Model | Type | Displacement capcity | Specified Pressure | Rotating Speed | Motor Power | Weight | Overrall (L*W*H) | Transmission mode |
| m3/h | Mpa | r/min | KW | Kg | mm | Belt drive or direct drive | ||
| CZF-33 | Vertical air-cooled two stage compression piston type | 14.5 | 3.0 | 1200 | 4 | 160 | 970*480*750 | |
| 18.5 | 1500 | 5.5 | 180 | |||||
| 22 | 1800 | 5.5 | 180 | |||||
| Applicable to less than 0.32 cubic meters of air bottle | ||||||||
