Air Water Separator CB/T3572-94
- Category:Other Marine Valves & Accessories
- Material:Steel
- Standards:CB/T3572-94, CBM1034-81
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Air Water Separator CB/T3572-94:
Air Water Separator CB/T3572-94 is used to separate the air and water in the marine compressed air pipe system.
Specification:
Standard: CB/T3572-94, CBM1034-81 (Flange size as per JIS)
Type | Working Pressure | Nominal Diameter |
A,AS | 3.0Mpa | DN20~50 |
B,BS | 3.0Mpa | DN20~80 |
Type A---Air water separator,Flange standard: GB569
Type AS--Air water separator,Flange standard: GB569
Type B---Automatic drainage air water separator,Flange standard: GB569
Type BS---Automatic drainage air water separator,Flange standard: GB2501
Main Parts & Material:
Body, Elbow---Seamless Steel Pipe
Cover, Coupling, Flange, Flap---Carbon Steel
Float---Stainless Steel
Test Method:
1. Strength Test: Hydraulic pressure 4.5Mpa and last 5 minutes, and no leakage.
2. Airtight Test: 3.0Mpa test pressure, put the air water separator into the water, or apply the soapy water on the welding points & joints, no leakage in 5 minutes.
3. Type B/BS can work normally when inclined 16°.

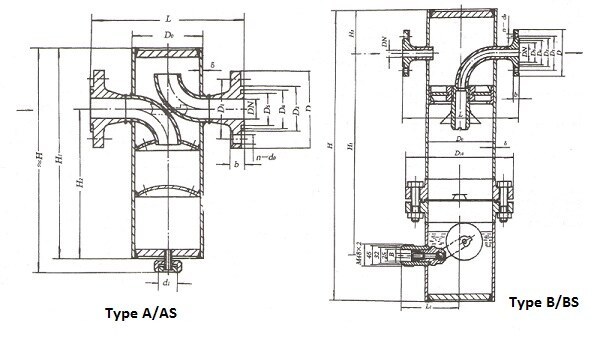

Main Size:
Type A:
Nominal Diameter | Structure Size | Flange Size | Bolt | Connection Thread | Weight | ||||||||||||
DN | H | H1 | H2 | L | D0 | δ | D | D1 | D2 | D5 | D6 | b | d0 | Th | n | d1 | kg |
20 | 370 | 333 | 253 | 218 | 89 | 5.5 | 105 | 73 | 58 | 35 | 51 | 16 | 13 | M12 | 6 | M27*1.5 | 7.28 |
25 | 370 | 333 | 253 | 218 | 89 | 5.5 | 115 | 83 | 66 | 42 | 58 | 18 | 15 | M14 | 6 | M27*1.5 | 7.6 |
32 | 370 | 333 | 253 | 218 | 89 | 5.5 | 125 | 93 | 74 | 50 | 66 | 20 | 15 | M14 | 6 | M27*1.5 | 8.01 |
40 | 520 | 478 | 338 | 324 | 168 | 7 | 145 | 107 | 84 | 60 | 76 | 22 | 17 | M16 | 6 | M36*2 | 25.94 |
50 | 520 | 478 | 338 | 324 | 168 | 7 | 155 | 117 | 96 | 72 | 88 | 23 | 17 | M16 | 6 | M36*2 | 27.4 |
Type AS:
Nominal Diameter | Structure Size | Flange Size | Bolt | Connection Thread | Weight | ||||||||||||
DN | H | H1 | H2 | L | D0 | δ | D | D1 | D2 | D5 | D6 | b | d0 | Th | n | d1 | kg |
20 | 370 | 333 | 253 | 218 | 89 | 5.5 | 105 | 75 | 58 | 35 | 51 | 16 | 14 | M12 | 4 | M27*1.5 | 7.52 |
25 | 370 | 333 | 253 | 218 | 89 | 5.5 | 115 | 85 | 68 | 42 | 58 | 16 | 14 | M12 | 4 | M27*1.5 | 7.68 |
32 | 370 | 333 | 253 | 218 | 89 | 5.5 | 140 | 100 | 78 | 50 | 66 | 18 | 18 | M16 | 4 | M27*1.5 | 8.51 |
40 | 520 | 478 | 338 | 324 | 168 | 7 | 150 | 110 | 88 | 60 | 76 | 18 | 18 | M16 | 4 | M36*2 | 27.61 |
50 | 520 | 478 | 338 | 324 | 168 | 7 | 165 | 125 | 102 | 72 | 88 | 20 | 18 | M16 | 4 | M36*2 | 28.4 |
Type B
Nominal Diameter | Structure Size | Flange Size | Bolt | Weight | ||||||||||||||
DN | H | H1 | H2 | L | L1 | D10 | D0 | δ | D | D1 | D2 | D5 | D6 | b | d0 | Th | n | kg |
20 | 660 | 450 | 95 | 340 | 130 | 280 | 159 | 7 | 105 | 73 | 58 | 35 | 51 | 16 | 13 | M12 | 6 | 40.78 |
25 | 660 | 450 | 95 | 340 | 130 | 280 | 159 | 7 | 115 | 83 | 66 | 42 | 58 | 18 | 15 | M14 | 6 | 41.51 |
32 | 660 | 450 | 95 | 340 | 130 | 280 | 159 | 7 | 125 | 93 | 74 | 50 | 66 | 20 | 15 | M14 | 6 | 42.49 |
40 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 145 | 107 | 84 | 60 | 76 | 22 | 17 | M16 | 6 | 65.87 |
50 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 155 | 117 | 96 | 72 | 88 | 23 | 17 | M16 | 6 | 67.23 |
65 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 175 | 137 | 118 | 94 | 110 | 21 | 17 | M16 | 8 | 68.64 |
80 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 190 | 152 | 130 | 105 | 121 | 23 | 17 | M16 | 8 | 70.91 |
Type BS:
Nominal Diameter | Structure Size | Flange Size | Bolt | Weight | ||||||||||||||
DN | H | H1 | H2 | L | L1 | D10 | D0 | δ | D | D1 | D2 | D5 | D6 | b | d0 | Th | n | kg |
20 | 660 | 450 | 95 | 340 | 130 | 280 | 159 | 7 | 105 | 75 | 58 | 35 | 51 | 16 | 14 | M12 | 4 | 40.97 |
25 | 660 | 450 | 95 | 340 | 130 | 280 | 159 | 7 | 115 | 85 | 68 | 42 | 58 | 16 | 14 | M12 | 4 | 41.56 |
32 | 660 | 450 | 95 | 340 | 130 | 280 | 159 | 7 | 140 | 100 | 78 | 50 | 66 | 18 | 18 | M16 | 4 | 43.05 |
40 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 150 | 110 | 88 | 60 | 76 | 18 | 18 | M16 | 4 | 66.07 |
50 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 165 | 125 | 102 | 72 | 88 | 20 | 18 | M16 | 4 | 68.39 |
65 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 185 | 145 | 122 | 94 | 110 | 22 | 18 | M16 | 8 | 70.23 |
80 | 830 | 560 | 140 | 340 | 152 | 345 | 203 | 7 | 200 | 160 | 133 | 105 | 121 | 24 | 18 | M16 | 8 | 72.84 |
