Alternating Current Network Insulation Electrical Resistance Monitor

Alternating Current Network Insulation Electrical Resistance Monitor

Model number:Q96-ZMΩ F96-MΩ AH96-MΩ 51L5-MΩ (without alarm signal output insulation meter,Wide angle 240 degree)

Model number:Q96-MΩ F96-MΩ AH96-MΩ (without alarm signal output insulation meter,Right angle 90 degree)

Model number:Q96-ZMΩA F96-BMΩ AH96-BMΩ 51L5-BMΩ (with alarm signal output insulation meter,Wide angle 240 degree)

Model number:F96-BMΩ Q96-MΩA AH96-BMΩ (with alarm signal output insulation meter,Right angle 90degree)

Model number:F96D-BMΩ Q96D-MΩA AH96D-BMΩ (Double circuit alternating Current Network Insulation Electrical Resistance Monitor,double structure)

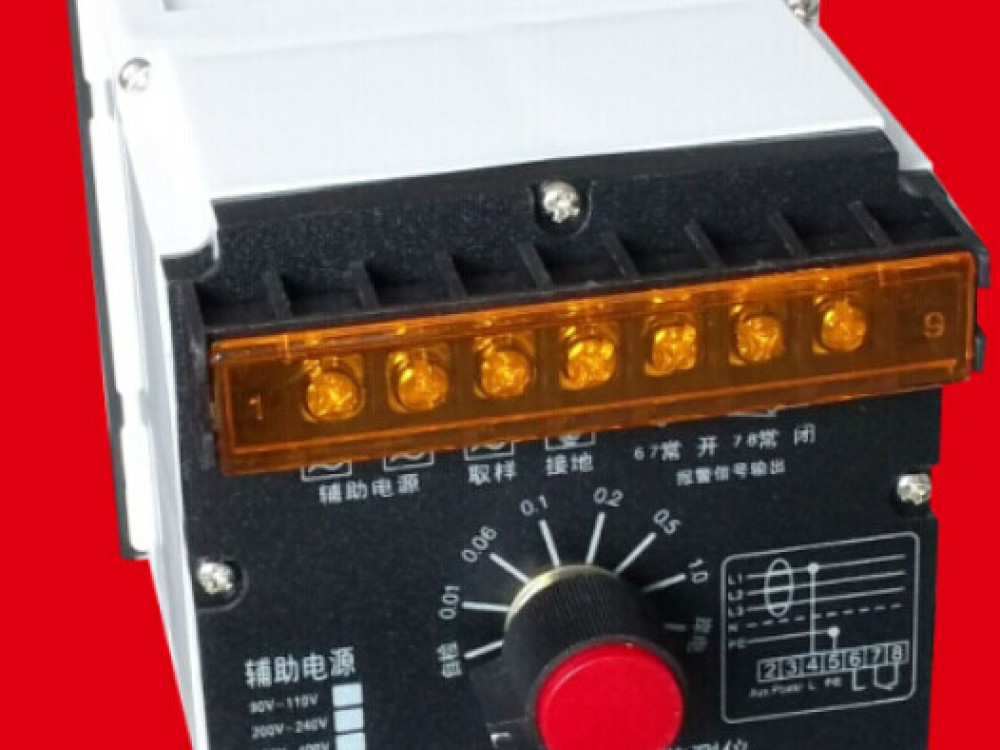

Q/F 96-BMΩ Alternating Current Network Insulation Electrical Resistance Monitor can be used to monitoring the non ground connection type alternating power distribution system which is below 500V continuously,and it will produce soundlight alarm signal when the electrical circuit insulation electrical resistor when exception occurs,insulation electrical resistance lower than the alarm value of instrument.

The meter can be work normally after charing it 5 minutes later,effective range is 0.05-5Ω.

The effective meter measure range is 0.005-5Ω,alarm value class have 10KΩ,30KΩ,60KΩ,100KΩ,total four class. or alarm value 0.1KΩ,0.2KΩ,0.3KΩ,0.5KΩ,

Its structure is magnetic electric tension string supporting and pivot needle type structure.

Rotating part no friction,work reliable,high mechanical shock resistance.Vibration will be proceed under the condition of acceleration 0.7g. Due to the mobile part of ivot needle adopt spring bearing support which can reduce the shock and vibration, pivot needle and bearing consists of high hardness cobalt-tungsten and barklyite,vibration can be proceed under the condition of acceleration 0.7g.

Advanced converter line and Indicating device integration structure,the instrument is high accuracy and large angle.The meter have linear scale,and won't affect by the magnetic filed outside,all adopt printed dial,colorized dial,scale is very clear,look neat and beautiful.Null meter reading instrument all have zero button,easy to adjust.

Type:Alternating current (AC), Direct current(DC).

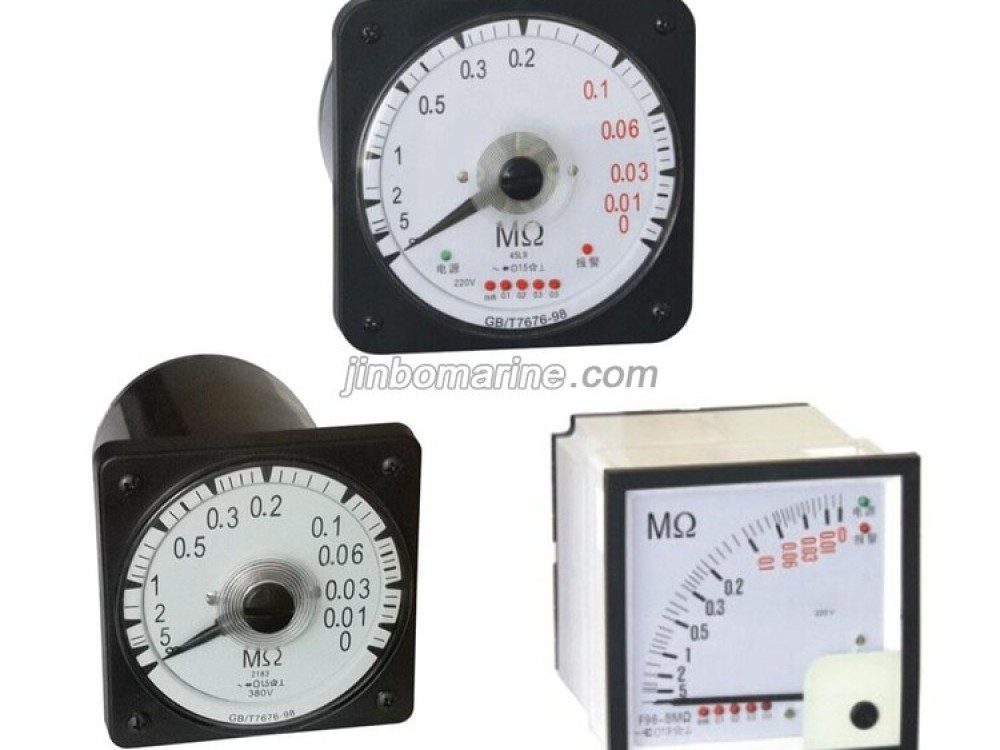

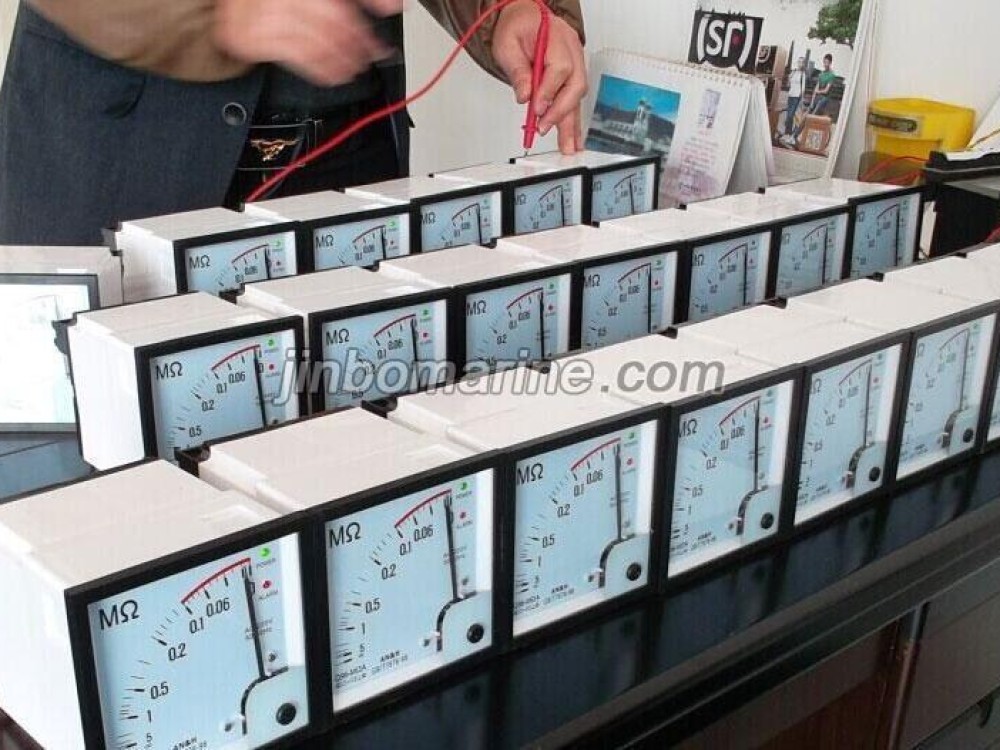

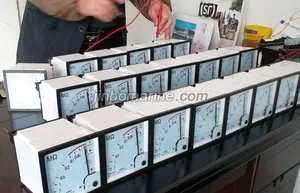

The deflection angle of Q96,F96,F96J,51L5,51T5,51C5,Z96,LS-96 Pointer needle is wide angle(240 to 250 degree) ,the meter is tension string structure,import of German technology,rotation no friction,shock assistance is better. Hairspring structure import of Taiwan technology,shock assistance is good,also can be produce to right angle 90 degree deflection angle.

The deflection angle of 51C4,51L4,51T4,51C6,51T6 Pointer needle is right angle(90 degree),also can be extend to wide angle(240 degree) deflection angle.(need to confirm when you place order) (96x96mm)

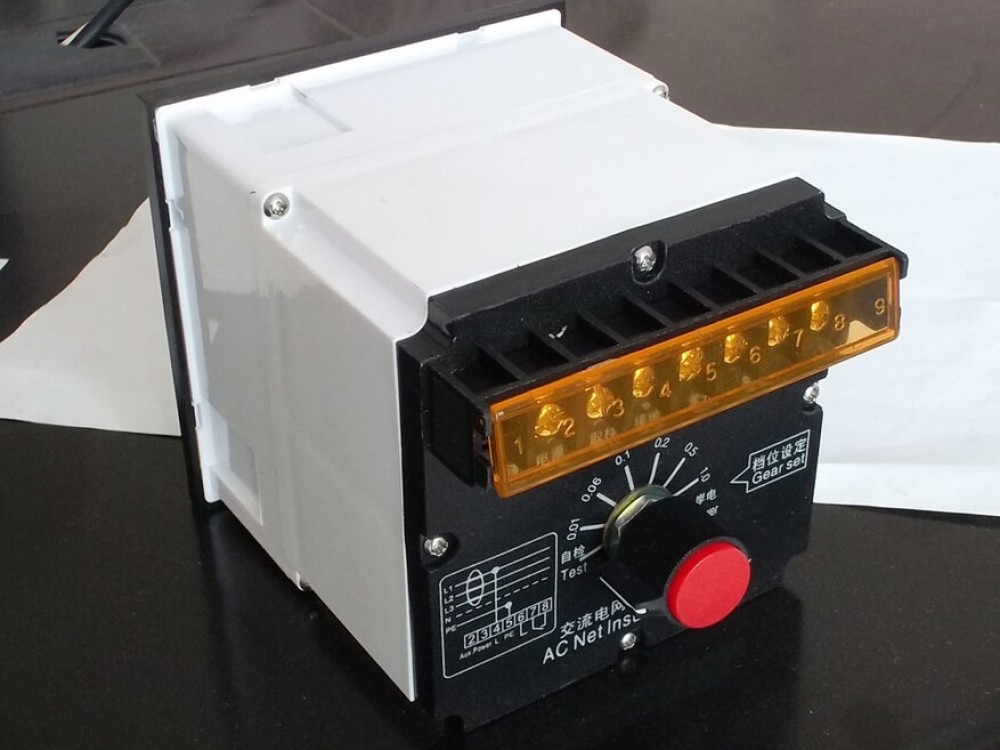

Q/F 96 type wide angle meter,overall size 96x96mm, hole size 92x92mm,depth dimensions 108mm.

Q/F 96 type right angle meter,overall size 96x96mm, hole size 92x92mm,depth dimensions 108mm.
