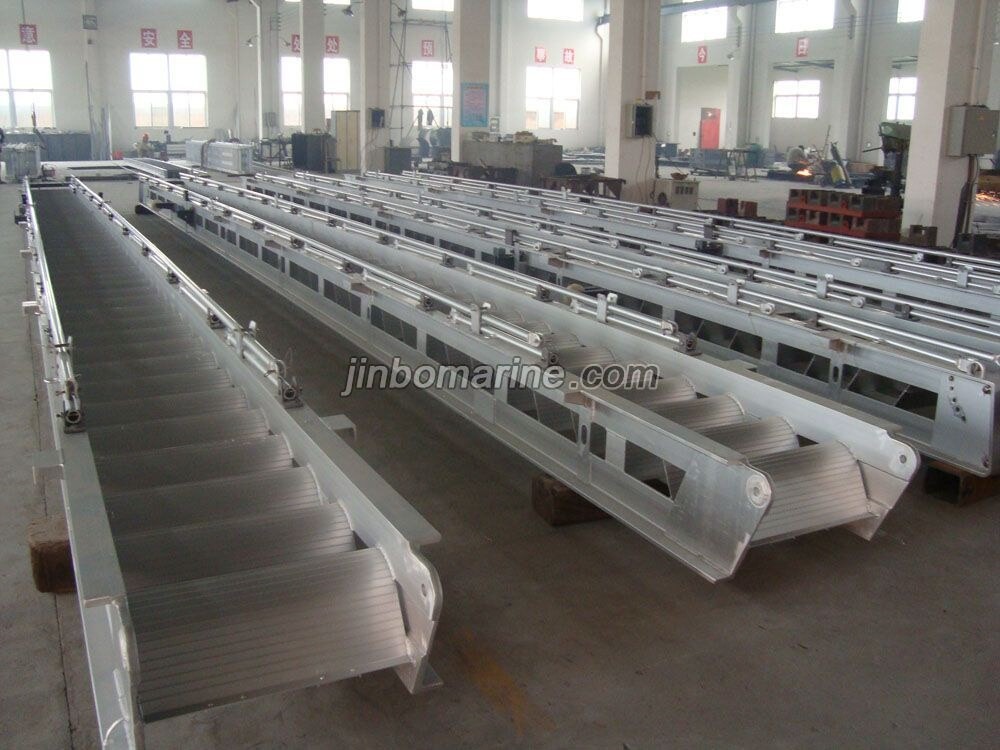

Aluminum Accommodation Ladder
- Category:Marine Ladder
- Material:Aluminum Alloy
- Standards:ISO5488 & GB/T14360-1993
- Certificate:CCS,DNV,GL, LR, ABS, BV, NK,KR,RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

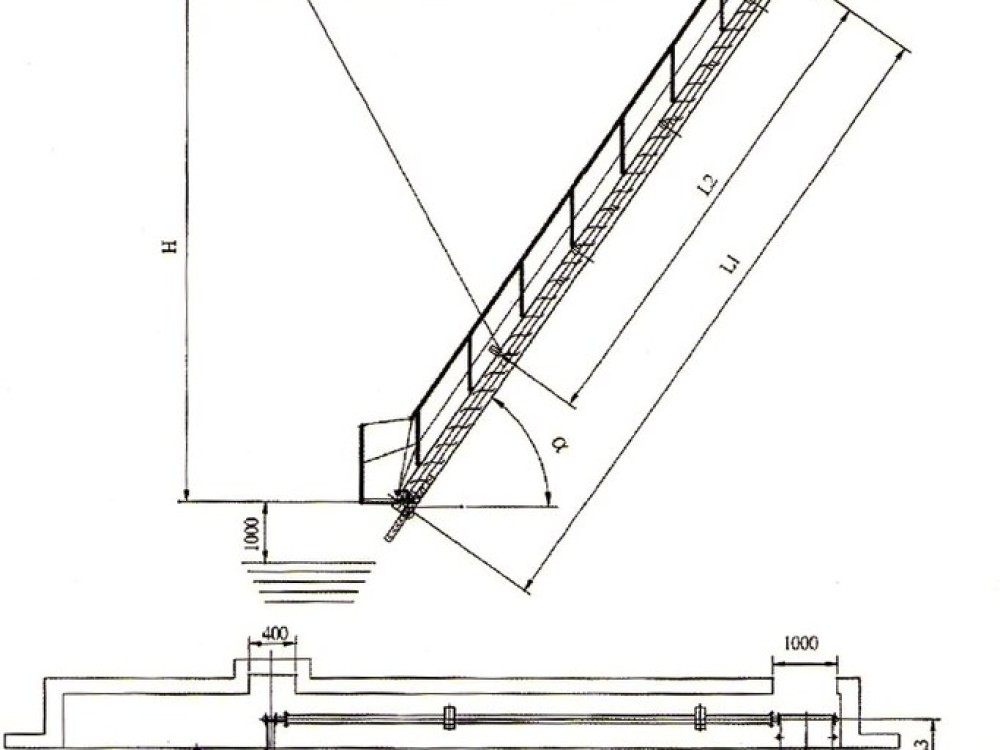

Aluminum Accommodation Ladder Drawing
China Aluminum Accommodation Ladder:
Standard: ISO5488 & GB/T14360-1993
The entire accommodation ladder systerm mainly includes the ladder, the upper platform, the lower platform, the post, the safey net, the turning device, the close device, winch (electric winch or pneumatic winch)
Aluminum Accommodation Ladder Feature:
1. Light weight, High intensity
2.With fixed arc steps, and withanti-skidslot on the surface of the steps.
3. The whole ladder is with anodic oxidation treatment, with good corrosion resistance
4. The ladder can designed as vertical flip type, flat place type and telescopic type
Main Size List(mm):
| No of Step | L | L1 | L2 | L3 | Max Height(H) | Step Space | Max use Angle |
| 12 | 5600 | 3600 | Decided when design | 850-2000 | 3620 | 300-(350) | 55°(60°) |
| 14 | 6200 | 4200 | 4100 | ||||
| 16 | 6800 | 4800 | 4590 | ||||
| 18 | 7400 | 5400 | 5080 | ||||
| 20 | 8000 | 6000 | 5800 | ||||
| 22 | 8600 | 6600 | 6300 | ||||
| 24 | 9200 | 7200 | 6800 | ||||
| 26 | 9800 | 7800 | 7300 | ||||
| 28 | 10400 | 8400 | 7800 | ||||
| 30 | 11000 | 9000 | 8300 | ||||
| 32 | 11600 | 9600 | 8800 | ||||
| 34 | 12200 | 10200 | 9300 | ||||
| 36 | 12800 | 10800 | 9800 | ||||
| 38 | 13400 | 11400 | 10300 | ||||
| 40 | 14000 | 12000 | 10800 | ||||
| 42 | 14600 | 12600 | 11300 | ||||
| 44 | 15200 | 13200 | 11800 | ||||
| 46 | 15800 | 13800 | 12300 | ||||
| 48 | 16400 | 14400 | 12800 | ||||
| 50 | 17000 | 15000 | 13300 | ||||
| 52 | 17600 | 15600 | 13800 | ||||
| 54 | 18200 | 16200 | 14300 | ||||
| 56 | 18800 | 16800 | 14700 | ||||
| 58 | 19400 | 17400 | 15100 | ||||
| 62 | 20600 | 18600 | 15500 | ||||
| 66 | 21800 | 19800 | 15900 | ||||
| 70 | 23000 | 21000 | 16300 |
* The length is customerized. The size in the list is just for reference.
