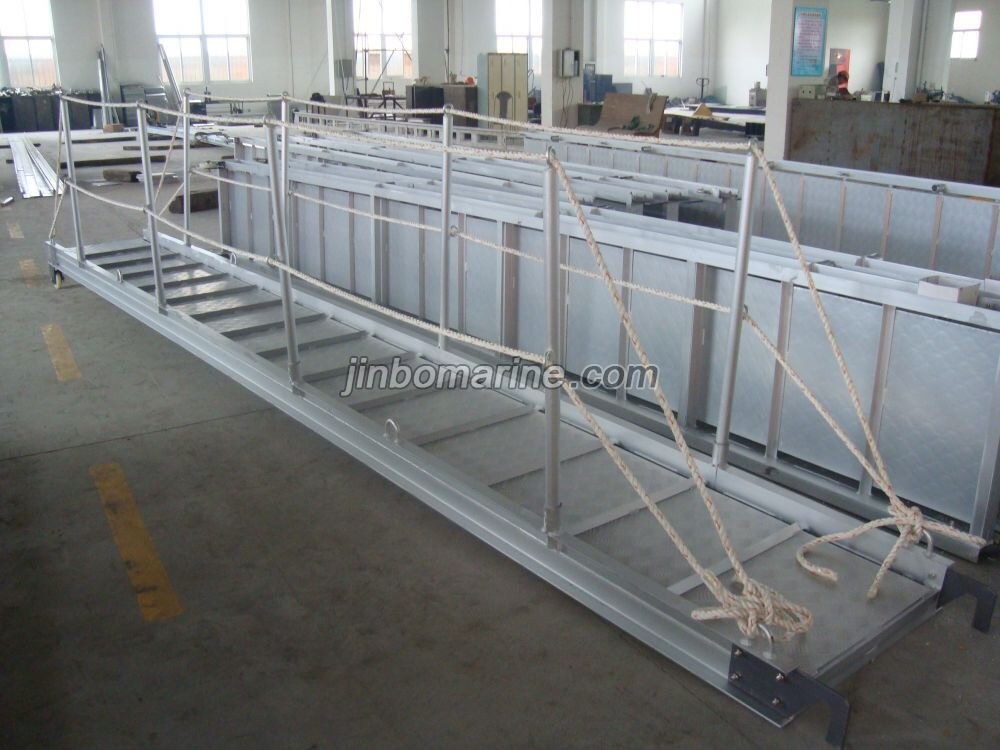

Aluminum Wharf Ladder ( Flat Type)

Standard:CB3116-82, JIS F2613-1796 & ISO7061-1993

Max usage angle:30º

Usage situation: embark and disembark for personnel when various types of ships are mooring alongside a deck

*It also can be called as aluminum gangway or shore gangway.

*Normally it is with hook in one side and another side with roller.

*If the length is too long, not suitable for shipment. The ladder can be made with two parts.

*The wharf ladder also can be with the safety net.

*The surface of the product is anodized.

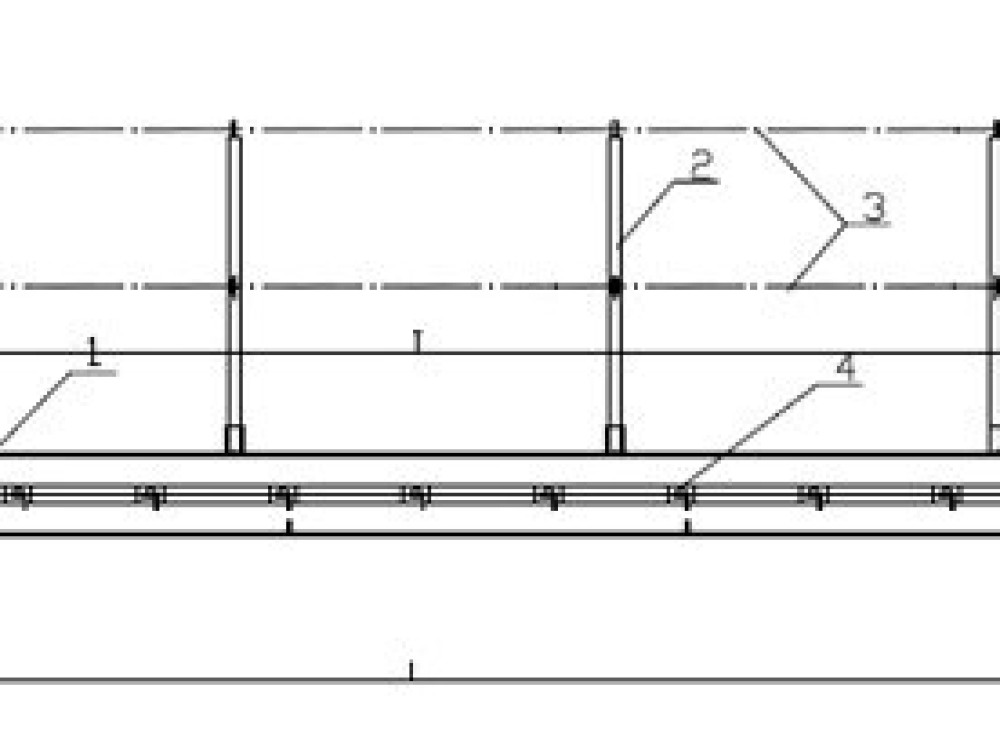

1-Ladder Frame: Aluminum Alloy

2-Rail: Aluimum alloy pipe

3-Rope: Nylon

4-Antislip Strip: Aluminum Alloy

5-Roller: Nylon

6-Hook: Aluminum or steel

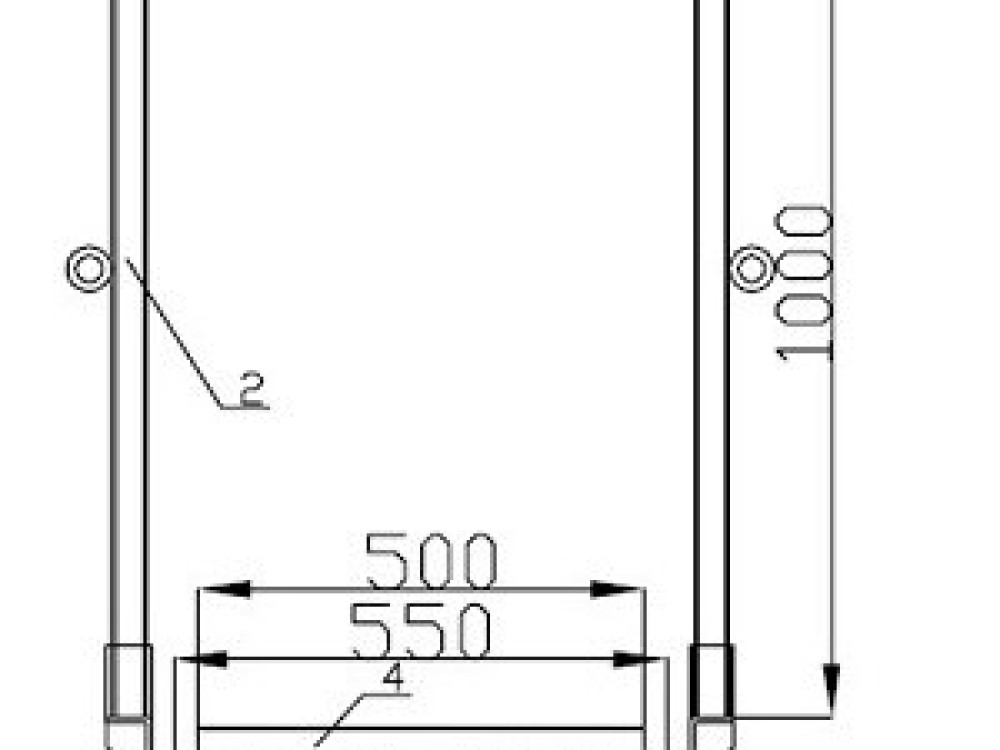

The length and the width are customerized. But the standard width is inside 600mm, outside 700mm. The rail height is fixed 1000mm.
