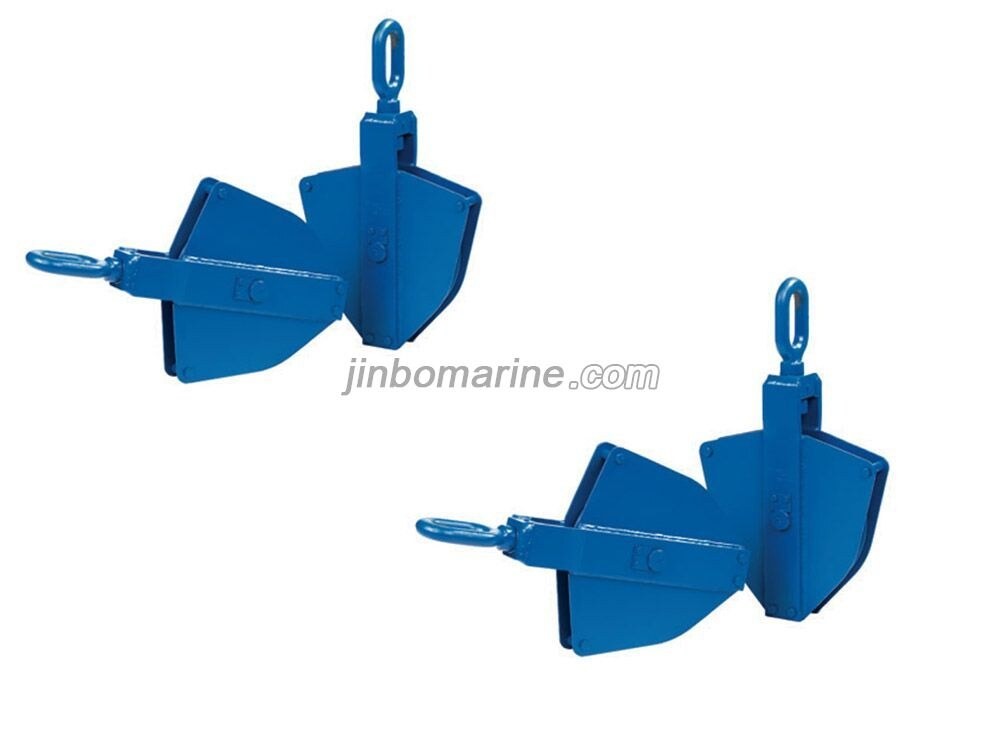

Anchor Boom Blocks

stock no.	will(t)	wire up tp (mm)	dimensions(mm)												weight(kg)
			D1	D2	F	ΦG	ΦJ	K	L	M	R	TA	TB	TL
26.200.03.10	3	10	200	165	40	30	21	32	72	30	5.5	270	23	465	13.5
26.250.04.10	4	12	250	210	45	35	26	40	94	33	6.5	320	280	556	22
26.300.06.10	6	14	300	255	50	40	29	45	108	42	7.5	400	360	653	35
26.350.08.10	8	18	350	300	45	45	32	49	115	45	9.5	450	400	714	72
26.400.12.10	12	20	400	345	50	60	41	60	144	56	11	502	440	1014	85
26.450.16.10	16	22	450	390	60	70	46	66	163	64	12	560	510	1094	105
26.500.18.10	18	24	500	430	70	75	51	72	173	72	13	610	520	1097	135
26.500.20.10	20	36	500	430	70	80	51	72	173	72	19.5	620	550	1114	164

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
