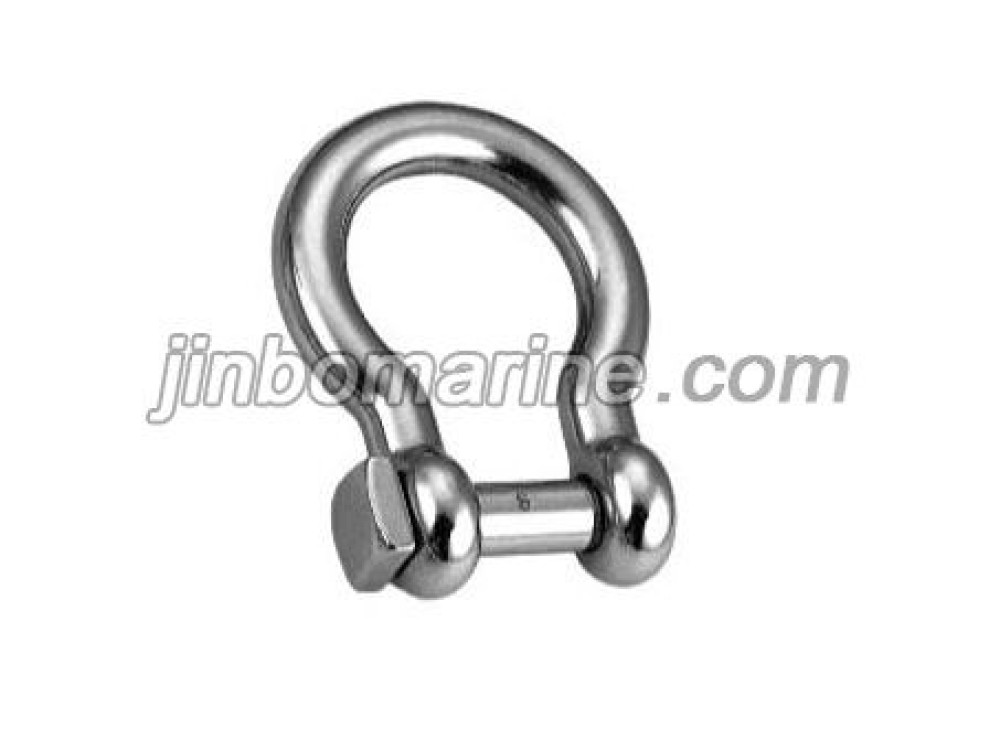

Anchor (Bow) Shackle (With Hexagonal Sink Pin) SS304 ORSS316
- Category:Shackle
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Anchor (Bow) Shackle (With Hexagonal Sink Pin) SS304 ORSS316:
-SHACKLE-(WITH-HEXAGONAL-SINK-PIN)-SS304-ORSS316-1.jpg)
| SIZE |
Φ mm |
A mm |
B mm |
SWL kgs |
BL kgs |
| M4 | 4 | 8 | 18 | 138 | 550 |
| M5 | 5 | 10 | 23 | 300 | 1200 |
| M6 | 6 | 12 | 27 | 425 | 1700 |
| M8 | 8 | 16 | 37 | 625 | 2500 |
| M10 | 10 | 20 | 46 | 1075 | 4300 |
| M12 | 12 | 24 | 55 | 1550 | 6200 |
| M13 | 13 | 26 | 60 | 1585 | 6340 |
| M14 | 14 | 28 | 63 | 1625 | 6500 |
| M16 | 16 | 32 | 74 | 1750 | 7000 |
| M19 | 19 | 38 | 87.5 | 3500 | 14000 |
| M22 | 22 | 44 | 99 | 4250 | 17000 |
| M25 | 25 | 50 | 112.5 | 5000 | 20000 |
| M28 | 28 | 56 | 126 | 5000 | 20000 |
