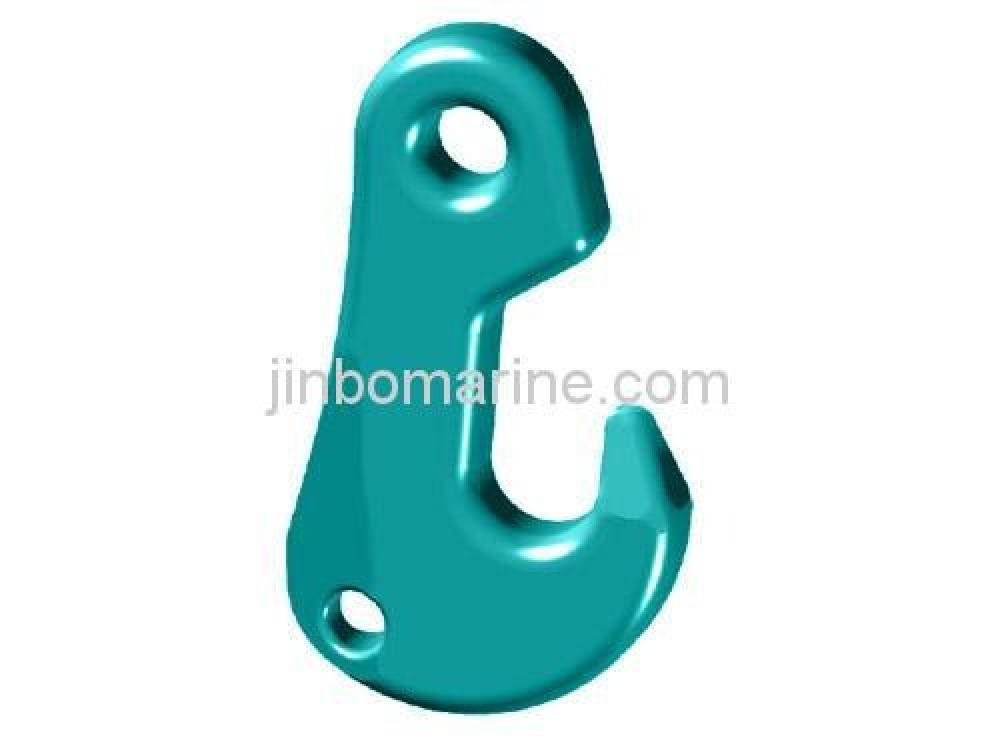

Anchor Line Hook
- Category:Drag Anchor
- Material:Alloy Steel
- Certificate:CCS,LR,BV
- Supply Ability:80 PCS Each Month
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Anchor Line Hook.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Anchor Line Hook
- Material: Alloy Steel
- Safety Factory: 4 Times
- Finish: Painting
- Certificate:Proof Load Certificate

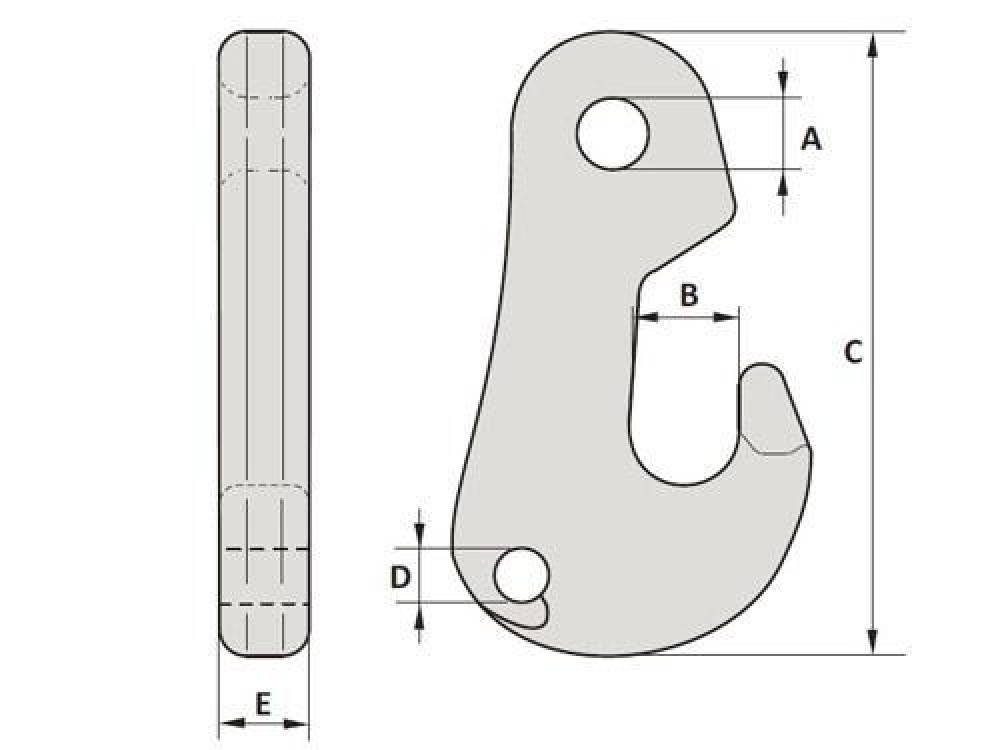

Specification:
| Item No | SWL | A | B | C | D | E | Proof Load | MBL |
| Ton | mm | mm | mm | mm | mm | Ton | Ton | |
| 1 | 20 | 40 | 74 | 343 | 32 | 60 | 40 | 80 |
| 2 | 25 | 52 | 86 | 440 | 38 | 65 | 50 | 100 |
| 3 | 30 | 62 | 95 | 480 | 40 | 70 | 60 | 120 |
| 4 | 50 | 80 | 112 | 618 | 45 | 90 | 100 | 200 |
| 5 | 80 | 90 | 130 | 709 | 62 | 100 | 160 | 320 |
