Anchor Shackle
- Category:Anchor Chain
- Material:CM490/CM690
- Certificate:ABS,LR, BV, GL,DNV,RINA, NK, KR, RS, IRS, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Anchor Shackle:

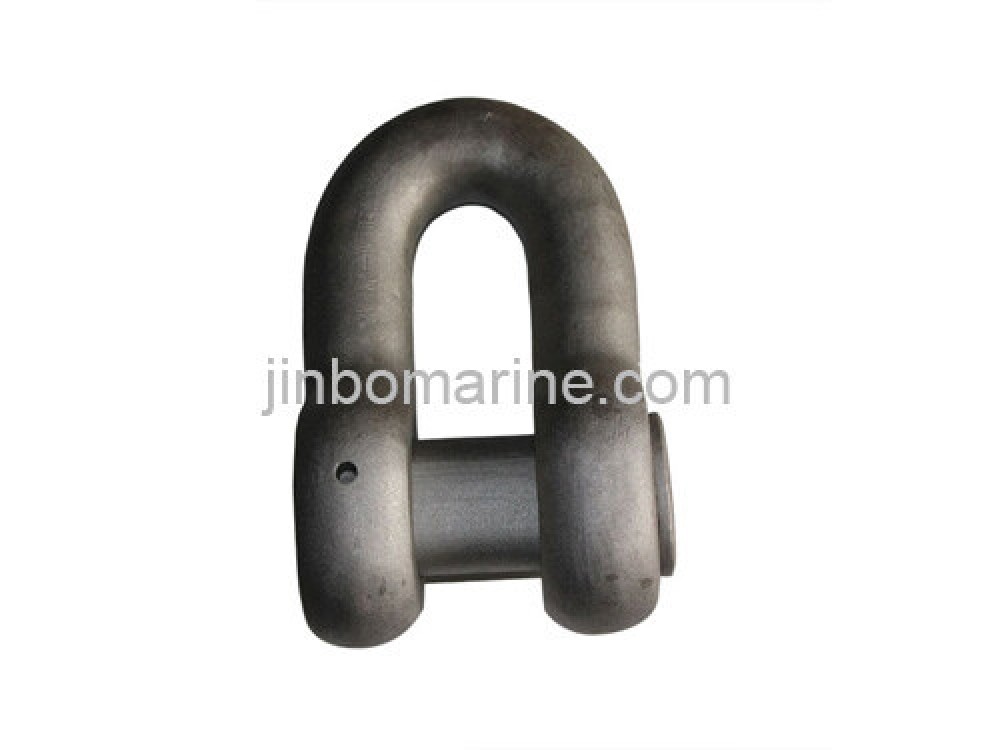

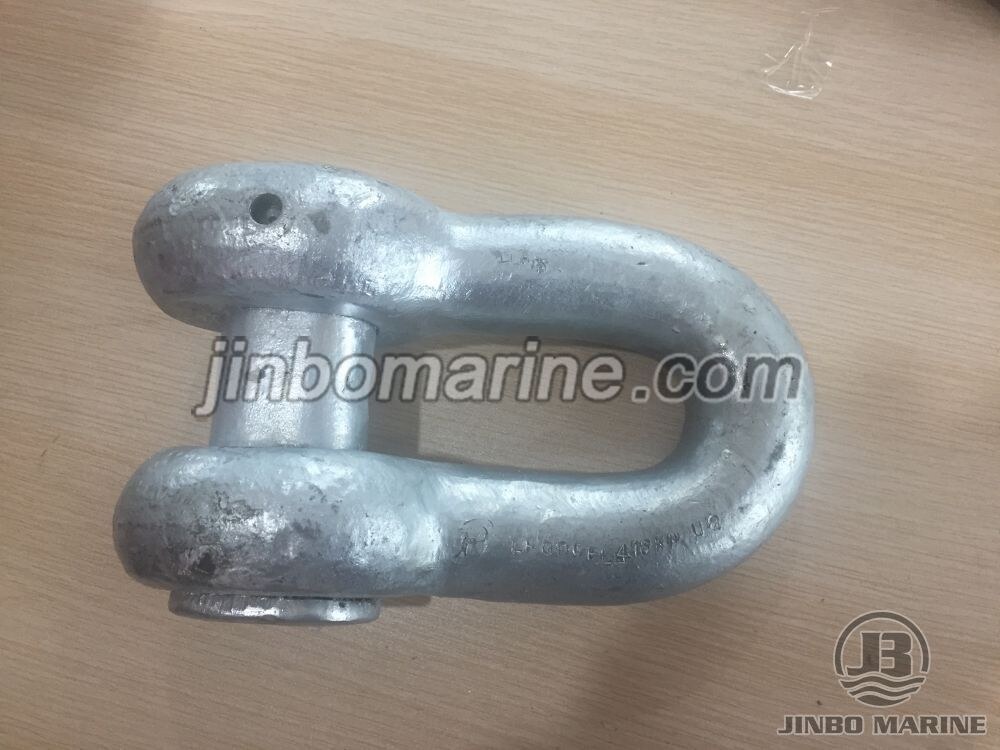

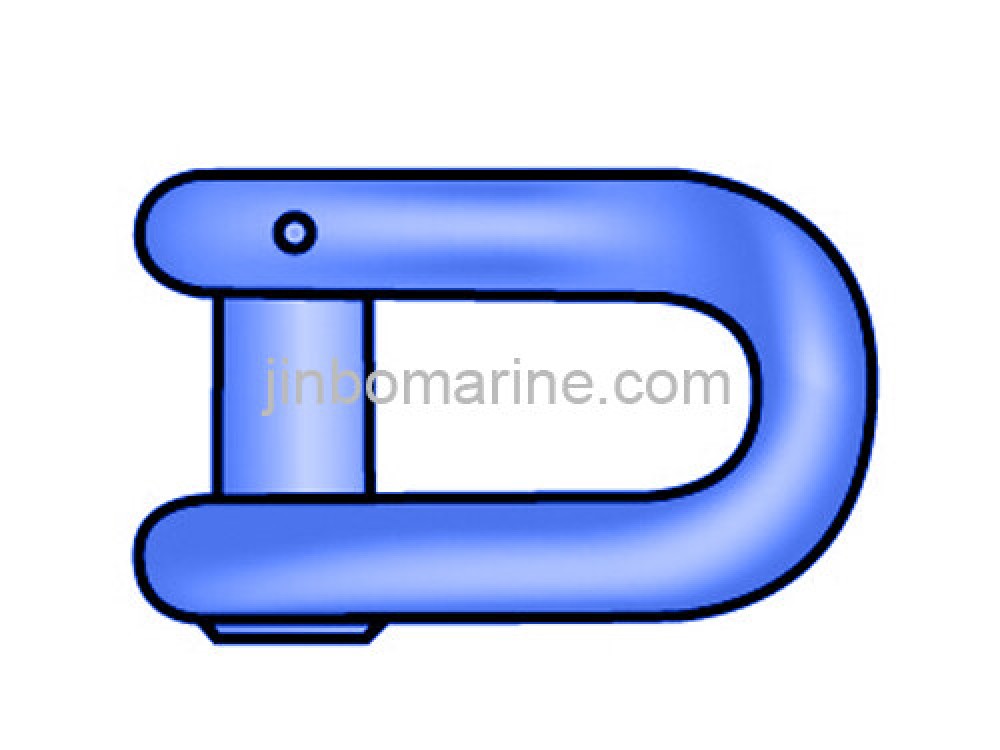

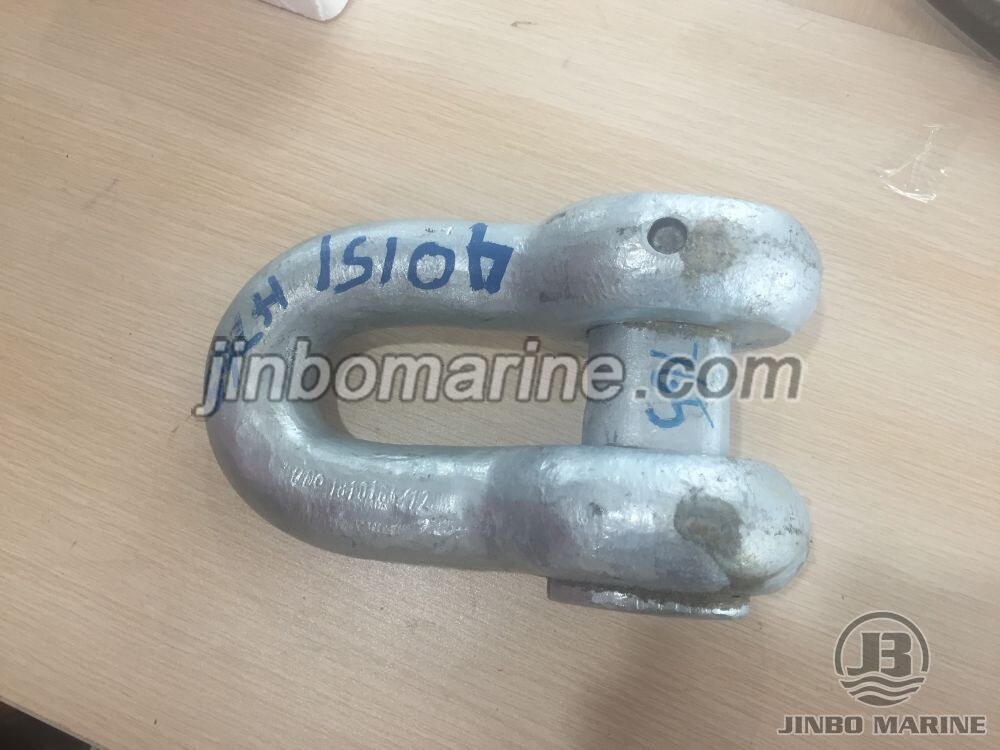

Anchor Shackle
Anchor Shackle is used for connecting anchor and anchor chains for Port and Starboad. All can be supplied with Class Certificate, ABS, BV, LR.
Technical Specification:
Grade: Grade2 or Grade 3
Size: 12.5mm-162mm
Shipment:
Fast Delivery, we can delivery to everywhere around the world.
Shackle Weight:
Chain diameter | Kenter shackle | Joining shackle | Anchor shackle | Swivel | swivel Forerunner |
Swivel shackle Type A |
Swivel shackle Type B |
|
Inches | mm | kg | kg | kg | kg | kg | kg | kg |
43/78 | 14 | 0.6 | 0.6 | 1.5 | 1.1 | 2.4 | - | - |
17/27 | 16 | 0.6 | 0.9 | 1.5 | 1.3 | 3.2 | - | - |
31/45 | 17.5 | 0.8 | 1.3 | 2.1 | 1.7 | 4.2 | - | - |
3/4 | 19 | 1.1 | 1.8 | 2.4 | 2.1 | 5.5 | - | - |
13/16 | 20.5 | 1.3 | 2.2 | 3.2 | 2.2 | 6.1 | - | - |
7/8 | 22 | 1.6 | 2.6 | 3.9 | 3.5 | 8.7 | 17.5 | 7.6 |
15/16 | 24 | 2.1 | 3.4 | 5.1 | 4.5 | 10.9 | 17.5 | 9.9 |
1 | 25.5 | 2.5 | 4.5 | 6.7 | 5.7 | 14.2 | 37.6 | 12.5 |
1 1/16 | 27 | 3.3 | 5.1 | 8.1 | 7.2 | 17.4 | 37.6 | 15.7 |
1 3/16 | 30 | 4.1 | 6.3 | 10 | 9 | 22.3 | 91 | 19.4 |
1 1/4 | 31.5 | 5 | 8.2 | 11.7 | 10.1 | 26.6 | 91 | 23.4 |
1 5/16 | 33.5 | 6 | 9.5 | 14.2 | 12.7 | 32.2 | 107 | 28 |
1 3/8 | 35 | 6.8 | 11.3 | 16.5 | 14.9 | 38.3 | 107 | 33.4 |
1 1/2 | 38 | 8.4 | 13.4 | 19.5 | 17.4 | 42.6 | 107 | 39.4 |
1 9/16 | 39.5 | 9.6 | 15.5 | 22.8 | 20.2 | 50.4 | 115 | 46 |
1 5/8 | 41.5 | 11 | 18.1 | 26 | 25.4 | 59.5 | 115 | 53 |
1 3/4 | 44.5 | 12.4 | 20.2 | 29.7 | 26.6 | 66.5 | 139 | 61 |
1 13/16 | 46 | 14.1 | 23.3 | 34.3 | 30.6 | 76.7 | 139 | 70 |
1 7/8 | 47.5 | 16.7 | 27.5 | 38 | 35 | 89.8 | 139 | 79 |
1 15/16 | 49 | 19 | 31.6 | 45.2 | 40.5 | 101.8 | 264 | 89 |
2 | 51 | 20.3 | 34 | 50.9 | 49.5 | 117.2 | 264 | 101 |
2 1/8 | 54 | 23.7 | 38.5 | 53.8 | 50.5 | 124.9 | 270 | 113 |
2 3/16 | 55.5 | 26.7 | 46 | 63 | 55 | 137.9 | 270 | 126 |
2 5/16 | 58.5 | 27.2 | 46.8 | 70 | 64.6 | 156.4 | 294 | 140 |
2 3/8 | 60.5 | 27.7 | 51 | 77.5 | 71.3 | 171.3 | 294 | 155 |
2 7/16 | 62 | 35 | 59.2 | 86.3 | 77.7 | 187.4 | 294 | 171 |
2 1/2 | 63.5 | 38.4 | 62.7 | 96.3 | 83.3 | 202.2 | 403 | 188 |
2 5/8 | 66.5 | 42.3 | 75 | 99.6 | 88.7 | 223.1 | 403 | 206 |
2 11/16 | 68 | 46 | 76.7 | 102.6 | 100 | 247.5 | 403 | 225 |
2 3/4 | 69.5 | 48.7 | 90 | 126.2 | 107.8 | 269.3 | 464 | 246 |
2 7/8 | 73 | 53 | 95 | 138.2 | 125.6 | 306.2 | 464 | 278 |
3 | 76 | 60.7 | 107 | 146 | 143.8 | 347.8 | 464 | 314 |
3 1/16 | 77.5 | 65.5 | 116 | 164 | 154 | 379.4 | 749 | 340 |
3 3/16 | 81 | 75 | 130 | 190 | 188 | 435.7 | 749 | 380 |
3 5/16 | 84 | 90 | 136 | 212 | 198 | 464 | 931 | 424 |
3 7/16 | 87.5 | 96 | 160 | 237 | 215 | 521.7 | 931 | 472 |
3 9/16 | 90.5 | 108 | 176 | 245 | 238 | 571 | 1191 | 522 |
3 5/8 | 92 | 114 | 196 | 257 | 252 | 616 | 1191 | 558 |
3 3/4 | 95 | 128 | 215 | 300 | 269 | 656 | 1191 | 614 |
3 13/16 | 97 | 133 | 222 | 335 | 301 | 713.1 | - | 654 |
3 15/16 | 100 | 146 | 252 | 353 | 330 | 785 | 1464 | 717 |
4 | 101.5 | 158 | 267 | 378 | 344 | 835.5 | 1464 | 761 |
4 1/8 | 105 | 160 | 294 | 385 | 387 | 916 | 1466 | 830 |
4 1/4 | 108 | 180 | 305 | 420 | 428 | 991 | 1466 | 879 |
4 3/8 | 111 | 198 | 325 | 463 | 448 | 1061 | 1830 | 980 |
4 1/2 | 114.5 | 204 | 345 | 485 | 460 | 1116 | 1830 | 1062 |
4 5/8 | 117.5 | 225 | 365 | 528 | 475 | 1177 | 1830 | 1147 |
4 3/4 | 120.5 | 250 | 400 | 570 | 547 | 1332 | - | - |
4 9/16 | 122 | 263 | 425 | 602 | 649 | 1480 | - | - |
4 7/8 | 124 | 290 | 465 | 632 | 680 | 1550 | - | - |
5 | 127 | 312 | 499 | 679 | 729 | 1663 | - | - |
5 1/8 | 130 | 333 | 536 | 729 | 784 | 1797 | - | - |
5 1/4 | 133.5 | 350 | 561 | 762 | 820 | 1862 | - | - |
5 3/8 | 136.5 | 392 | 627 | 852 | 912 | 2065 | - | - |
5 5/8 | 143 | 436 | 698 | 949 | 1012 | 2315 | - | - |
5 3/4 | 146 | 485 | 774 | 1053 | 1124 | 2578 | - | - |
6 | 152.5 | 537 | 856 | 1164 | 1238 | 2839 | - | - |
6 2/11 | 157 | 591 | 943 | 1283 | 1360 | 3102 | - | - |
6 3/8 | 162 | 651 | 1036 | 1410 | 1490 | 3401 | - | - |
