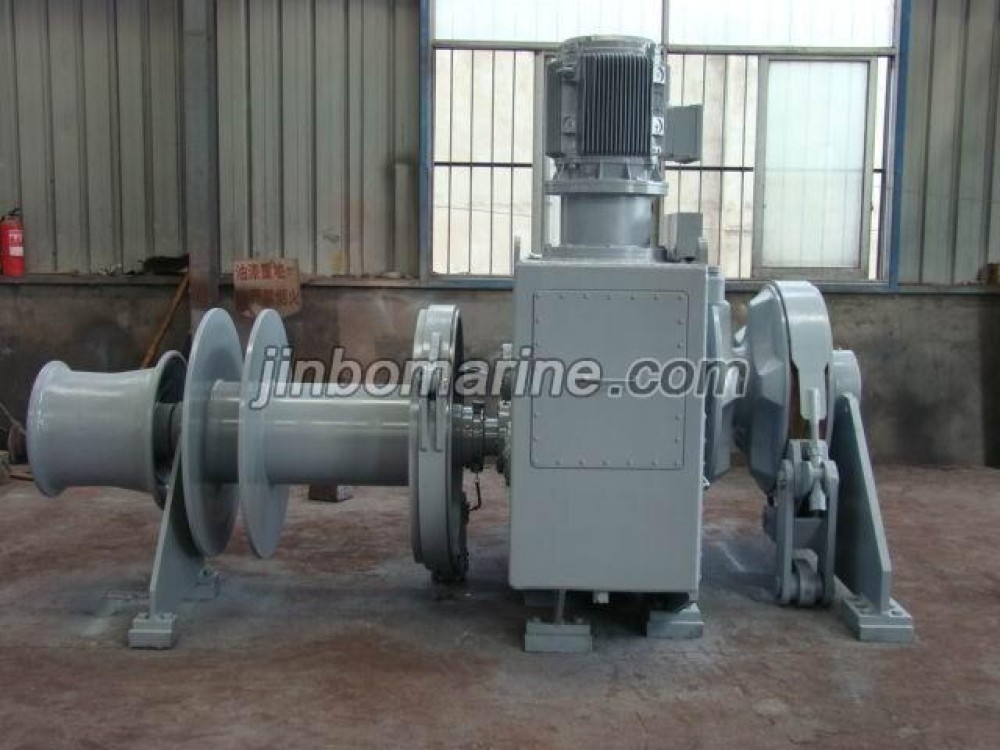

Anchor Windlass and Mooring Winch
- Category:Marine Windlass
- Material:Cast steel
- Standards:standard
- Certificate:ABS,LR, BV, GL, CCS, RINA, IRS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
General description
The combined and capstan are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>. They are driven by hand, electric, hydraulic and diesel engine.
Main Parameter
| Chain Dia (mm) | Working Load (kN) | Working Speed (m/min) | Mooring Pull (kN) | Mooring Speed (m/min) | Drun Capacity (Φ mm x m) | Motor Power (kW) | |
| Electric | Hydraulic | ||||||
| 14/16/17.5 | 8.3/10.9/13.0 | ≥9 | 8 | ≥2 | Φ11 x100 | 4.3/1.7 | 5.5 |
| 19/20.5/22 | 15.3/17.9/20.6 | ≥9 | 15 | ≥2 | Φ13x120 | 8.5/3.5 | 7.5 |
| 24/26 | 24.5/28.7 | ≥9 | 20 | ≥2 | Φ15x120 | 8.5/3.5 | 11 |
| 28/30 | 33.3/38.3 | ≥9 | 30 | ≥2 | Φ18x150 | 11/11/7.5 | 15 |
| 32/34/36 | 43.5/49.1/55.1 | ≥9 | 40 | ≥2 | Φ20.5x150 | 16/16/11 | 22 |
| 38/40/42 | 61.4/68.0/75.0 | ≥9 | 50 | ≥2 | Φ20.5x150 | 22/22/16 | 30 |
| 44/46/48 | 82.3/89.9/97.9 | ≥9 | 60 | ≥2 | Φ26 x 200 | 30/30/22 | 37 |
| 50/52/54 | 106.3/114.9/123.9 | ≥9 | 60 | ≥5 | Φ26 x 200 | 30/30/22 | 45 |
| 56/58/60 | 133.3/143.0/153 | ≥9 | 80 | ≥5 | Φ 26 x 200 | 45/45/30 | 55 |
| 62/64 | 163.4/174.1 | ≥9 | 80 | ≥5 | Φ30 x 200 | 45/45/30 | 55 |
| 66/68 | 185.1/196.5 | ≥9 | 100 | ≥5 | Φ30x200 | 45/45/30 | 75 |
| 70/73 | 208.3/226.5 | ≥9 | 120 | ≥5 | Φ32.5x200 | 60/60/45 | 75 |
| 76/78 | 245.5/258.6 | ≥9 | 125 | ≥5 | Φ32.5x200 | 60/60/45 | 90 |
| 81/84 | 311.7/335.2 | ≥9 | 140 | ≥5 | Φ36 x 200 | 75/75/36 | 110 |
| 87/90 | 359.5/384.8 | ≥9 | 150 | ≥5 | Φ38x200 | 75/75/36 | 120 |
| 92/95 | 402.0/428.7 | ≥9 | 200 | ≥5 | Φ40x 200 | 85/85/64 | 130 |
| 97/100 | 446.9/475.0 | ≥9 | 250 | ≥5 | Φ42x 200 | 100/100/50 | 150 |
| 105/107 | 523.7/543.8 | ≥9 | 300 | ≥5 | Φ44x 200 | 110/110/55 | 180 |
| 112/114 | 595.8/617.3 | ≥9 | 350 | ≥5 | Φ48x 200 | 132/132/66 | 200 |
| 120/122 | 684/707 | ≥9 | 400 | ≥5 | Φ52x 250 | / | 250 |
| 124/127 | 730.4/766.1 | ≥9 | 450 | ≥5 | Φ56 x 250 | / | 315 |
| 130/132 | 802.8/827.6 | ≥9 | 500 | ≥5 | Φ58x 250 | / | 315 |
| 137/142 | 891.5/957.8 | ≥9 | 550 | ≥5 | Φ62x 250 | / | 350 |
