API Globe Valve
- Category:Globe Valve
- Material:Stainless Steel, WCB, Bronze
- Standards:BS1873
- Certificate:Mill Certificate
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

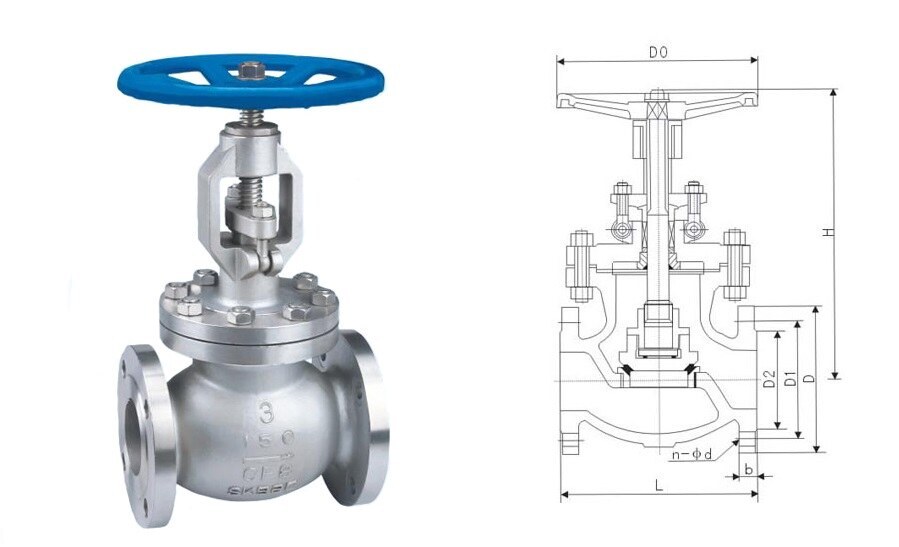

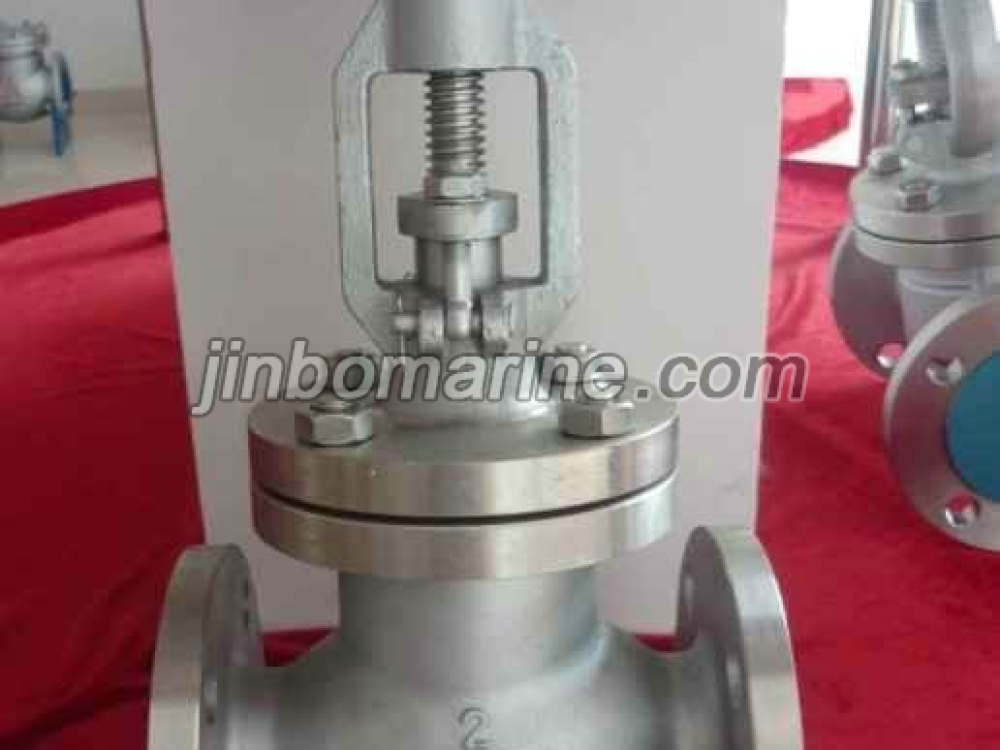

China API Globe Valve:
The Globe Valve is produced accoring to API standard in design, manufacturing, and inspection. It is compact in pattern, reliable in sealing and easy to operate. It is used in petroleum, chemical, electric power, textile, metallurgy and other industries.
Standard:
|
Design Standard |
Face to Face |
Flange Dimension |
Butt Welding Dimension |
Pressure Temperature |
Test Standard |
|
BS1873 |
ANSI B16.10 |
ANSI B16.5 |
ANSI B16.25 |
ANSI B16.34 |
API 598 |
Test Pressure:
| Nominal Pressure (Lb) | Shell Strength Test | Water Seal Test | Air Seal Test | |||
| MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| 150 | 3 | 430 | 2.2 | 315 | 0.4-0.7 | 60-100 |
| 300 | 7.7 | 1110 | 5.7 | 815 | ||
| 600 | 15.3 | 2220 | 11.3 | 630 | ||
| 900 | 23 | 3330 | 17 | 2445 | ||
Main Parts & Material:
| Body, Disc | Stem | Sealing Seat | Gasket | Packing | Working Temperature℃ | Applicable Medium |
| WCB | 2Cr13 | 13Cr,STL,Body Material, Nylon | Flexible Graphite,13Cr/Flexible Graphite, SFB-2,08 Mild Steel, F304, F316, F304L, F316L | Flexible Graphite, SFB/260, SFP/260, PTFE | ≤425 | Water, Steam, Oil |
| WC1 | 38CrMoAl 25Cr2MoV | ≤425 | ||||
| WC6 | ≤540 | |||||
| WC9 | ≤570 | |||||
| C5 C12 | ≤540 | |||||
| CF8 | F304 | ≤200 | Nitric acid,acetic acid,carbamide | |||
| CF8M | F316 | |||||
| CF3 | F304L | |||||
| CF3M | F316L |
Main Size List:
|
DN |
150Lb （RF) （mm） |
Weight(kgs) |
||||||||
|
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
|
15 |
1/2 |
108 |
89 |
60.5 |
35 |
11.2 |
4-16 |
241 |
100 |
6.9 |
|
20 |
3/4 |
117 |
98 |
69.9 |
43 |
12.7 |
4-16 |
241 |
100 |
9.8 |
|
25 |
1 |
127 |
108 |
79.2 |
51 |
14.2 |
4-16 |
242 |
125 |
13.5 |
|
32 |
11/4 |
140 |
117 |
89 |
63 |
16 |
4-16 |
280 |
160 |
19.5 |
|
40 |
11/2 |
165 |
127 |
98.6 |
73 |
17.5 |
4-16 |
286 |
160 |
28.5 |
|
50 |
2 |
203 |
152 |
120.7 |
92 |
19 |
4-19 |
368 |
200 |
18 |
|
65 |
21/2 |
216 |
178 |
139.7 |
105 |
22.4 |
4-19 |
387 |
200 |
30 |
|
80 |
3 |
241 |
190 |
152.4 |
127 |
24 |
4-19 |
411 |
250 |
41 |
|
100 |
4 |
292 |
229 |
190.5 |
157 |
24 |
4-19 |
454 |
250 |
64 |
|
125 |
5 |
356 |
254 |
216.0 |
186 |
24 |
8-22.5 |
455 |
350 |
86 |
|
150 |
6 |
406 |
279 |
241.3 |
216 |
25.4 |
8-22.5 |
541 |
350 |
113 |
|
200 |
8 |
495 |
343 |
298.5 |
270 |
28.4 |
8-22.5 |
651 |
450 |
178 |
|
250 |
10 |
622 |
406 |
362.0 |
324 |
30.2 |
12-25.4 |
800 |
450 |
270 |
|
300 |
12 |
698 |
483 |
431.8 |
381 |
32 |
12-25.4 |
1231 |
600 |
350 |
|
350 |
14 |
787 |
533 |
476.3 |
413 |
35 |
12-29 |
1450 |
600 |
460 |
|
400 |
16 |
914 |
597 |
539.8 |
470 |
36.6 |
26-29 |
1645 |
600 |
590 |
|
DN |
300Lb （RF) （mm） |
Weight(kgs) |
||||||||
|
15 |
1/2 |
152 |
95 |
66.5 |
35 |
14.2 |
4-16 |
241 |
140 |
7.7 |
|
20 |
3/4 |
178 |
117 |
82.5 |
43 |
16 |
4-19 |
241 |
140 |
11.3 |
|
25 |
1 |
203 |
123 |
89 |
51 |
17.5 |
4-19 |
283 |
160 |
16.8 |
|
32 |
11/4 |
216 |
133 |
98.5 |
63 |
19 |
4-19 |
320 |
200 |
21.2 |
|
40 |
11/2 |
229 |
155 |
114.3 |
73 |
20.6 |
4-22.5 |
322 |
200 |
32.6 |
|
50 |
2 |
267 |
165 |
127 |
92 |
22.4 |
8-19 |
399 |
200 |
25 |
|
65 |
21/2 |
292 |
190 |
149.4 |
105 |
25.4 |
8-22.5 |
438 |
250 |
30 |
|
80 |
3 |
318 |
210 |
168.1 |
127 |
28.4 |
8-22.5 |
464 |
280 |
35 |
|
100 |
4 |
356 |
254 |
200.2 |
157 |
31.8 |
8-22.5 |
565 |
350 |
56 |
|
125 |
5 |
400 |
279 |
235 |
186 |
35 |
8-22.5 |
614 |
350 |
96 |
|
150 |
6 |
444 |
318 |
269.7 |
216 |
36.6 |
12-25.4 |
717 |
400 |
120 |
|
200 |
8 |
559 |
381 |
330.2 |
270 |
41.2 |
12-25.4 |
930 |
500 |
212 |
|
250 |
10 |
622 |
444 |
387.4 |
324 |
47.8 |
16-28.5 |
1012 |
550 |
330 |
|
300 |
12 |
711 |
521 |
450.8 |
381 |
50.8 |
16-32 |
1231 |
600 |
472 |
|
350 |
14 |
762 |
584 |
514.4 |
413 |
54 |
20-32 |
1450 |
600 |
715 |
|
400 |
16 |
864 |
648 |
571.5 |
470 |
57.2 |
20-35 |
1645 |
600 |
920 |
