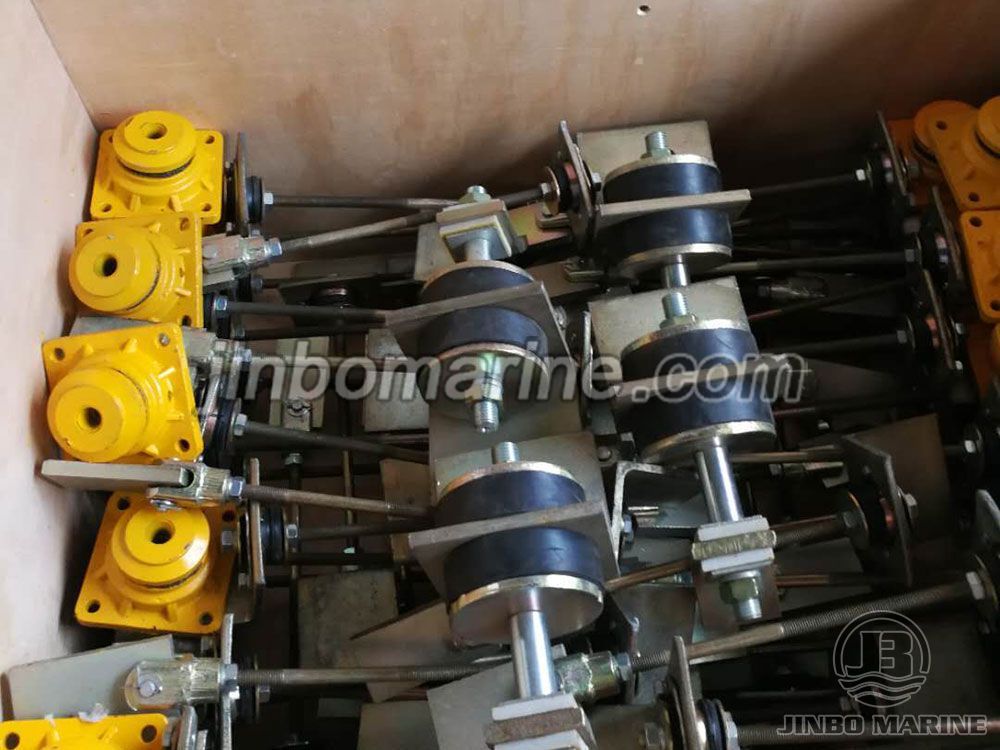

B12 Metal Elastic Support
- Category:Pipe Fitting
- Material:Special rubber
- Standards:MIL-STD-167-I Michanical Vibration Of Ship Equipment
- Packing Details:Export standard packaging.
- Delivery Time:7 to 15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

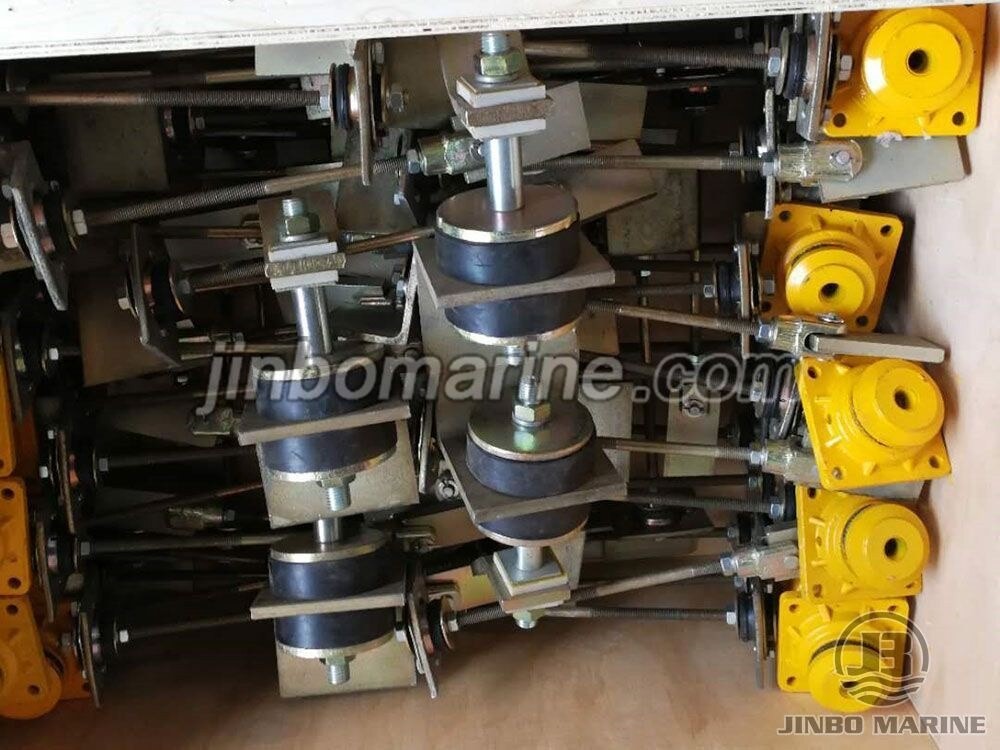

Product Description:
Applicable range: suitable for vertical and horizontal exhaust pipe.
Performance Parameters And Lectotype:
| Type | Rated Vertical Load N(kgf) | Deformation Under Rated Vertical Load(mm) | Natural Frequency(HZ) | Damping Ratio C/Cc | Vibration Test Ref. Standard. |
| A10 |
300-7000 (30-700) |
1.0-5.0 |
15-20 (swing input: Diameter 0.3mm |
0.15~0.20 |
MIL-STD-167-I Michanical Vibration Of Ship Equipment |
| B12 |
500-9000 (50-900) |
0.8-4.0 |
18-25 (swing input: Diameter 0.3mm |
0.15~0.20 | |
| B14 |
2500-70000 (250-7000) |
2.5-5.8 | 0.15~0.20 | ||
| C12 |
500-9000 (50-900) |
1.5-6.5 |
3-18 (swing input: Diameter 0.3mm |
0.15~0.20 | |
| C14 |
2500-70000 (250-7000) |
3.0-6.5 | 0.15~0.20 | ||
| D21 |
500-5000 (50-500) |
1.8-6.0 |
15-23 (swing input: Diameter 0.4mm |
0.15~0.20 | |
| D41 |
2500-30000 (250-3000) |
3.5-6.0 | 0.15~0.20 |
Outline Dimension:

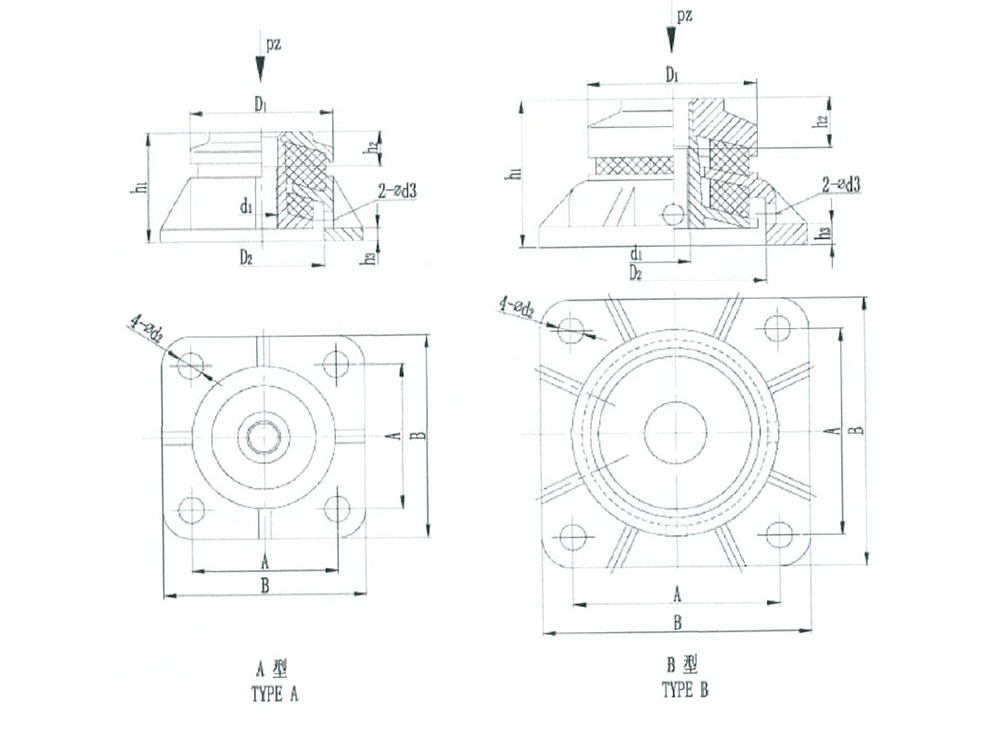

| Type | A | B | D1 | D2 | d1 | d2 | d3 | h1 | h2 | h3 | h4 | Weight(kg) |
| A10 | 70 | 98 | 69 | 60 | 12.5 | 8 | 8 | ~53 | 17 | 10 | - | 0.8 |
| B12 | 100 | 130 | 82 | 90 | 12.5 | 10 | 10 | ~71 | 31 | 13 | - | 1.9 |
| B14 | 170 | 220 | 170 | 188 | 17 | 12 | 12 | ~97 | 55 | 16 | - | 10 |
| C12 | 100 | 130 | 82 | 90 | 12.5 | 10 | 10 | ~100 | 54 | 13 | - | 2.2 |
| C14 | 170 | 220 | 170 | 188 | 17 | 12 | 12 | ~125 | 80 | 16 | - | 13 |
| D21 | 100 | 130 | 82 | 90 | 12.5 | 10 | 10 | ~73 | 90 | 46 | 13 | 2.2 |
| D41 | 170 | 220 | 170 | 188 | 17 | 12 | 12 | ~97 | 112 | 80 | 13 | 13 |
