BB Type JIS B2801 Bow Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

Nominal Size t d B B1 D d1 L Weight(kg)
10 10 12 17 30 25 13 54 0.31
12 12 14 20 35 32 16 63 1.48
14 14 16 24 40 36 18 72 0.67
16 16 18 26 45 40 20 80 0.93
18 18 21 29 53 45 22 95 1.35
20 20 23 31 58 50 25 104 1.93
22 22 26 34 65 55 27 117 2.81
24 24 28 39 70 62 31 126 3.64
26 26 30 41 75 66 33 135 4.38
28 28 32 43 80 70 35 144 5.33
30 30 34 45 85 75 37 153 6.44
32 32 37 48 93 80 39 167 8.17
34 34 39 50 98 85 41 176 10
36 36 42 54 105 90 43 190 11.83
38 38 44 57 110 95 47 198 13.5
40 40 47 60 118 100 49 212 15.23
42 42 49 63 123 105 53 220 17.65
44 44 51 66 128 110 56 230 20.45
46 46 53 68 133 115 58 240 13.08
48 48 55 72 138 120 60 248 25.6
50 50 57 75 143 125 62 257 27.38
55 55 62 83 155 138 67 280 43.5
60 60 69 90 178 150 72 31 59.25
65 65 75 98 188 164 79 338 70.63
70 70 81 105 202 178 85 360 85.04
75 75 87 112 218 192 92 387 107.74
80 80 93 120 232 206 98 414 130.87
85 85 99 128 248 220 104 440 159.5
90 90 104 135 260 232 110 473 190.13

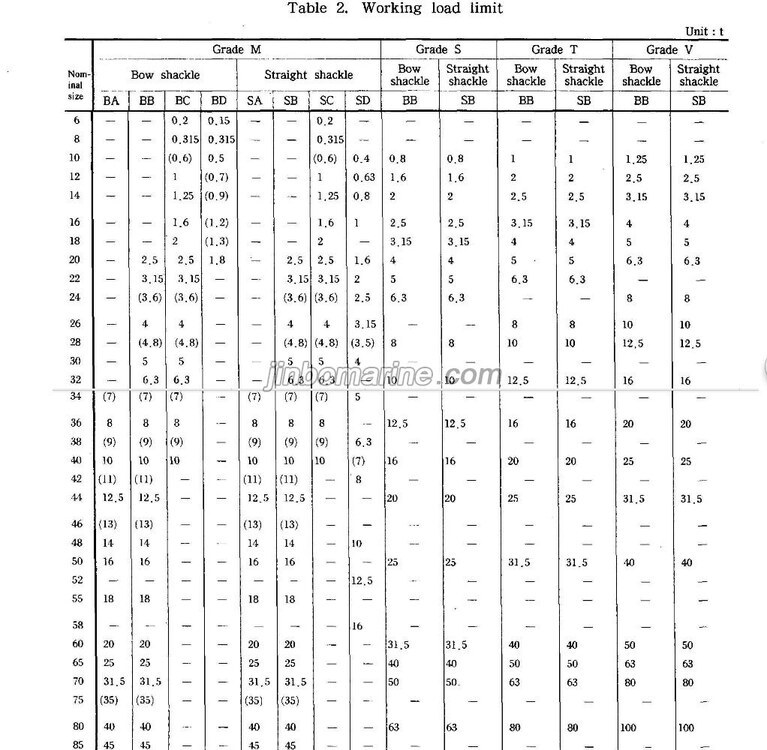

Working Load Limits
