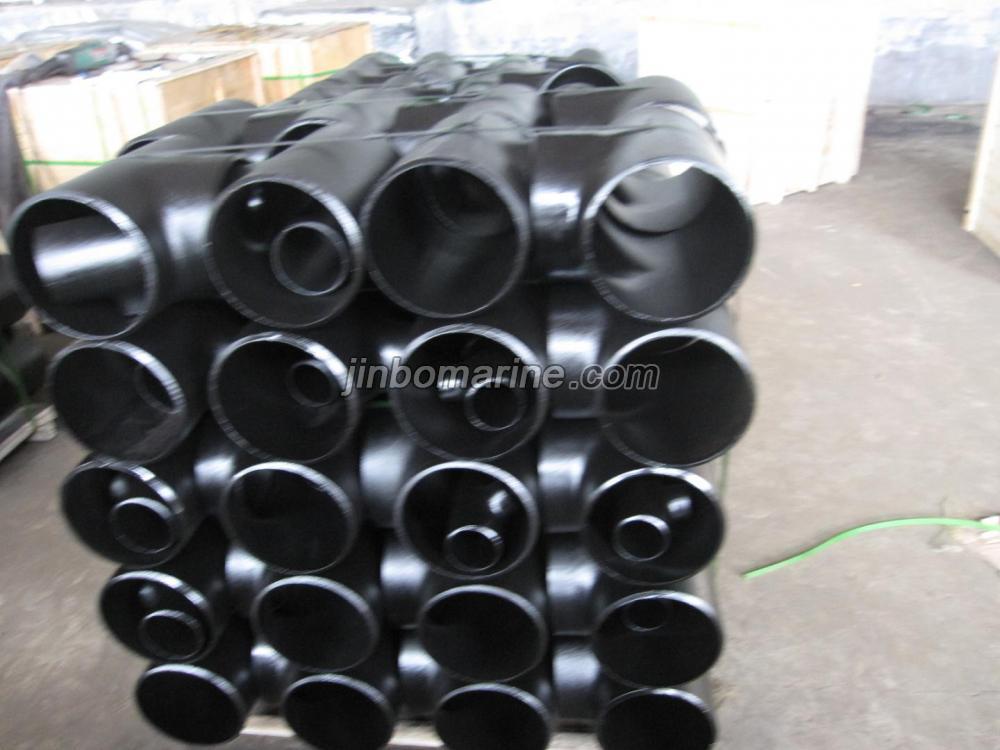

Black Carbon Steel Tee
- Category:Tee
- Material:Carbon steel
- Standards:ASME/ANSI/ASTM,GB,JIS,DIN
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Size:1/2"-48" pipes fittings tee
Material of the corresponding table
ASME/ANSI/ASTM,GB,JIS,DIN
A234-WP11,12Cr1MoV,PA 23,14CrMo44
Specification:
|
ANSI B16.9 Carbon Steel Pipe TEE
|
|||||||
| ND | OD | SCH40 | SCH80 | ND | OD | SCH40 | SCH80 |
| WEIGHT | WEIGHT | WEIGHT | WEIGHT | ||||
| 15×15 | 21.3*21.3 | 0.16 | 0.22 | 125×65 | 141.3×73 | 8.85 | 12.8 |
| 20×15 | 26.7*21.3 | 0.23 | 0.31 | 125×80 | 141.3×88.9 | 9.08 | 13.2 |
| 20×20 | 26.7*26.7 | 0.20 | 0.27 | 125×100 | 141.3×114.3 | 9.53 | 13.8 |
| 25×20 | 33.4*26.7 | 0.42 | 0.57 | 125×125 | 141.3×141.3 | 9.53 | 13.8 |
| 25×25 | 33.4*33.4 | 0.34 | 0.46 | 150*50 | 168.3*60.3 | 14.30 | 22 |
| 32×25 | 42.2*33.4 | 0.68 | 0.92 | 150×65 | 168.3×73 | 14.50 | 22.4 |
| 32×32 | 42.2*42.2 | 0.59 | 0.8 | 150×80 | 168.3×88.9 | 14.80 | 22.7 |
| 40×40 | 48.3×48.3 | 0.91 | 1.26 | 150×100 | 168.3×114.3 | 15.20 | 23.4 |
| 50×20 | 60.3×26.7 | 1.48 | 2.1 | 150×125 | 168.3×141.3 | 15.70 | 24.1 |
| 50×25 | 60.3×33.4 | 1.59 | 2.26 | 150×150 | 168.3×168.3 | 15.40 | 23.8 |
| 50×32 | 60.3×42.2 | 1.63 | 2.31 | 200*75 | 219.1*73 | ||
| 50×40 | 60.3×48.3 | 1.7 | 2.41 | 200*80 | 219.1*89 | ||
| 50×50 | 60.3×60.3 | 1.59 | 2.26 | 200×100 | 219.1×114.3 | 23.50 | 36.4 |
| 65×25 | 73×33.4 | 2.27 | 3.09 | 200×125 | 219.1×141.3 | 24.10 | 37.3 |
| 65×32 | 73×42.2 | 2.38 | 3.24 | 200×150 | 219.1×168.3 | 24.50 | 38 |
| 65×40 | 73×48.3 | 2.5 | 3.4 | 200*200 | 219.1*219.1 | 25.00 | 38.7 |
| 65×50 | 73×60.3 | 2.72 | 3.7 | 250×100 | 273×114.3 | 36.30 | 52.9 |
| 65×65 | 73×73 | 2.72 | 3.7 | 250×125 | 273×141.3 | 36.80 | 59.9 |
| 80×32 | 88.9×42.2 | 2.79 | 3.88 | 250×150 | 273×168.3 | 37.70 | 61.4 |
| 80×40 | 88.9×48.3 | 2.84 | 3.95 | 250×200 | 273×219.1 | 38.40 | 62.5 |
| 80×50 | 88.9×60.3 | 2.95 | 4.1 | 250×250 | 273×273 | 38.60 | 62.9 |
| 80×65 | 88.9×73 | 3.06 | 4.25 | 300×125 | 323.8×141.3 | 53.90 | 91.4 |
| 80×80 | 88.9×88.9 | 3.18 | 4.42 | 300×150 | 323.8×168.3 | 55.90 | 94.7 |
| 100×40 | 114.3×48.3 | 5.06 | 7.19 | 300×200 | 323.8×219.1 | 57.40 | 97.2 |
| 100×50 | 114.3×60.3 | 5.11 | 7.26 | 300×250 | 323.8×273 | 58.40 | 98.9 |
| 100×65 | 114.3×73 | 5.13 | 7.28 | 300×300 | 323.8×323.8 | 58.80 | 99.7 |
| 100×80 | 114.3×88.9 | 5.27 | 7.48 | 350×150 | 355.6×168.3 | 80.20 | 127 |
| 100×100 | 114.3×114.3 | 5.45 | 7.74 | 350×200 | 355.6×219.1 | 82.30 | 131 |
| 125×50 | 141.3×60.3 | 8.63 | 12.5 | 350×250 | 355.6×273 | 83.90 | 133 |
